Type

JQ25-6.3A

JQ25-16

JQ25-25

JQ25-63A

JQ25-63B

JQ25-100

Depth(mm)

max.1.0

max.1.0

max.1.5

max.2.5

max.3

max.4

Punching Width
(mm)

500

1000

1250

2000

2000

2000

Times

180/min

150/min

150/min

70/min

45/min

60/min

Distance(mm)

0-1.15

0-1.2

0-1.2

0-4

0-4

0-4

Length of Mesh
(mm)

max.20

max.25

max.30

max.100

max.200

max.150

Motor

2.2KW

3KW

4KW

11KW

11KW

15KW

Weight

0.95T

2T

3T

10T

10T

12T

Measurement
(mm)

950 x 570 x1780

1800 x 1320 x1550

1940 x 1600 x 2010

2400 x 3500 x 2300

2400 x 3500 x 2300

3600 x 2500 x 3000

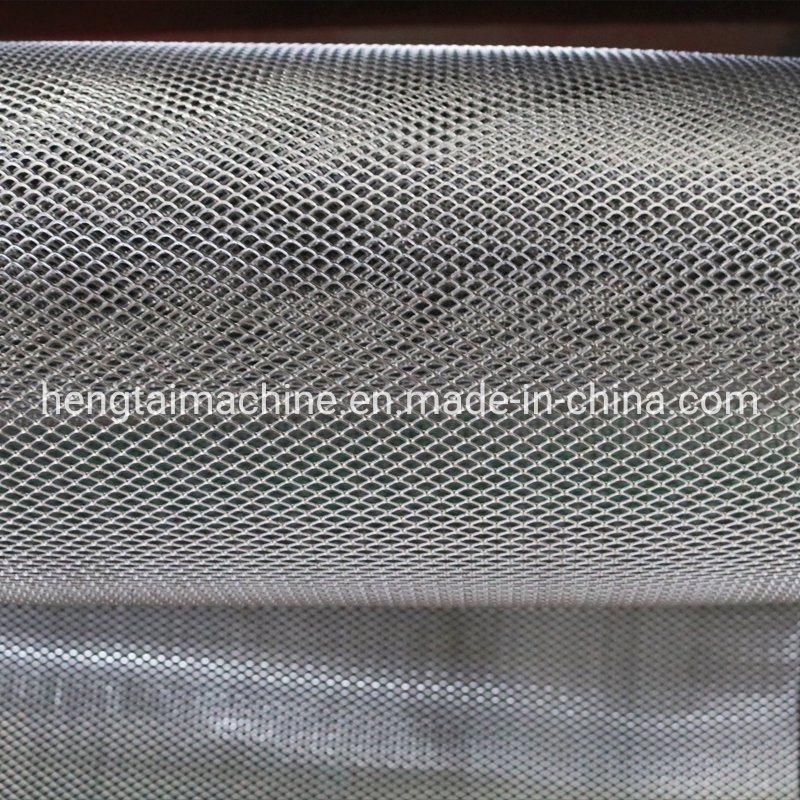

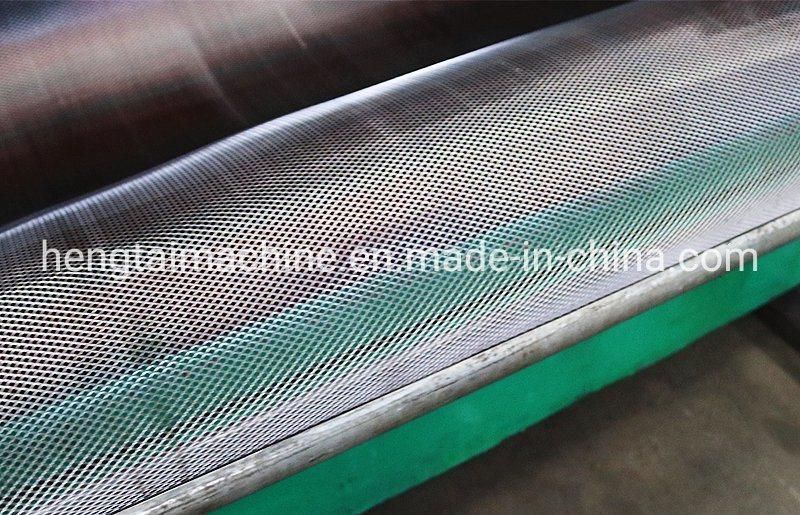

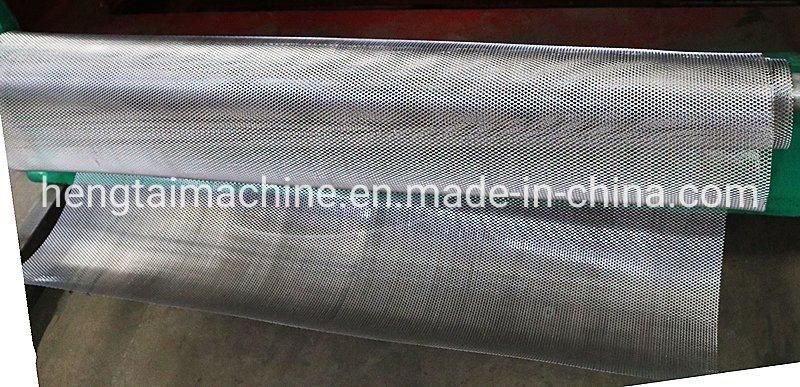

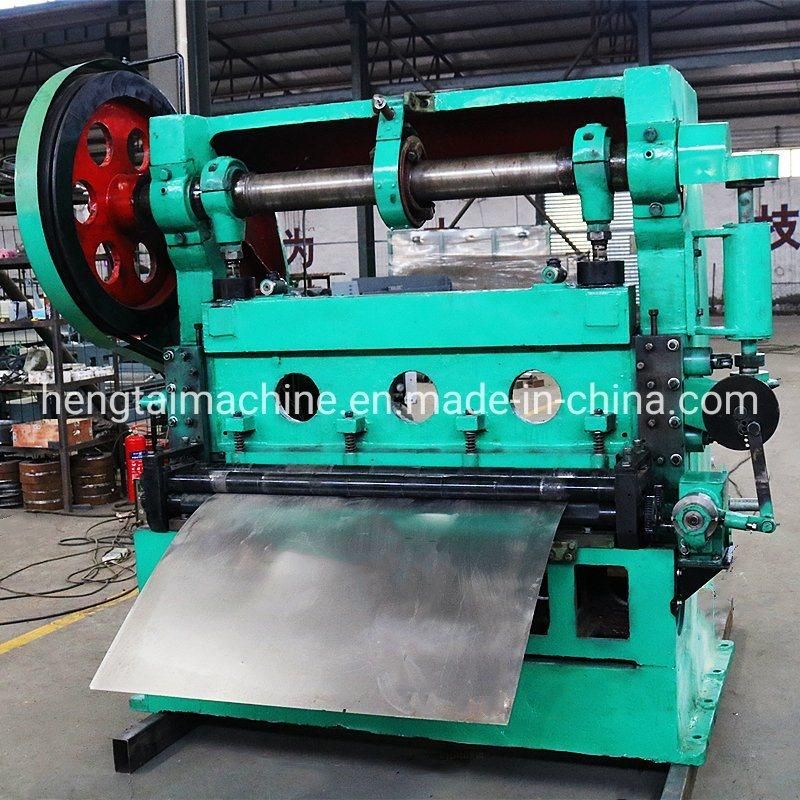

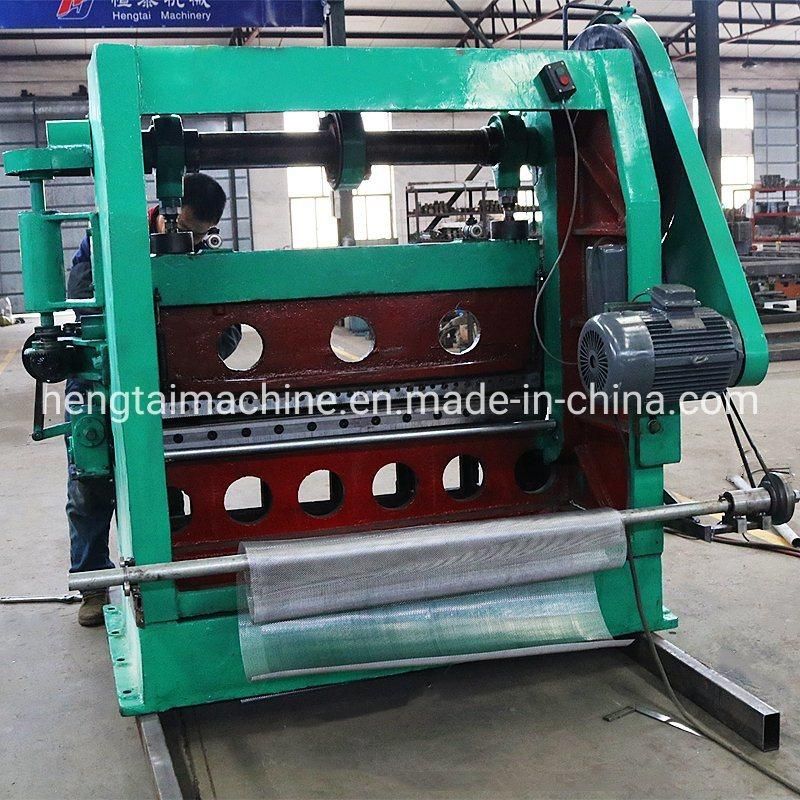

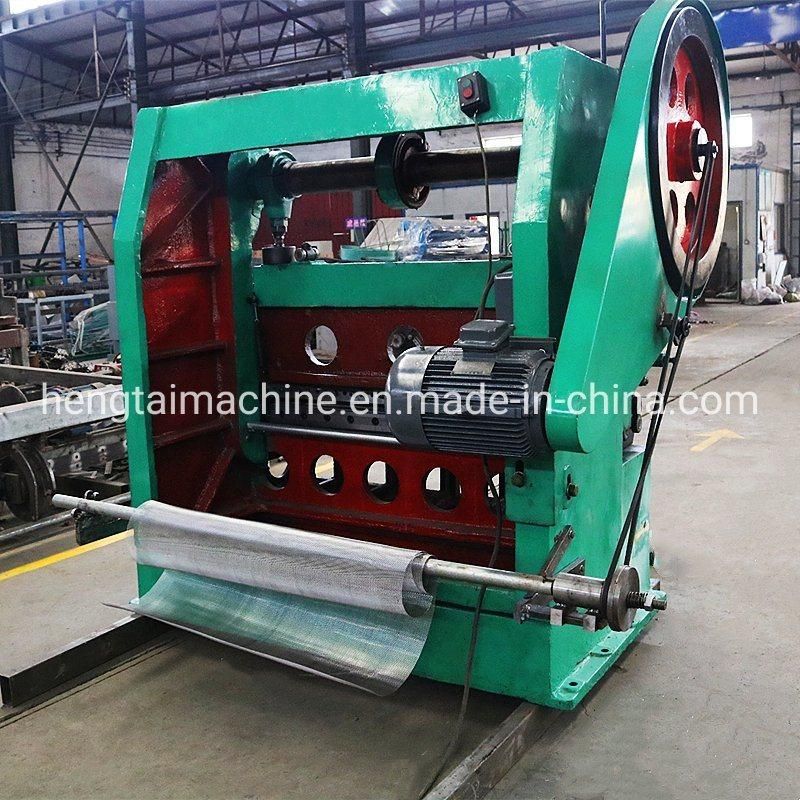

Machine structure and working principle
This machine is mainly composed of frame, crankshaft connecting rod, tool holder, braking system, clutch, side transmission, feeding, electrical control, etc.
When the machine is running, the crankshaft drives the connecting rod, the support plate, and the upper knife slider moves up and down to achieve the purpose of cutting the plate. Under the action of the cam, the ejector rod and the limit ejector rod, the upper knife slide slides left and right in the groove of the support plate, and each time the upper knife slide is punched once, the position is changed, and the feed device is lifted once after each punching. Send the material once, after the work reaches the length several times, lift the pawl to stop feeding and cut it, and the product is finished.









If you need to buy wire mesh making machine for increasing production or you want to start new business for wire mesh making,welcome discussing with us.

Below information is needed for quick quotation

Dear sir/madam, if you are intrested in our machines, you can inquiry me with Product parameters as following, and I will give the  reasonable price.

1. Wire diameter: ________mm ( adjustable )
2. Mesh Size: ________ mm²   ( adjustable )
3. Mesh width: ________ mm ( customized )
4. Industrial voltage : ________380V 50HZ ( customized )
5. Other requirements: .________
