• Warranty：12 Months
• Customized：Customized
• Condition：New
• Product Name：Steel Bar Straightening and Cutting Machine
• Application：Rebar Wire Straightening and Cutting
• Model：4-14
• Diameter Adjustment Range：4-14mm
• Wire Pulling Speed：50m,Min
• Traction Motor Power：2.2kw-6
• Modulation Motor Power：15kw-4
• Cut off Motor Power：5.5kw-4
• Cutting Error：800-9000mm
• Straightening Degree：2 mm,M
• Transport Package：Standard Wooden Case
• Specification：Electric
• Trademark：YUGONG
• Origin：China
• HS Code：8461500090
• Production Capacity：1000 Sets , Month

Basic Info.

Warranty 12 Months Customized Customized Condition New Product Name Steel Bar Straightening and Cutting Machine Application Rebar Wire Straightening and Cutting Model 4-14 Diameter Adjustment Range 4-14mm Wire Pulling Speed 50m/Min Traction Motor Power 2.2kw-6 Modulation Motor Power 15kw-4 Cut off Motor Power 5.5kw-4 Cutting Error 800-9000mm Straightening Degree 2 mm/M Transport Package Standard Wooden Case Specification Electric Trademark YUGONG Origin China HS Code 8461500090 Production Capacity 1000 Sets / Month

Product Description

Rebar straightener and cutter machine wire straighting and cutting machine
Product Introduction

YG4-10 rebar straightening and cutting machine

YG4-12 rebar straightening and cutting machine

YG4-14 rebar straightening and cutting machine

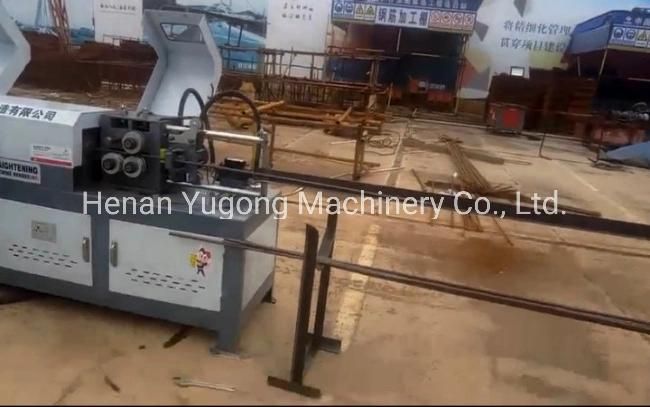

Straightening and cutting machine for steel bars is suitable for the straightening and cutting of wire rod or cold-drawn steel bar in prefabricated component factory, steel bar processing and distribution factory and construction site. After loading the machine for automated operation, the operator can manage multiple machines at the same time, greatly improving the production efficiency, but also hardware, cable and other manufacturers must have special equipment.



Parameters

Model	YG4-10	YG4-10B	YG4-12A	YG4-12B	YG4-14
Power	Electric	Electric	Electric	Electric	Electric
Straighten Motor	7.5KW	7.5KW	9kw	9kw	7.5kw
Cut Motor	-	-	-	-	4kw
Traction Motor	-	-	-	-	3kw
Round Bar	4-10mm	4-10mm	4-12mm	4-12mm	4-14mm
Screwed Bar	4-8mm	4-8mm	4-10mm	4-10mm	4-12mm
Straighten Speed	35-50m/min	35-50m/min	35-50m/min	35-50m/min	35-50m/min
Dimension (mm)	1400*570*900	1500*600*900	1680*630*1050	1900*650*1100	2800*750*1400
Weight	240kg	260kg	320kg	500kg	850kg

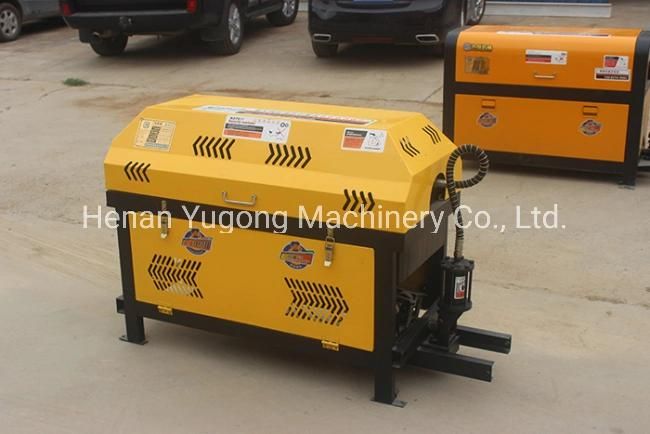

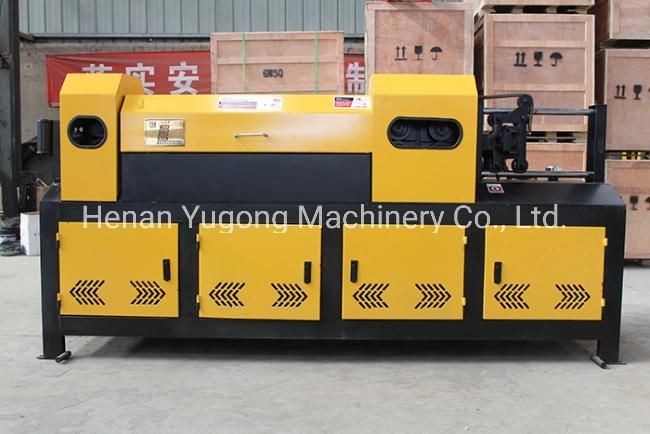

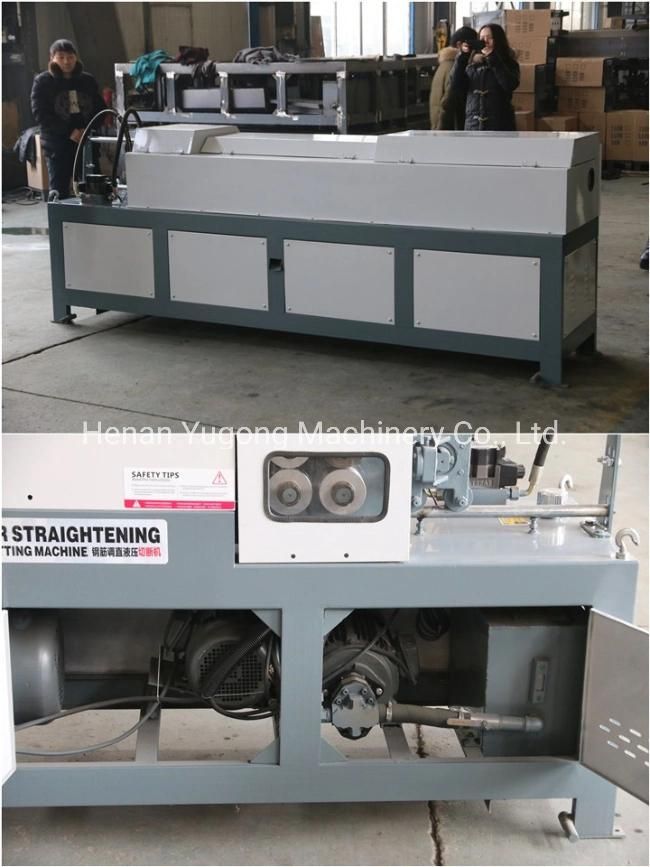

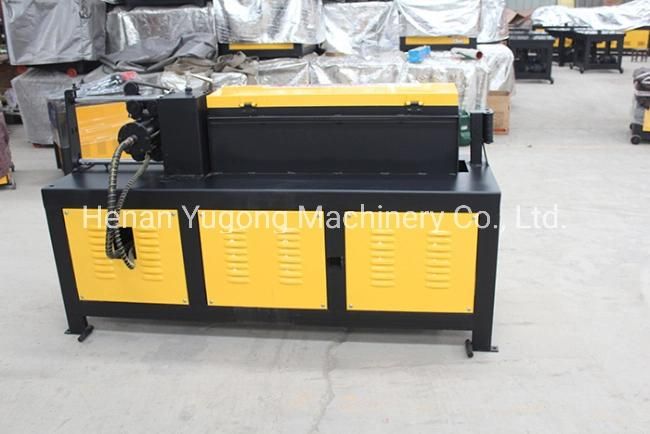

 Product Display

• Microcomputer control, automatic straightening, automatic length, automatically cut off;
• "Fool" type of operation, who can use it that understand the "123" ;

• Multiple batches simultaneously enter the length and number of computer memory;
• Hydraulic cut, more accurate, more quiet;



Working

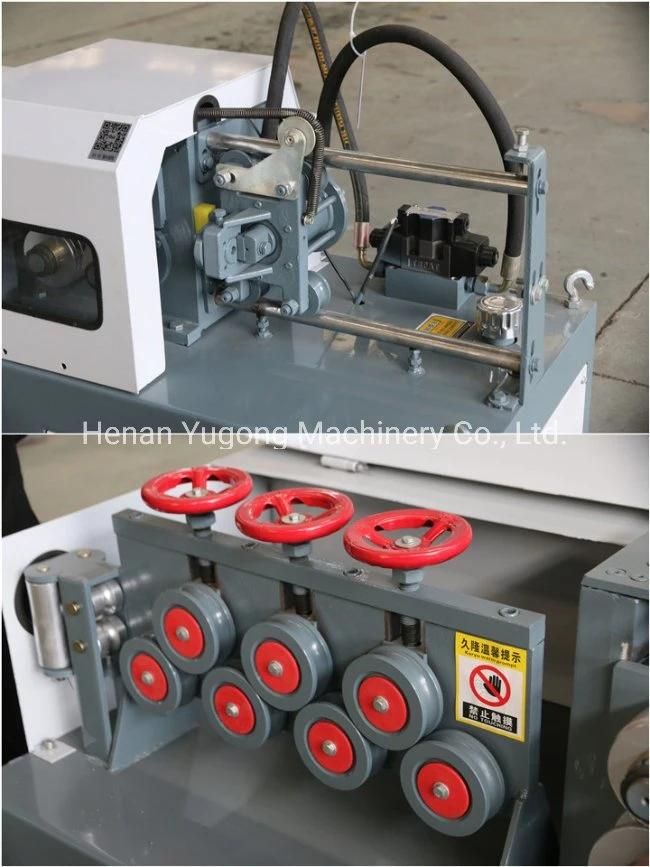

Steel Straightening Cutter machine is one of the steel processing machines, for straightening and cutting off the diameter of 4-14mm for the steel, and rust. By the straightening cylinder, holding the body, cut off institutions, reinforced fixed frame, rack and drive components.
