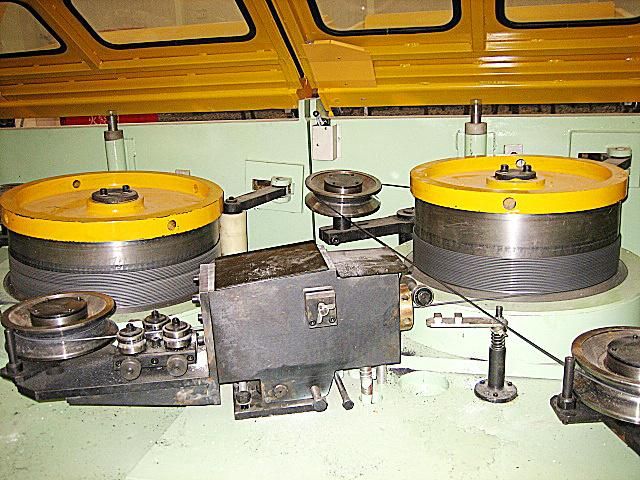

High Speed Straight Line Wire Drawing Machine Good Price
Hangzhou Suntech Machinery Co., Ltd.- Type：LZ Straight-Line Metal Drawing Machine
- Usage：Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
- Metal Material：Steel
- Outlet Diameter：0.5-4.5mm
- Max.Inlet Wire Dia.：6.5mm
- Block Dia.：560mm
Base Info
- Max. Number of Block：7
- Certification：ISO
- Condition：New
- Material：Low Carbon Steel Wire
- Quantity of Block：According to Requirements
- Transport Package：Wooden Pallet
- Trademark：SUNTECHMACH
- Origin：China
- Production Capacity：100 Set,Year
Description
Model (Block diameter)
300
350
400
450
500
560
600
700
800
900
1200
Strength of inlet wire (MPa)
≤1250
Number of Block
2~11
2~11
2~11
2~12
2~12
2~12
2~12
2~9
2~9
2~9
2~9
Maximum diameter of inlet wire (mm)
2.8
3.5
4.2
5
5.5
6.5
8
10
12.7
14
16
Minimum diameter of outlet wire (mm)
0.5
0.6
0.75
1
1.2
1.4
1.6
2.2
2.6
3
5
Highest drawing speed (m/s)
~25
~20
~20
~16
~15
~15
~12
~12
~8
~7
~6
Drawing power (kw)
7.5~18.5
11~22
11~30
15~37
22~45
22~55
30~75
45~90
55~110
90~132
110~160
