• Model NO.：LJT750-24,36-S
• Machine Speed：0~30m,Min
• Length Error：<+-1.0%
• Single Thickness Accuracy：+-1.0um
• Transport Package：Standard Exportting Packing
• Trademark：GMK
• Origin：China
• HS Code：8479899990
• Production Capacity：3unit,Month

Basic Info.

Model NO. LJT750-24/36-S Machine Speed 0~30m/Min Length Error <+-1.0% Single Thickness Accuracy +-1.0um Transport Package Standard Exportting Packing Trademark GMK Origin China HS Code 8479899990 Production Capacity 3unit/Month

Product Description

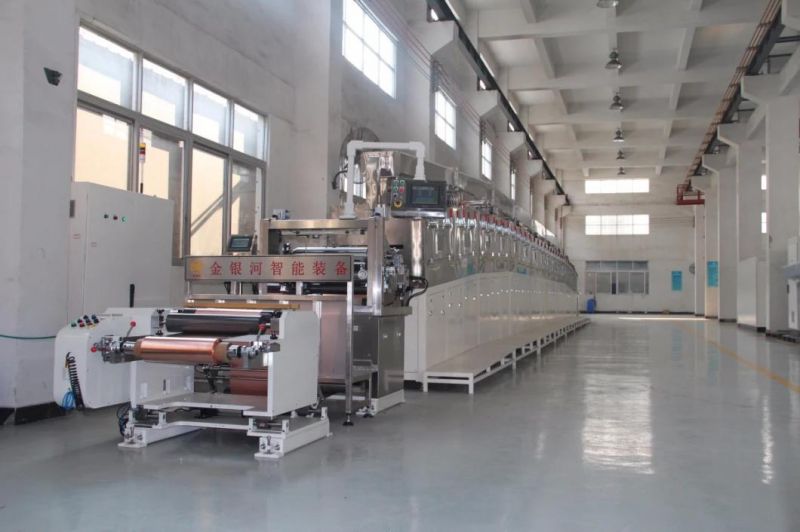

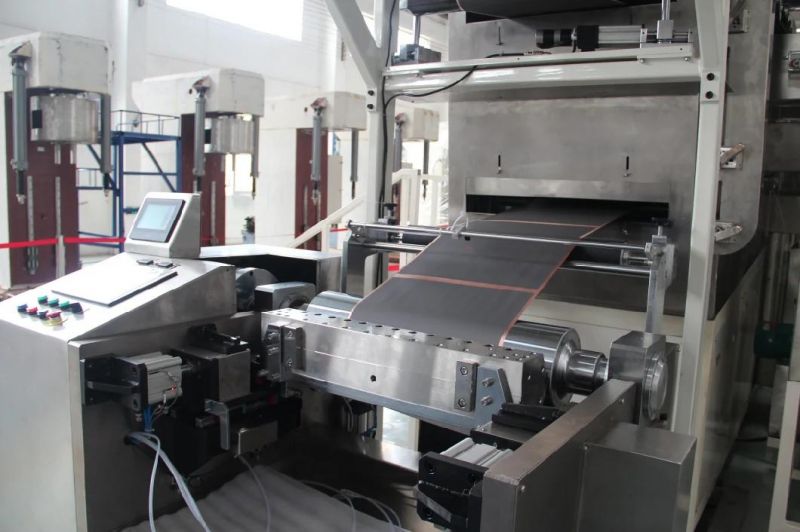

Lithium Battery Slurry Slot Die Single/Double Surfact Coating Machine Equipment


Feature and advantage:

1.Enabling continuous coating, gap coating, stripe coating, the rectangle shaped coating;

2.Coater can speed up to 25m/min;

3.The dry thickness accuracy of the coater can be controlled within ±1.0µm/single surface;

4.Oven using floating structure, evenly air flow, high drying efficiency;

5.Heating modes including electric heating, steam heating, oil heating, gas heating etc.
Temperature control precision can reach ± 1 ºC , each section of the cabinet have ex-proof setting. It is safe and reliable, energy saving and environmental protection

6.The machine can be equipped with online areal density or thickness tester, real-time monitoring the changes of areal density or thickness during coating process.
The feeding system can be closed-loop adjusted automatically through PLC controlsystem to ensure consistency of the coating layer. All data can be recorded;

7.The coater length plus the length of the blank can be controlled within the precision ± 1mm,positive and negative face counterpoint error ± 0.5mm.Provided with a rewind function,fault alarm and fault display function ,operation interlock,emergency stop functionand the communication function.


Technical parameter:


Type    Item	LJT600-24/36	LJT750-24/36	LJT750-24/36-S
Coating width	Max:500mm	Max:650mm	Max:650mm
Maximum coating speed	25m/min	25m/min	25m/min
Machine speed	0~30m/min	0~30m/min	0~30m/min
Single thickness accuracy	±1.0µm	±1.0µm	±1.0µm
The areal density the error	≤ ±1.0%	≤ ±1.0%	≤ ±1.0%
Minimum gap	8mm Related to the characteristics of the coating speed and slurry	8mm Related to the characteristics of the coating speed and slurry	8mm Related tot he characteristics of the coating speed and slurry
Positive and negative coated overlay error	±0.5mm	±0.5mm	±0.5mm
6mm thickness error within the coater head and tail	±5.0µm	±5.0µm	±5.0µm
Length error	±0.5mm	±0.5mm	±0.5mm
Orderly winding error	±0.5mm	±0.5mm	±0.5mm
Retractable roll diameter	Max:φ550mm	Max:φ550mm	Max:φ550mm
Extrusion head die lip straightness	2µm/m	2µm/m	2µm/m
Back steel roller	φ200mm Circular Run ≤ 1.5µm	φ200mm Circular Run ≤ 1.5µm	φ200mm Circular Run ≤ 1.5µm
Air pressure	0.5~0.8MPa	0.5~0.8MPa	0.5~0.8MPa
Power	190Kw/230Kw	190Kw/230Kw	360Kw/490Kw
Machine Dimensions(LxWxH)	31mx3.0mx2.8m(drying box 24m)                        43mx3.0mx2.8m(drying box 36m)	31mx3.5mx2.8m(drying box 24m)    43mx3.5mx2.8m(drying box 36m)	35mx3.5mx3.6m(drying box 24m)                                    47mx3.5mx3.6m(drying box 36m)

GMK can be customized according to customer demand for non-standard equipment
If you are not certain of which type to choose, please contact us and our professional sales engineers will recommend for you.


Technology innovation service:
We keep on technology innovation to meet the customers' demand and can provide technology improvement program.
If you are planning to research and manufacture Li-ion battery, contact us, we provide one stop solution for you.
