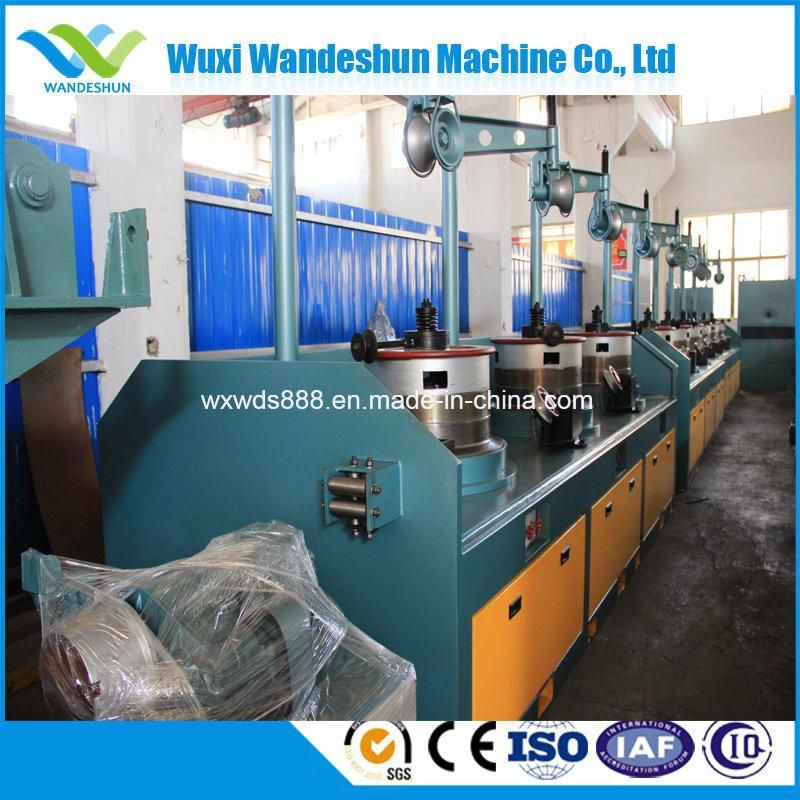

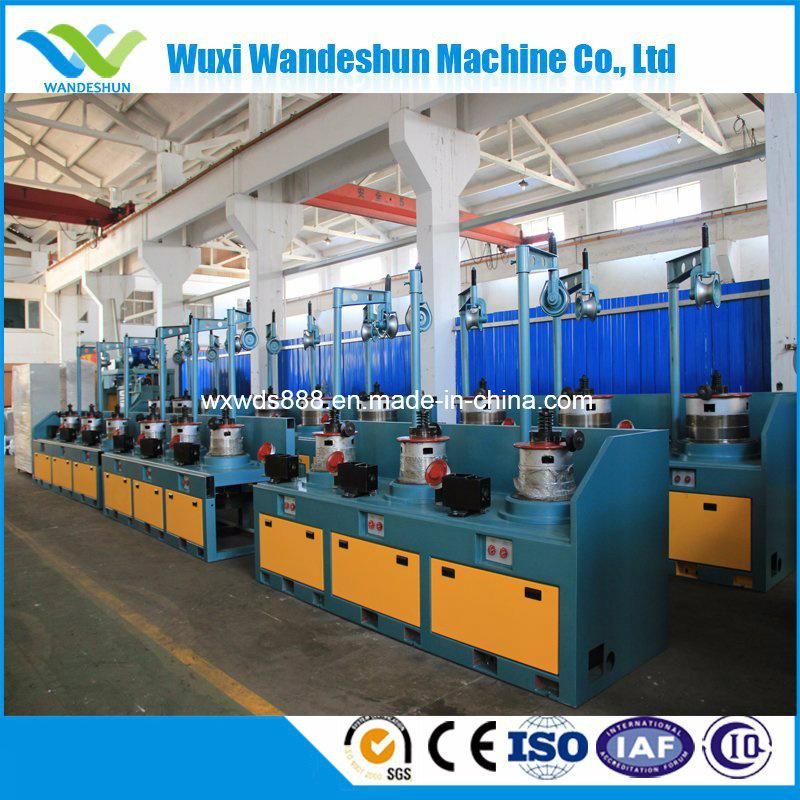

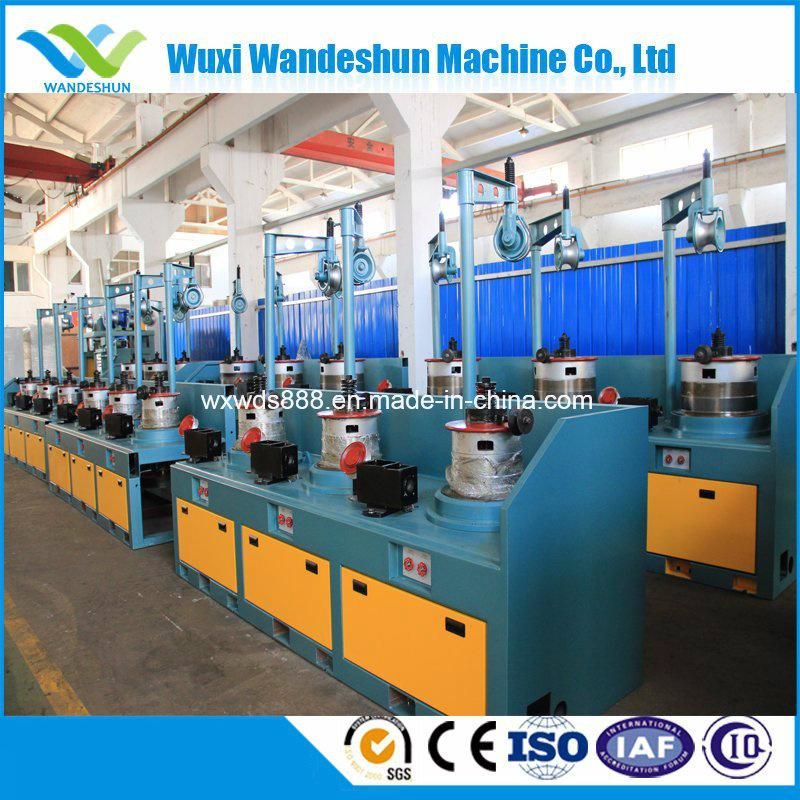

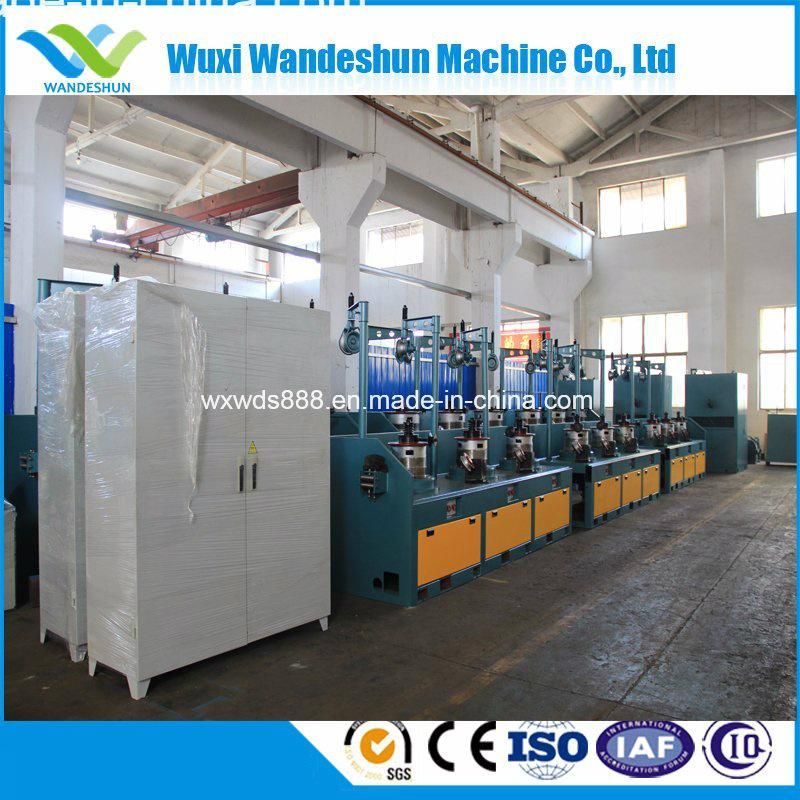

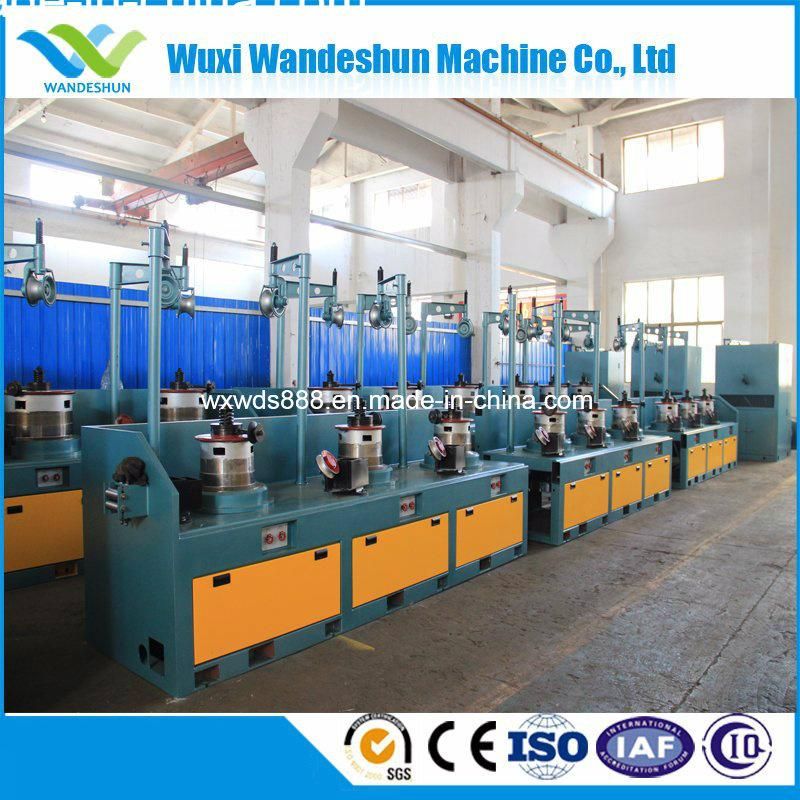

Oto Pulley Nail Making Wire Drawing Machine Lw7/560
Wuxi Wandeshun Machine Co., Ltd.- Type：LW Pulley Type Metal Drawing Machine
- Usage：Wire
- Metal Material：Steel
- Outlet Diameter：0.5-4.5mm
- Max.Inlet Wire Dia.：6.5mm
- Block Dia.：560mm
Base Info
- Model NO.：LW-8-560
- Max. Number of Block：12
- Certification：ISO
- Condition：New
- Power(W)：18.5kw
- After-Sales Service：Engineers Available
- Quality：Korea Quality Europe Quality
- Main Market：Asia, Afria, South America
- Voltage：380,415,440,220
- Warranty：One Year
- Dimension(L*W*H)：as Design
- Drawing Material：High Carbon, Low Carbon and So on
- Transport Package：PE
- Specification：weight 8 ton
- Trademark：wandeshun
- Origin：China
- HS Code：8463102000
- Production Capacity：1000 Set One Year
Description
SPECIFICATIONS FOR OTO/PULLEY WIRE DRAWING MACHINEITEMS UNIT LW1-9/650(700) LW1-9/560(600) LW1-9/450(400) Capstan diameter mm 650, 700 560, 600 450, 400 Inlet wire diameter mm Φ8.0-Φ6.5 Φ7.0-Φ5.5 Φ3.0-Φ2.5 Min outlet wire diameter mm Φ2.0 Φ1.6 Φ0.7 Inlet wire tensile strength Mpa 400-1200 400-1200 400-1200 Drawing speed m/min <=240 <=360 <=720 Drawing dies time 1-9 1-9 1-9 Total reduction rate % <=90.53 <=91.52 <=92.16 Motor power Kw 37-18.5 30-18.5 15-7.5
