• Model NO.：JM85
• Advantage：Work Flexible
• Condition：New
• Dimension：4000*900*1400mm
• Weight：1500kgs
• Motor Power：4 Kw
• Hydraulic Power：2.2kw
• Volage：220V,60Hz,3pH
• Material Width：136mm
• Effective Width：85mm
• Forming Steps：14 Steps
• Forming Speed：8-12m,Min
• Material Thickness：0.6-0.8mm
• Transport Package：Standard Export Package
• Specification：SGS
• Trademark：XHH
• Origin：Xiamen of China
• HS Code：84552290
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. JM85 Advantage Work Flexible Condition New Dimension 4000*900*1400mm Weight 1500kgs Motor Power 4 Kw Hydraulic Power 2.2kw Volage 220V/60Hz/3pH Material Width 136mm Effective Width 85mm Forming Steps 14 Steps Forming Speed 8-12m/Min Material Thickness 0.6-0.8mm Transport Package Standard Export Package Specification SGS Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 20 Sets/Month

Product Description

Specification

The detail information of JM85 Metal Rolling Shutter Door Foming Machine  are as follows:

Main Techinal Date:

1.	Size	4000*900*1400mm
2.	Weight	1500 KGS
3.	Motor Power	4 KW
4.	Hydraulic Power	2.2KW
5.	Volage	220V/60HZ/3PH
6.	Effective Width	85mm
7.	Material Width	136mm
8.	Forming Steps	14 steps
9.	Forming Speed	8-12m/min
10.	Thickness for common use and test	0.8mm
11.	Tolerance	± 2mm

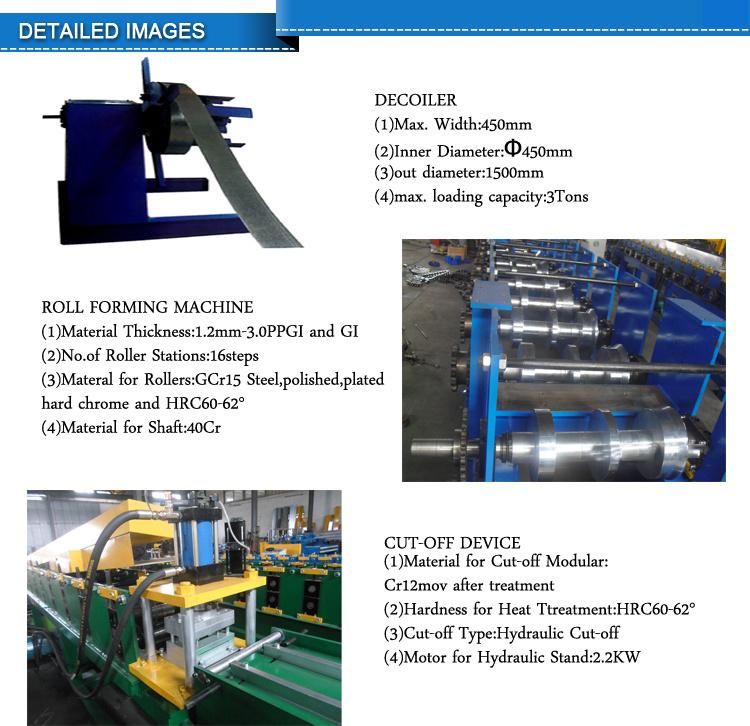

Main Accessories:
(1). Main Forming Machine;
(2). 3 Tons Manual Uncoiler;
(3). Hydraulic System;

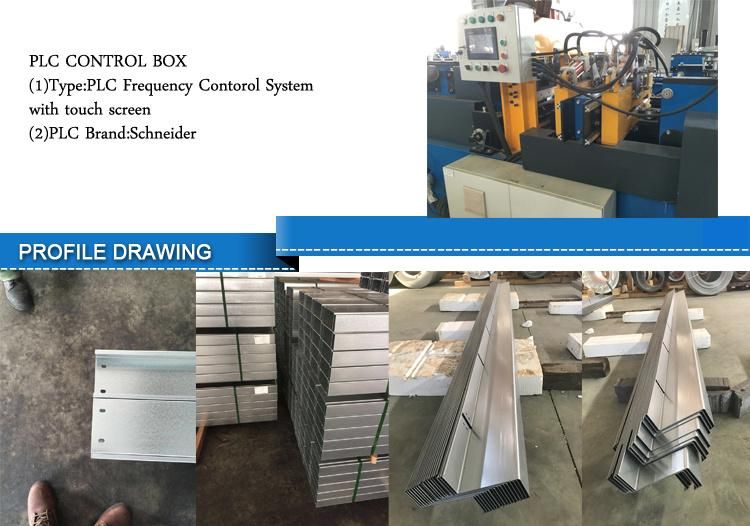

(4). PLC Computer Controlling System With Touch Screen;
(5). Hydraulic Forming Cutter;
(6). Run Out Table (3 sets);
(7). Tools;
(8). Operation Manual.
