Vertical Coil Wire Rod Breakdown Drawing Machine

Hangzhou Suntech Machinery Co., Ltd.
  • Type：Headstand Metal Drawing Machine
  • Usage：Wire
  • Metal Material：Steel
  • Outlet Diameter：<20mm
  • Max.Inlet Wire Dia.：22mm
  • Block Dia.：1200mm

Base Info

  • Model NO.：HD-1500
  • Max. Number of Block：1
  • Certification：ISO
  • Condition：New
  • Transport Package：Pallet
  • Specification：HD1200
  • Trademark：SUNTECH
  • Origin：China
  • HS Code：8463300000
  • Production Capacity：100 Sets,Year

Description

ModelunitLDD-1400LDD-1200LDD-1000LDD-700LDD-600Diameter of capstanmm140012001000800600Max. diameter of inlet wiremm4030-2520-1616-812-6.5Drawing speedm/min0-280-480-600-800-120Average  compression ratio%25-1025-1025-1030-2530Motor powerKW11075-5555-4545-3730-22Take-up weightKG2300230023001000-2000800-1500

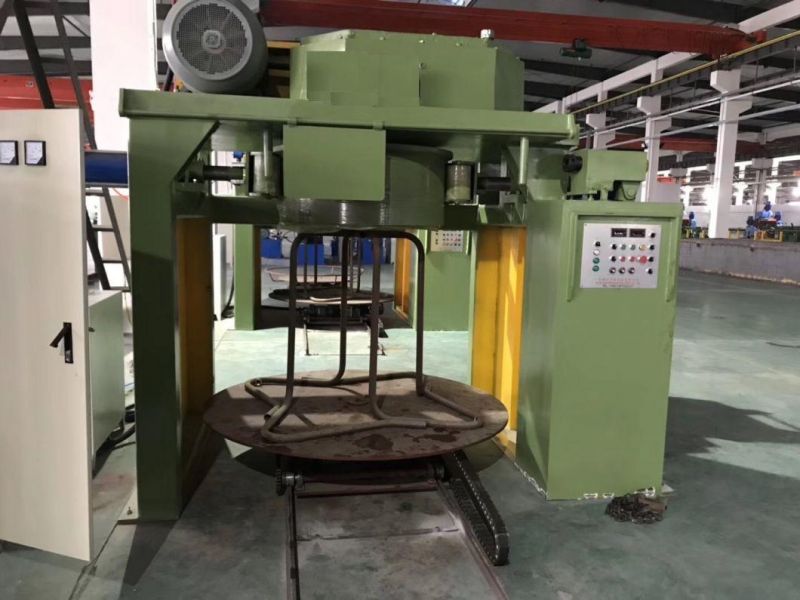

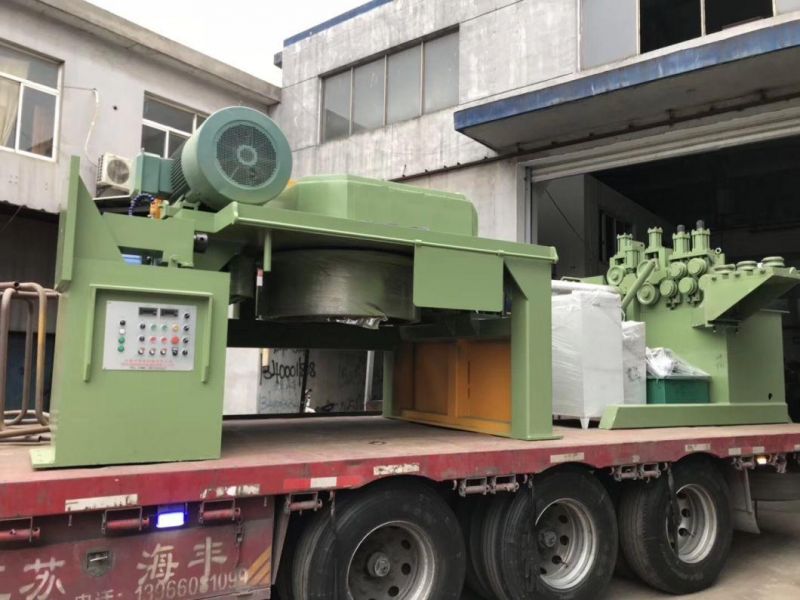

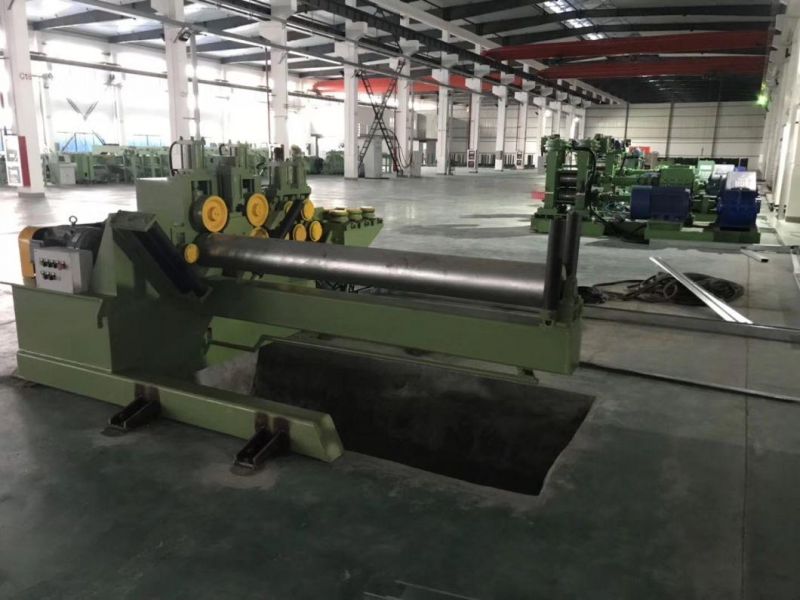

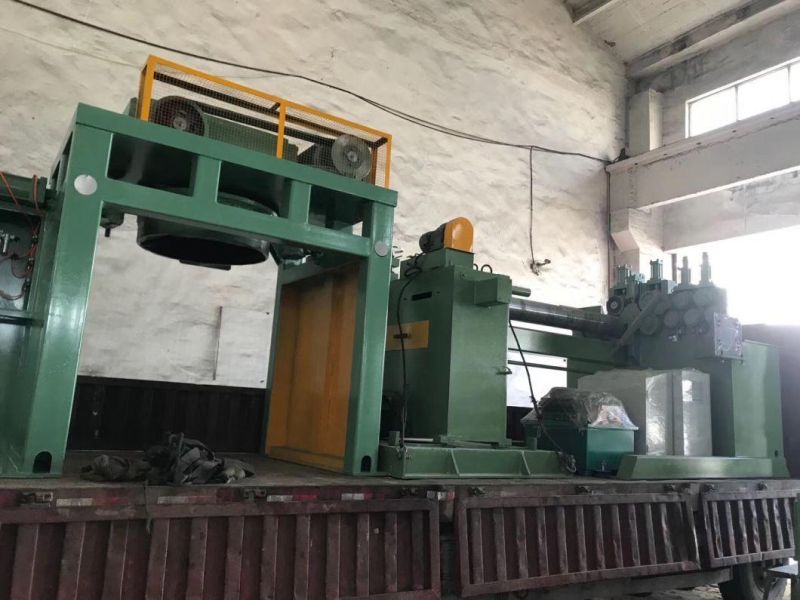

4. Photos
Vertical Coil Wire Rod Breakdown Drawing Machine
Vertical Coil Wire Rod Breakdown Drawing Machine
Vertical Coil Wire Rod Breakdown Drawing Machine
Vertical Coil Wire Rod Breakdown Drawing Machine

Vertical Coil Wire Rod Breakdown Drawing MachineVertical Coil Wire Rod Breakdown Drawing MachineVertical Coil Wire Rod Breakdown Drawing MachineVertical Coil Wire Rod Breakdown Drawing MachineVertical Coil Wire Rod Breakdown Drawing MachineVertical Coil Wire Rod Breakdown Drawing MachineVertical Coil Wire Rod Breakdown Drawing Machine
