• Model NO.：YX65-400
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Motor Power：7.5kw*2
• Hydraulic Power：2.2kw
• Voltage：380V,50Hz,3pH
• Forming Steps：13
• Working Speed：10-14m,Min
• Effective Width：400mm
• Material Width：575mm
• Thickness for Aluminum：0.4-1.0mm
• Thickness for Steel：0.5-0.8mm
• Tolerance：±2mm
• Transport Package：Standard Package for Export
• Specification：SGS
• Trademark：XHH
• Origin：Xiamen of China
• HS Code：8455229090
• Production Capacity：10-15 Sets,Month

Basic Info.

Model NO. YX65-400 Customized Customized Advantage Work Flexible Condition New Motor Power 7.5kw*2 Hydraulic Power 2.2kw Voltage 380V/50Hz/3pH Forming Steps 13 Working Speed 10-14m/Min Effective Width 400mm Material Width 575mm Thickness for Aluminum 0.4-1.0mm Thickness for Steel 0.5-0.8mm Tolerance ±2mm Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen of China HS Code 8455229090 Production Capacity 10-15 Sets/Month

Product Description

Main Accessories:

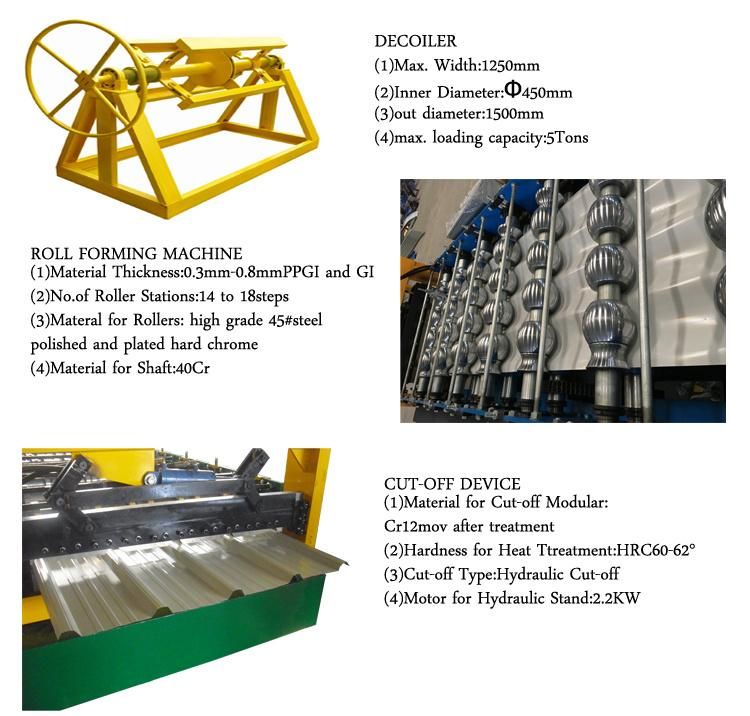

(1) Main standing seam roof panel roll forming machine ;
(2) 5 Tons Manual Uncoiler for Coil Width 1220mm;
(3) Hydraulic System;

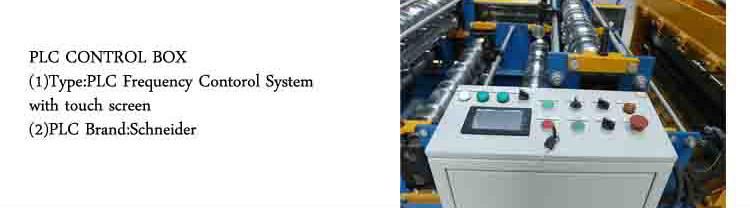

(4) PLC Computer Controlling System With Touch Screen
   ( Brand: Delta from Taiwan );
(5) Hydraulic Forming Cutter( 2 sets, one set for YX65-400, another set for YX65-500 );
(6) Device for making tapered standing seam roofing;
(7) Protective Cover;
(8) Auto Seamer(2 sets);
(9) Hand Seamer( 2 sets);
(10) Run out tables(3 PCS);
(11) Tools;
(12) Operation Manual.

Main Technic Data

Size	5800*1800*1500mm
Weight	6500KGS
Hydraulic Motor Power	2.2KW
Motor Power	7.5KW*2
Forming Steps	13steps
Processing Speed	10-14m/min
Voltage	380V/50HZ/3PH
Height of Roofing	65mm
Effective Width	400mm
Feeding Material Width	575mm
Thickness for Aluminum Sheet	0.4-1.0mm
Material of principal axis	high grade 45# forged steel
Material of roller	high grade 45# forged steel,Plated Hard chrome on the surface of rollers, and polished
Material of blade	Cr12 mould steel with quenched treatment 60-62°C
Material for frame of machine	Fine welded structural steel
Material for producing roofing	normal Aluminum sheets
