• Model NO.：non standard
• Trademark：Singring
• Origin：China
• Production Capacity：15 Units,Year

Basic Info.

Model NO. non standard Trademark Singring Origin China Production Capacity 15 Units/Year

Product Description

Steel Wire Cold Galvanizing Furnace Machine Manufacturer

Company

1. Company location: Wuxi city; FOB port: Shanghai

2. ISO9001:2008

3. Participate actively in international competition

4. Experience: more than 20 years

5. Professional technology discussion and warm customer service

Specifications:

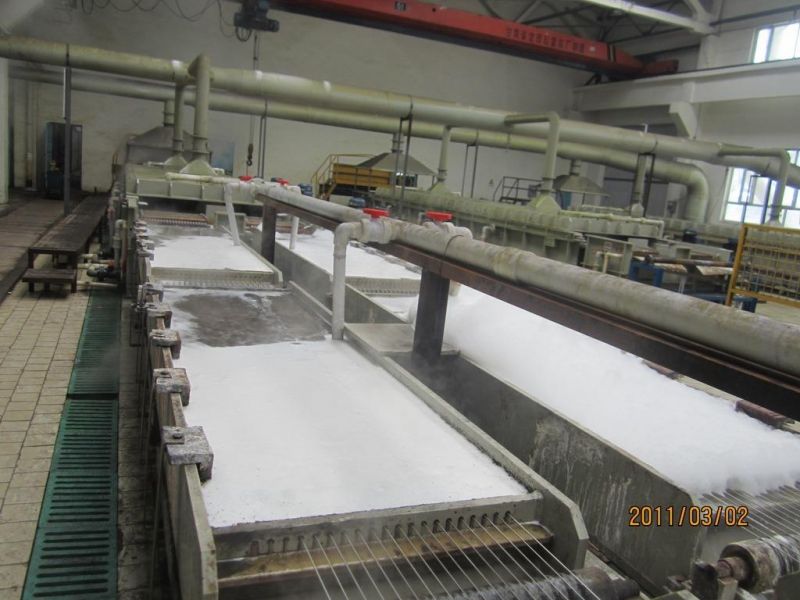

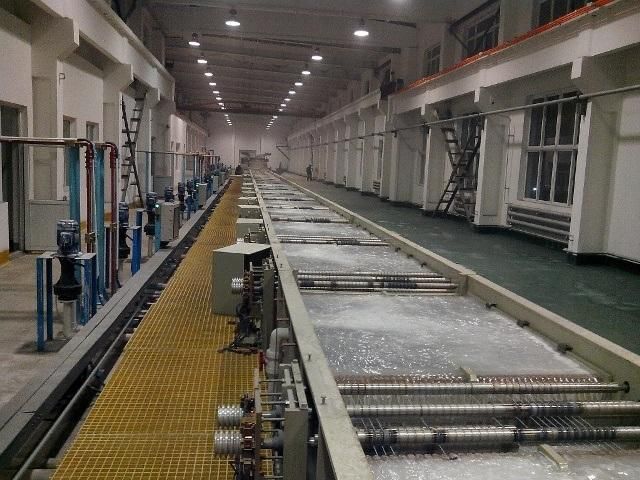

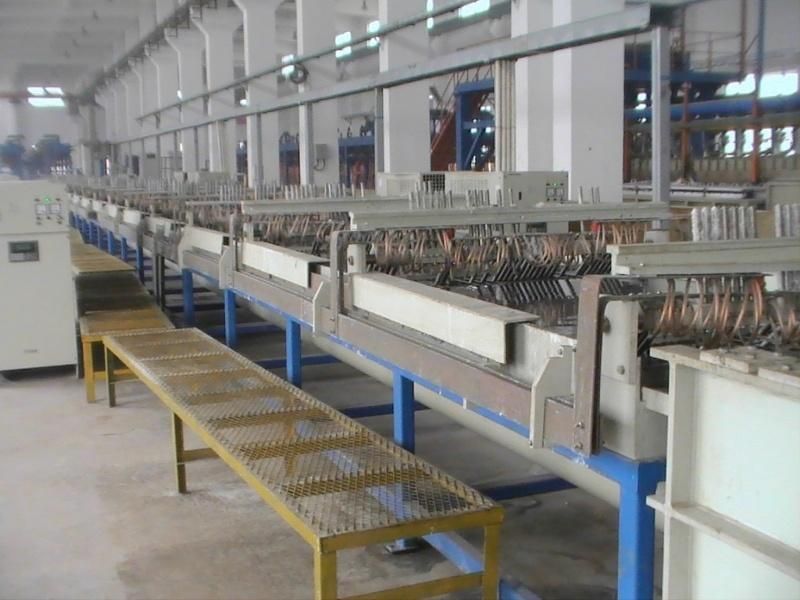

   • Main processing: Pay-off--->Pickling bath --->water washing bath--->electro galvanizing bath--->water washing bath--->hot water bath--->drying--->take-up

  • Cold/electro galvanziing

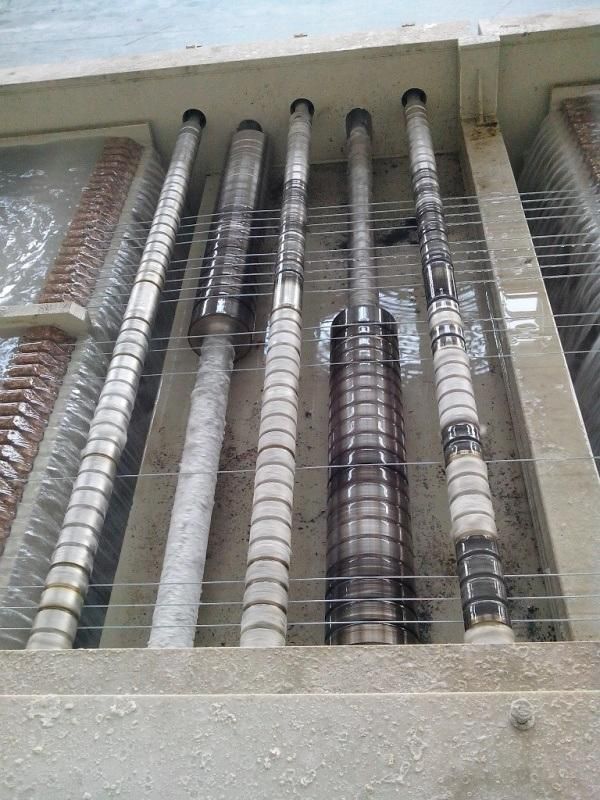

  • Zinc solution is recycled with overflow, anode is titanium polar plate, cathode is the press rollers between working baths

• Eqipped with solution recycling and filtering device, in time filtering to make sure solution clean

• Equipped with PH aotomatic detecting device and automatic adding acid calulation device, to make sure keep a relatively constant PH value

• Equipped with solution heat exchanger, to make sure solution keep a relatively constant temperature

• Automatic level control

• Constant voltage or constant current control, site center control for general lines, can start, stop or adjust separately for each rectifier

• Equipped with current sensor, can real-time monitor each cathode roller

• Main control instrument: international famous brand, system running is stable, safe and reliable

• Humanized design and safe function design, to achieve convenient site operation and maintenance.

• Low ordinary maintenance cost





Our Services

 • Whole plant or workshop arrangement advise

 • Machines installation and commissioning

 •Train the worker how to operate the production line,and technoly and process trainging

 • Documents include: Foundation drawings, machine drawings, electrical drawings; Machine list, spare parts list; Machine operating manual(with pictures), detailed traing manual. (the above would be booked as a delivery book, electric edition available)

Exhibition
