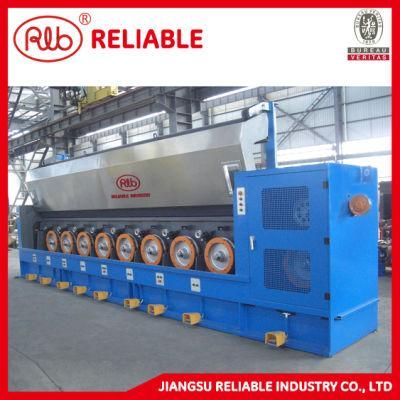

Reduction Adjustable Copper Rod Breakdown Machine
JIANGSU RELIABLE INDUSTRY CO., LTD.- Type:Horizontal Metal Drawing Machine
- Usage:Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
- Metal Material:Copper, Aluminum, Steel, Stainless Steel
- Outlet Diameter:0.5-4.5mm
- Max.Inlet Wire Dia.:9.5mm
- Block Dia.:450mm
Base Info
- Max. Number of Block:13
- Certification:ISO
- Condition:New
- Inlet Dia:9.5mm or 2*9.5mm
- Wires:1 or 2
- Outlet Dia:1.6-4.5mm
- Max. Speed:30m,S
- Max Drawing Pass:13
- Installed Capacity:300-600kVA
- Overall Dimension:22*6*5-24*10*5
- Transport Package:Standard Wooden Package or Customized
- Specification:Customized
- Trademark:Reliable
- Origin:China
Description
Drive Mode
Model
Inlet Dia
(Mm)
Wires
Outlet Dia
(Mm)
Max.Speed
(M/S)
Max Drawing Pass
Capstan Dia(Mm)
Installed Capacity
(Kva)
Take-Up Type(Optional)
Shunt Drive
LWHD-450/9
φ8
1
Φ2.1-4.2
25
9
φ450
400
1:630 Single bobbin take-up
2:630 Dual bobbin take-up
3:800 Single bobbin take-up
4:800 Dual bobbin take-up
5:820 Vertical pay-off
6: Or above combination
LWHD-450/11
φ8
1
Φ1.7-4.2
28
11
φ450
450
LWHD-450/13
φ8
1
φ1.2-φ4.2
30
13
φ450
500
LWHD-450/9(2)
2xφ8
2
2xφ2.05-3.2
25
9
φ450
900
Linear Single Motor Drive
LHD-450/9
φ8
1
Φ2.1-4.2
25
9
φ450
400
LHD-450/11
φ8
1
Φ1.7-4.2
28
11
φ450
450
LHD-450/13
φ8
1
φ1.2-φ4.2
30
13
φ450
500
LHD-450/9(2)
2xφ8
2
2xφ2.05-3.2
25
9
φ450
900

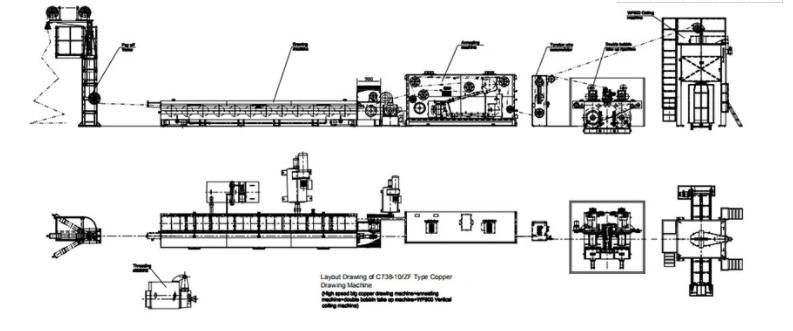

4.Layout:
![Reduction Adjustable Copper Rod Breakdown Machine](http://www.077592.com/uploads/image/2021/58/7f/98/50/684b8c9769a391b9dc45e05bd1b0c1c6.jpg)
5.Application Demonstration

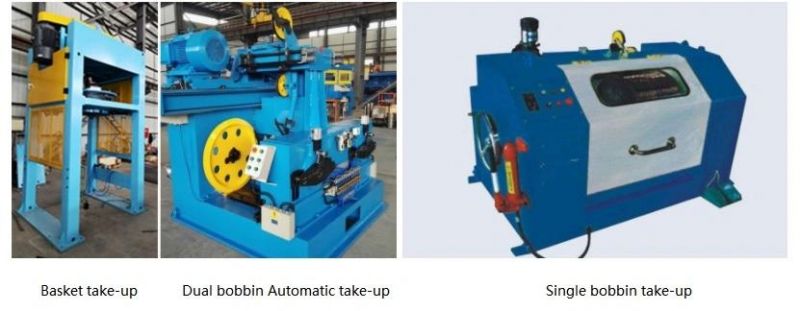

Application Demonstration: According to the need, it can be configured with a variety of take-up machine;
![Reduction Adjustable Copper Rod Breakdown Machine](http://www.077592.com/uploads/image/2021/f6/d9/b7/5b/08d32c3e3fb10950c731a40e9caa2c10.jpg)
