• Model NO.：Cl-2315
• Condition：New
• Use：Electrostatic Powder Coating
• Voltage：220V,380V
• Size：D1500*W2300*H1500mm
• Delivery Time：10 Day S
• Transport Package：Carton
• Specification：CE
• Trademark：HICOLO
• Origin：China
• HS Code：8424899990
• Production Capacity：20PCS ,Meses

Basic Info.

Model NO. Cl-2315 Condition New Use Electrostatic Powder Coating Voltage 220V/380V Size D1500*W2300*H1500mm Delivery Time 10 Day S Transport Package Carton Specification CE Trademark HICOLO Origin China HS Code 8424899990 Production Capacity 20PCS /Meses

Product Description

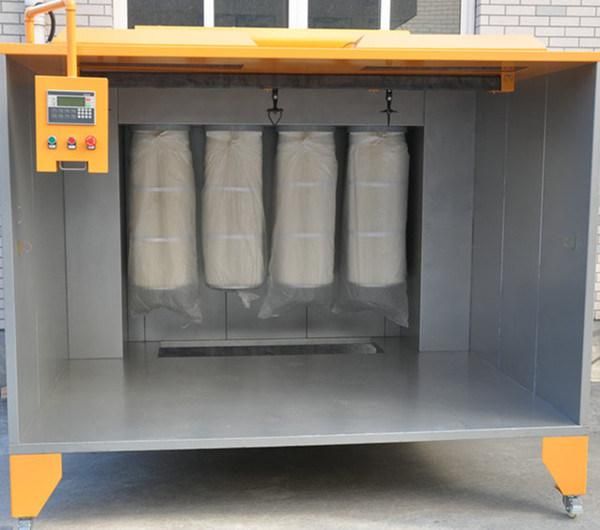

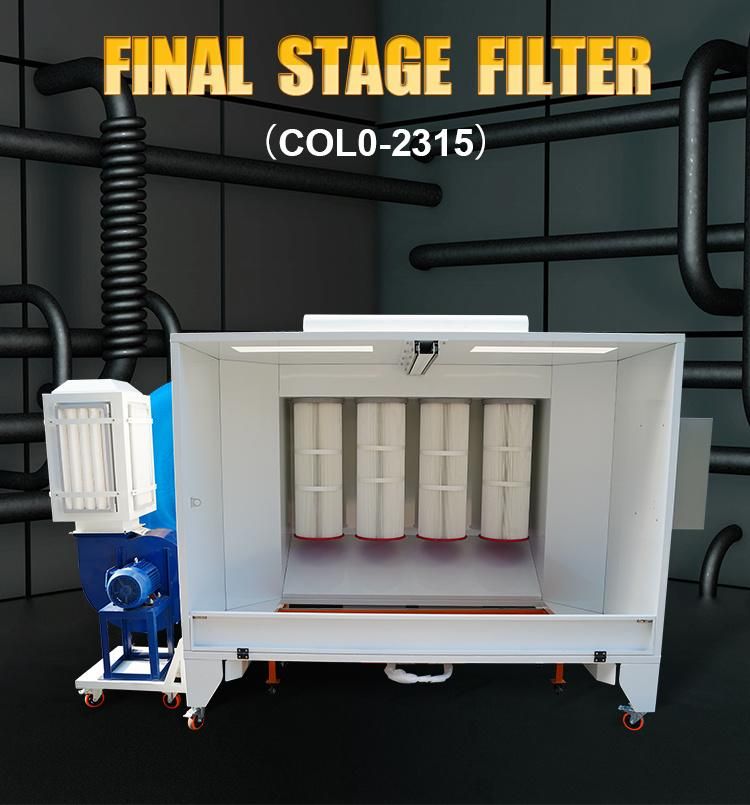

closed type spray booth  with polyester recovery filters(Cl-2315)

Model COLO-S-2315 Lthe  size and color  can be ordered according to the requirements of the clients.

advantages:

1.Plastic anti-static, not easy adsorption powder, therefore, clear color change is very easy and quick.

2.Spray outlet has a sliding door, when the clean-up booth, the import and export all off, you can
speed up the rate of spray to clean the room.

3.Light-colored spray booth and the integrated lighting to ensure good working conditions, staff
can enter the booth, with an elongated air lance can facilitate internal cleaning spray.


Model	COLO-S-2315
Booth Type	Closed
Operator dimensions	D1500*W2300*H1500mm
Overall dimensions	D2070*W2750*H2180mm
Weight	450kg
Power supply	Electric
Nominal power	4kw
Voltage	380V 3PHASE
Frequency	50-60Hz
Filters	Polyester
Filters count	4(325*900)
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Air consumption	6677-13353m3/h
Warranty	12 months



related machines:automatic with the reciprocator

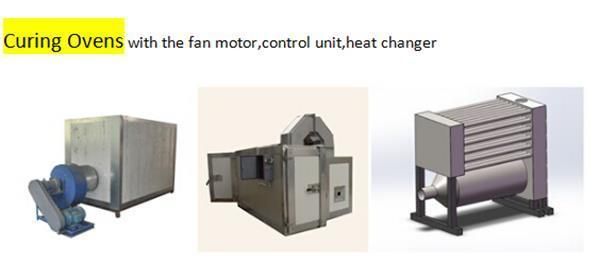

 next parts:ovens

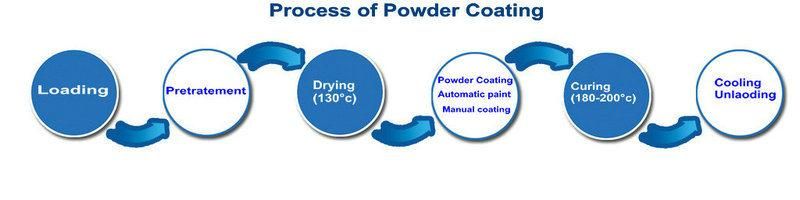

the process

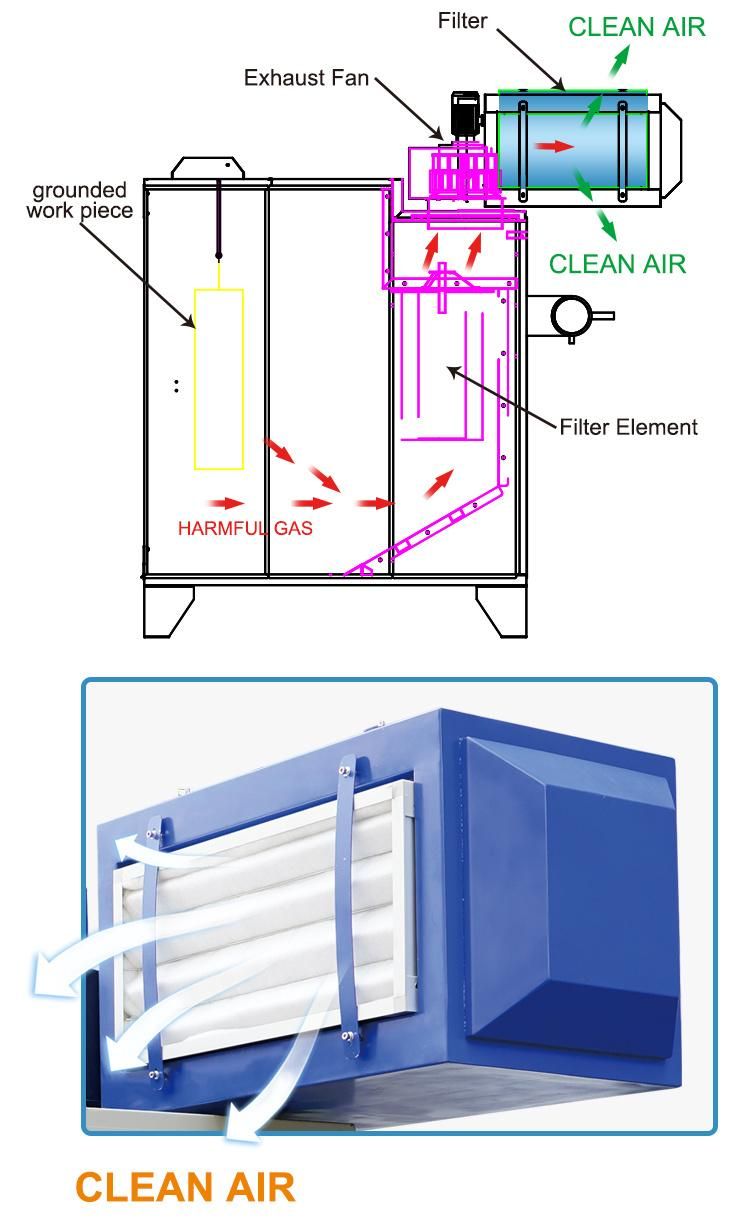

 Powder Coating Booth consists of stainless steel panel room, Cleaning Panel, Fast Change Color Recovery System, including Mono-cyclone Unit, Filter Recycle Unit, Recycle Fan, Magnetic Valve, Re-verse Blow,
Compress Air Reservoir, Pneumatic Control and Electrical Control. There are four stages for the Recovery System; it includes Powder Coating Suctions, Separation, Filtering and Out Deliver, 98% recycle powder
can be reused. To our new design, there is a Cleaning Panel in the bottom of booth, which is able to reverse, easy to cleaning. The Powder Coating Booth optional size 5~8meters, depends on clients' requirement and technical design.
