• Model NO.：DL-36
• Max. Number of Block：1
• Certification：ISO
• Condition：New
• High Speed：High Quality
• Transport Package：Wooden Box
• Specification：dl series
• Trademark：rainbow
• Origin：China
• Production Capacity：200sets

Basic Info.

Model NO. DL-36 Max. Number of Block 1 Certification ISO Condition New High Speed High Quality Transport Package Wooden Box Specification dl series Trademark rainbow Origin China Production Capacity 200sets

Product Description

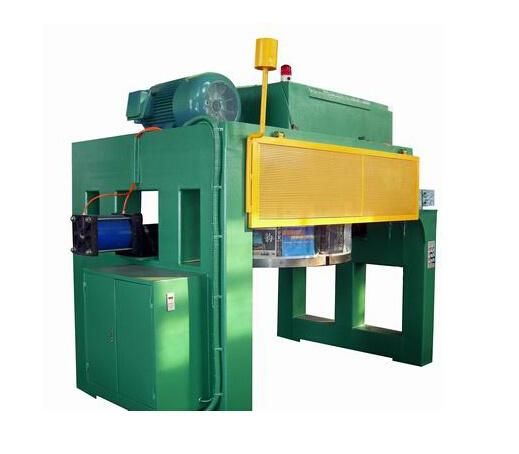

DL36 inverted wire drawing machine parameters and configuration

1. The main motor: 75 kw - 6 p speed regulation of frequency conversion motor
2. The frequency converter: 75 kw (vector control)
3. The drum:  1400 mm diameter, material: chilled cast iron, the surface hardness HRC55 - HRC56
4. Level 3 speed reducer: V14 type four axis (hard tooth face)

Take-up wire :
1. Take-up motor: 2.2 kw - 6 p general motors
2. Type inverter: 2.2 kw (vector control)
3. The reducer: WPO135 type
4. The discharging machine: 1.5 kw - 6 p

Hydraulic clamping device:
1. Hydraulic cylinder: 100 * 180  three groups
2. : nip  150 * 250 alloy nylon material 2 x 3 groups

  specification

1. Max drawing speed: 45 m/min
2. Max incoming diameter :  36mm
3. Incoming strength: 1000 Mpa For high carbon steel
4. The biggest reducing: 200 s standard of high carbon steel
5. The largest storage line: 2.5 T
6. Compaction method: three groups of six rounds of hydraulic clamping
7.Drum diameter: 1400mm
8.Motor: 75KW


DL-25 Inverted wire drawing machine
specification
1. Max drawing speed: 60 m/min
2. Max incoming diameter : 25
3. Incoming strength: 800 Mpa or less
4. The biggest reducing: 200 s standard of high carbon steel
5. The largest storage line: 2.5 T
6. Compaction method: three groups of six rounds of hydraulic clamping
7.Drum diameter: 1200mm
8.Motor: 55KW



We are the biggest dealer in China. We can get the best price from Manufacture .
We can get lower price than you purchase from manufacture directly and we can give you best after-sale service.
We have engaged in exporting more than 20 years.
80% fasteners machine in INDIA Import from us.
Such as Deepak , Empire ,Poojafore , LPS they all use our machines.
We engaged in exporting good quality products. We can give you the best price and best after-sale services.
If you have any questions, we can send engineer to your city solve problem for you.

For any questions,please feel free to contact me.
Look forward to cooperate with you.
