Od60xid16X1.0mm Carbide Round Blades for Cutting Tape and Film
Zhuzhou Up Cemented Carbide Co., Ltd.- Condition：New
- Standard：DIN, ASTM, GB, JIS, ANSI
- Customized：Non-Customized
- Material：Tungsten Carbide
- Application：Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
- Outer Diameter：60mm
Base Info
- Model NO.：OD60XID16X1.0mm
- Inner Diameter：16mm
- Thickness：1.0mm
- Grade：Yg8
- Grain Sizes：Medium Grain Size
- Density：14.8g,cm3
- Hardness：89.5hra
- T.R.S：2800MPa
- Co：8%
- Wc：92%
- Transport Package：25kg. Carton
- Specification：OD200*ID70*T3.5MM
- Trademark：ZZUP
- Origin：Zhuzhou, Hunan, China
- HS Code：820900100
- Production Capacity：100000PCS,Month
Description
bending strength, suitable for electronic industry with the disc cutting knife.
Sizes choosing:
| TYPE | OD(mm) | ID (mm) | S (mm) | TYPE | OD(mm) | ID (mm) | S (mm) | |
| Φ12×Φ6×S | 12 | 6 | 0.6-4.5 | Φ60×Φ19×S | 60 | 19 | 0.8-7.0 | |
| Φ13×Φ6×S | 13 | 6 | 0.6-4.5 | Φ63×Φ17×S | 63 | 17 | 0.8-7.0 | |
| Φ16×Φ6×S | 16 | 6 | 0.6-4.5 | Φ70×Φ22×S | 70 | 22 | 0.8-7.0 | |
| Φ22×Φ10×S | 22 | 10 | 0.6-4.5 | Φ75×Φ22×S | 75 | 22 | 0.8-7.0 | |
| Φ25×Φ12×S | 25 | 12 | 0.6-5.5 | Φ80×Φ22×S | 80 | 22 | 0.8-7.0 | |
| Φ32×Φ10×S | 32 | 10 | 0.8-5.5 | Φ83×Φ21×S | 83 | 21 | 0.8-7.0 | |
| Φ40×Φ10×S | 40 | 10 | 0.8-6.0 | Φ86.5×Φ21.5×S | 86.5 | 21.5 | 1.0-7.0 | |
| Φ45×Φ13×S | 45 | 13 | 0.8-6.0 | Φ90×Φ22×S | 90 | 22 | 1.0-7.0 | |
| Φ53×Φ13×S | 53 | 13 | 0.8-6.0 | Φ100×Φ22×S | 100 | 22 | 1.0-7.0 | |
| Φ52×Φ24.5×S | 52 | 24.5 | 0.8-6.0 | Φ125×Φ22×S | 125 | 22 | 1.0-7.0 | |
| Φ53×Φ24.5×S | 53 | 24.5 | 0.8-6.0 | Φ200×Φ70×S | 200 | 70 | 3.0-4.5 | |
| Φ55×Φ16×S | 55 | 16 | 0.8-6.0 | Φ250×Φ70×S | 250 | 70 | 3.0-4.5 | |
| Φ58×Φ22×S | 58 | 22 | 0.8-6.0 |

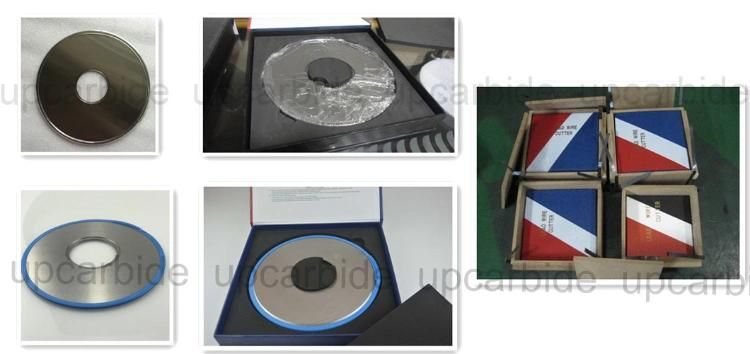

Packing details
Shipping ways

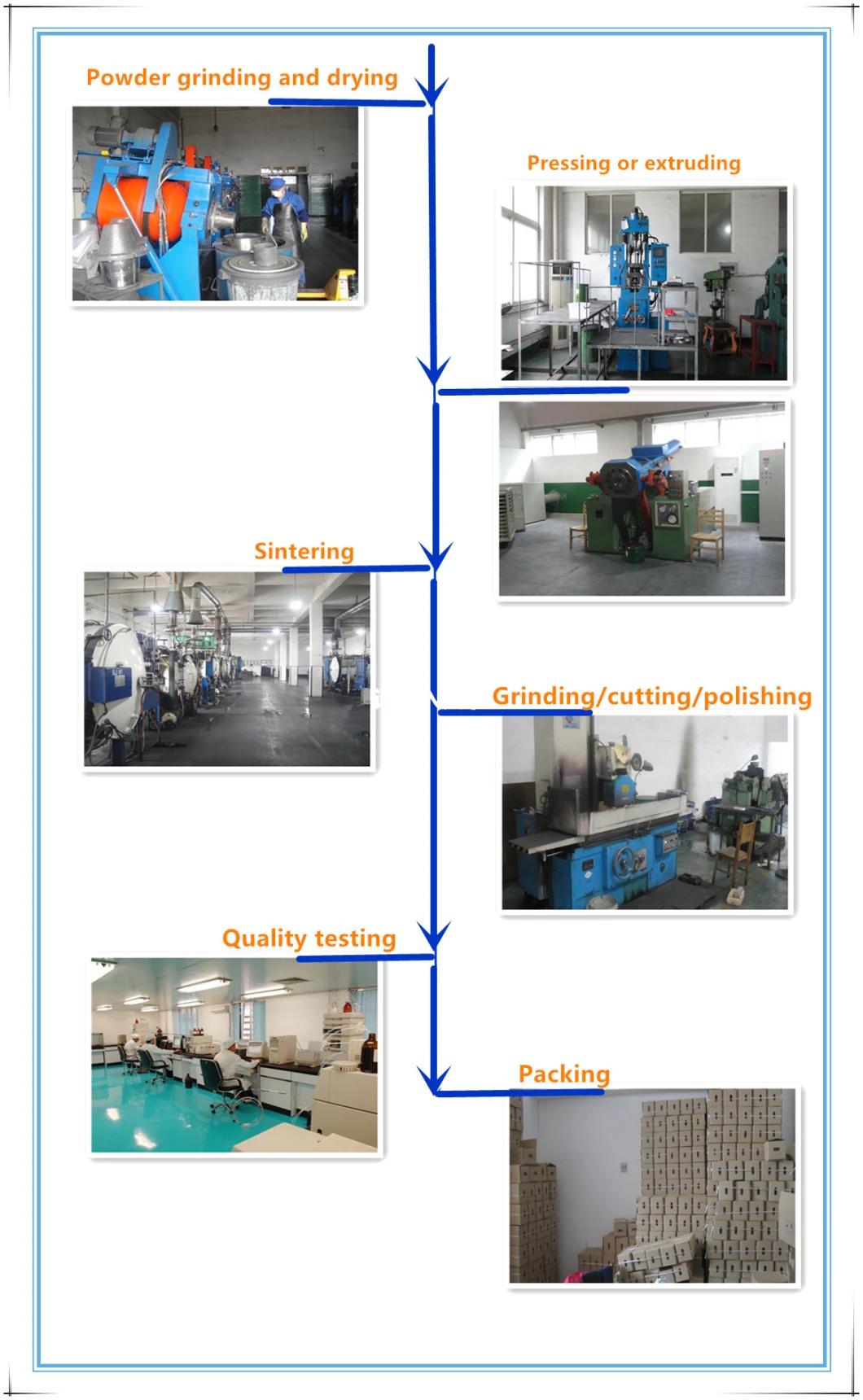

Production process
