• Customized：Non-Customized
• Advantage：Use Widely
• Condition：New
• Color：Blue or Customized
• Transport Package：Wooden Box
• Specification：SGS
• Trademark：Rainbow
• Origin：China
• Production Capacity：100sets,Year

Basic Info.

Customized Non-Customized Advantage Use Widely Condition New Color Blue or Customized Transport Package Wooden Box Specification SGS Trademark Rainbow Origin China Production Capacity 100sets/Year

Product Description

Model HSD-30 bi-metal rivet & button making machine

Dia. Of rivet head:	2.5-6mm
Dia. Of rivet shank:	1.2-3mm
Dia. Of Button:	2.5-6mm
Thickness of button:	0.5-2.2
Thickness of silver layer:	0.18-0.35
Stroke of slider:	40mm
Motor power:	2.3kw
Output:	90- 130PCS/min
Package size:	1300X1400X1300mm
Weight:	1100kgs

Model HSD-50 bi-metal rivet machine
Dia. of rivet head:          6-10mm
Dia. of rivet shank:         3-5mm
Thickness of silver layer:    0.25-0.70
Stroke of slider:              40mm
Motor power:                3kw
Output:                 80- 110pcs/min
Package size:        1300X1400X1300mm
Weight:                  1400kgs

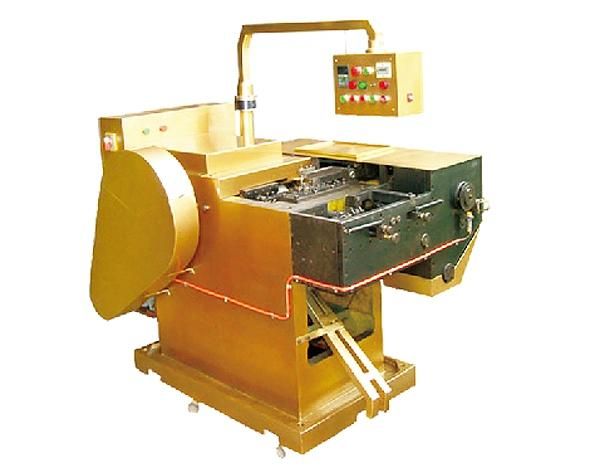

Tri-Metal Rivet Contact Machine

Trimetal Composite Contact Cold Header can make six different metals be compounded together under cold state to produce composite contacts according to the technique requirements. Its working process includes the following steps: Sending two different kinds of metal wire into the machine firstly, transmitting them into the mould after being cut off. Then by two times upsetting process, the two kinds of metal become the composite contacts. Finally, the products retreat from the mould and enter into the finished product box.
Bi-metal contact rivet machine
Bimetal Composite Contact Cold Header can make six different metals be compounded together under cold state to produce composite contacts according to the technique requirements. Its working process includes the following steps: Sending two different kinds of metal wire into the machine firstly, transmitting them into the mould after being cut off. Then by two times upsetting process, the two kinds of metal become the composite contacts. Finally, the products retreat from the mould and enter into the finished product box.



HYFC36-3 Tri-metal Rivet Automatic Machine
   Round Button Dia. (mm)       Φ2-Φ8
   Max. thickness of head (mm)       3
   Dia. of rivet shank (mm)       Φ1-Φ4
   Length of rivet shank (mm)    Max 9mm
   Head Silver thickness (mm)    Min 0.25mm
   Foot silver layer (mm)         0.4-2.5
   Rivet output                4000-8000pcs/hr
   Power                      3.0kw, 440v, 50hz
   Net weight                     1800kgs
   Quantity                        1


Our machine is very good quality. And it is easy to operate.
Besides, we have service center in India.
Our engineer in the India all the year round.
Our company have been engaged in exporting more than 20years.
We have cooperated with Deepak Fasteners, Empire, Poojaforge and so on.
For anything, please feel free to contact me.
Look forward to cooperating with you.

We have exported the machine to India, Indonesia and other contries, and have received highly praise from the customers.
