• Model NO.：DX 312
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Dx 312 PPGI Ridge Cap Roll Forming Machine
• Processing Material：Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Feeding Width：500mm
• Effective Width：312mm
• Main Motor Power：4 Kw
• Pump Power：4kw
• Shaft Diameter：70mm
• Forming Steps：13 Steps
• Main Frame：300h Steel
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX 312
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. DX 312 Customized Customized Advantage Use Widely Condition New Name Dx 312 PPGI Ridge Cap Roll Forming Machine Processing Material Galvanized Steel/Colored Steel Coil Material Thickness 0.3-0.8mm Feeding Width 500mm Effective Width 312mm Main Motor Power 4 Kw Pump Power 4kw Shaft Diameter 70mm Forming Steps 13 Steps Main Frame 300h Steel Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX 312 Trademark DX Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Month

Product Description

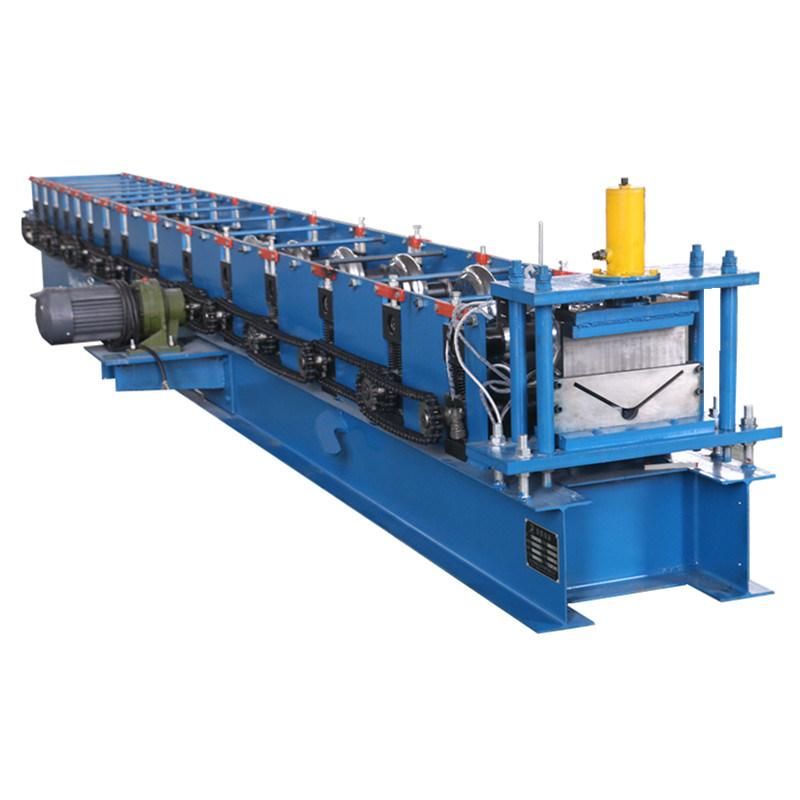

High quality galvanized aluminum Ridge Cap Tile Roll Forming Machine

Technique parameters
(1) Processing material: Galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 312mm
(4) Feeding width: 500mm
(5) Main motor power: 4 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 14mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz
(14) 0veral sized: 6500mm*600mm*1500mm

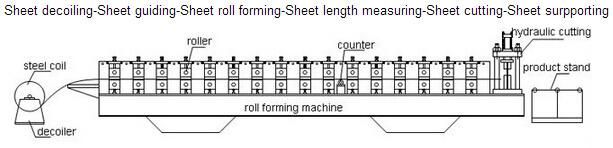

3. Working flow
Decoiling- Active feeding (put the coil strip into the first feeding roller)- Leveling - Roll forming - Computer control system- Hydraulic cutting- Product to stand


4. Company Information

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need.


5. Our Services

1. We can produce the special machine, send your drawing to us, we can design for you.
2. If you buy our products, we also can help you to purchase the material, like color roll, the price is lower than you buy by yourself.
3. We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US80.
4. Engineers available to service machinery overseas.
5. If you come to visit our factory, we can book the room for you, car pick up to send.


6. How to order

1: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2: How to visit our company
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
Then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.



If you want to get more pictures or videos of the machines, I can send them to you by Email or SKype.
