• Model NO.：YX41-320-960
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Color：Blue and Yellow
• Transport Package：No Packing
• Specification：CE, SGS
• Trademark：SAIBO
• Origin：Suzhou, China
• HS Code：84552210
• Production Capacity：300sets,Year

Basic Info.

Model NO. YX41-320-960 Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Transport Package No Packing Specification CE, SGS Trademark SAIBO Origin Suzhou, China HS Code 84552210 Production Capacity 300sets/Year

Product Description

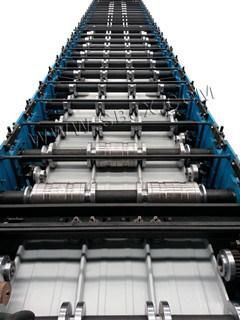

Details of each compostion:A: Roll forming main machine
1: Coil width: 1220mm effective width: 960±3mm
2: working speed: 12m-15m/min (not contain cutting)
3: roll station: about 25 stations
4: material of roller: Gcr15, CNC lathes, hard Chrome Coated with hear treatment 58-62 degree.
5:material of main shaft:45forge steel diameter roller: 76mm
6: main power: 15kw(7.5kw×2) adopt China famous brand
7: forming thickness: 0.4-0.8mm color steel and galvanized steel345Mpa-550Mpa
8: feeding and guide: adopt hand wheel to easy adjust the feeding width, the machine should be adopt maximal feeding width in 1250mm
10: Transmission: by 1.0 inch double chain should be adopt import famous brand
11: Machine with edge trimmer (both sides): power in 3KW per each one motor
12: For forbid the two lip waviness, the machine should be adding side rollers to forbid this problem in the future.
