China High Speed Automatic Steel Iron Wire Nails Making Machine Price
Xuchang Hongshuo Machinery Co., Ltd.- After-sales Service：After-Sales Service,24hrs Online Overseas Service
- Warranty：2 Years
- Transport Package：Wooden Case or Suitable for Sea Shipping
- Specification：1.5-5.5kw
- Trademark：Hongshuo
- Origin：Zhongguo
Base Info
- Model NO.：Z94-1C,2C,3C,4C,5C
- HS Code：846330000
- Production Capacity：80~2000kg,8h
Description
Basic Info.
Model NO. Z94-1C/2C/3C/4C/5C HS Code 846330000 Production Capacity 80~2000kg/8hProduct Description

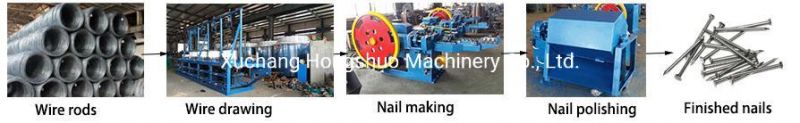

Process flowWire rod --wire drawing(optional)--nail making--nail polishing--finished nails.

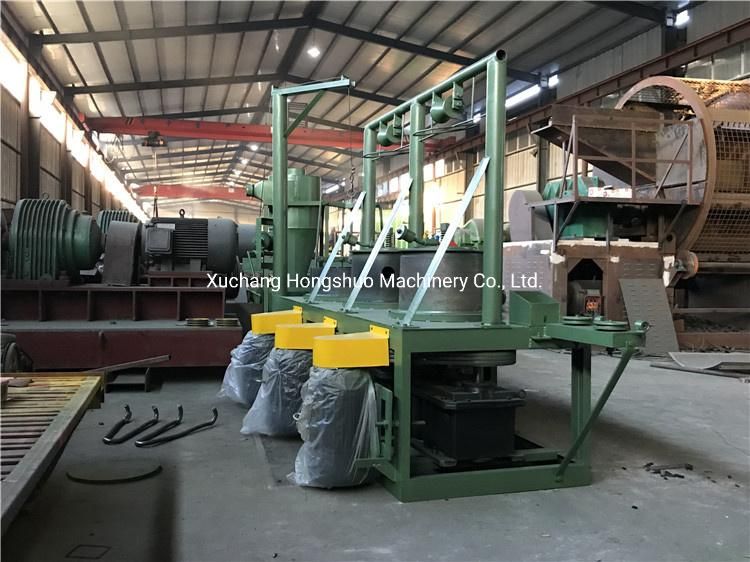

Multi-drums wire drawing machine
Function: This is the combined wire drawing machine. If the diameter of wire is thick before it entering the nail making machine, this machine can reduce the diameter of wire, then the user can get the diameter that they need. It is can be matched with 2 combinations, 3 combinations, 4 combinations or more according to the daily capacity.TIPS : If you buy suitable diameter wire coil from the market directly, no need the wire drawing machine as well as the auxiliary equipment (pointing rolling machine and butt welding machine).

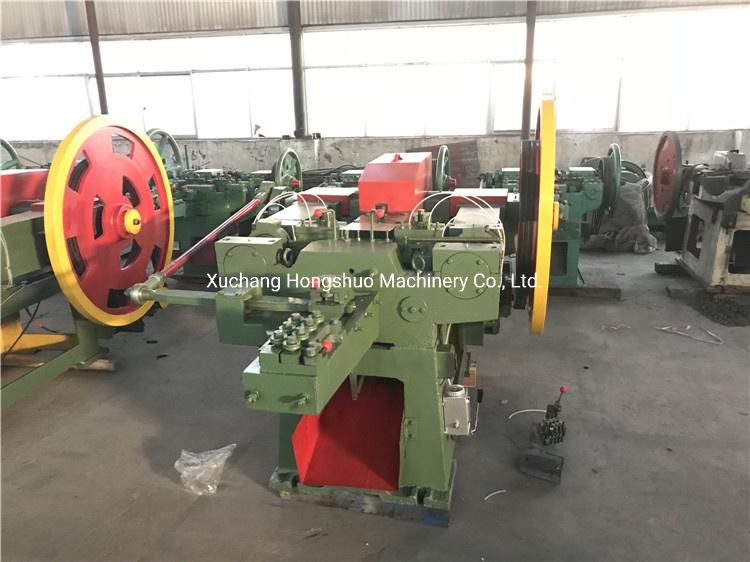

New generation of automatic nail making machine
Function:This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.
| Model | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Max. dia. of nail | 5.5mm | 4.5mm | 3.5mm | 2.8mm | 1.6mm |
| Min. dia. of nail | 3.8mm | 2.8 mm | 1.8 mm | 1.2 mm | 0.9 mm |
| Max. Length of nail | 150mm | 100mm | 75mm | 50mm | 25mm |
| Min. length of nail | 80mm | 50 mm | 30mm | 16mm | 9mm |
| Motor power | 5.5kw | 4kw | 3kw | 2.2kw | 1.5kw |
| Nail making speed | 220pcs/min | 260pcs/min | 320pcs/min | 380pcs/min | 450pcs/min |
| L*W*H | 2.5*1.6*1 .5m | 2.2*1.6*1.65m | 2.0*1.4*1.4m | 1.7*1.3*1.4m | 1.5*1.3*1.2m |
| Weight | 2.1tons | 1.8 tons | 1.5 tons | 1.15 tons | 0.8 ton |
| Output | 2000kg/8h | 1500kg/8h | 800kg/8h | 500kg/8h | 80kg/8h |

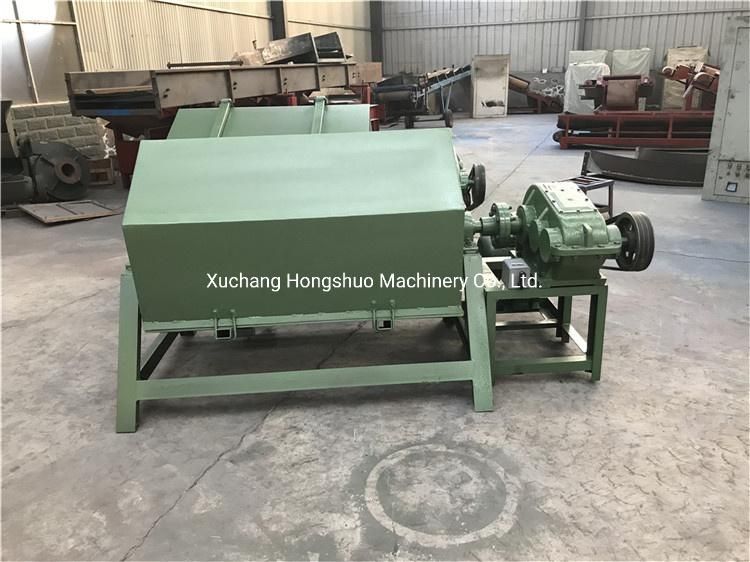

Nail polishing machine

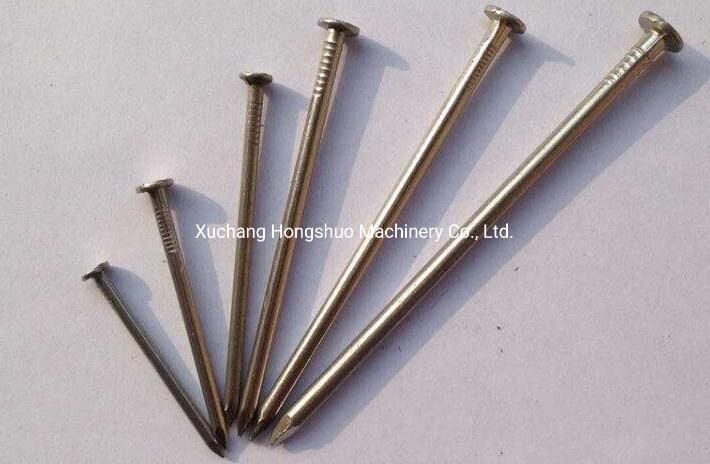

Function: This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.Finished nails
Come to contact us and get the lowest price
