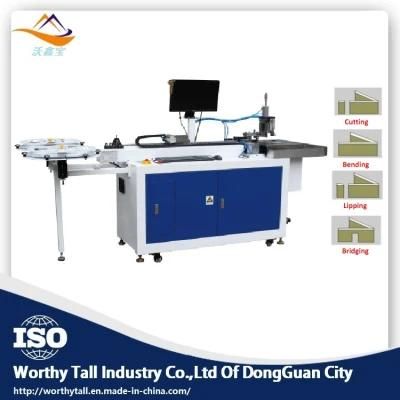

Precision Auto Steel Rule Bender

WORTHY TALL INDUSTRY CO., LIMITED
  • Maximum Bending Angle：110°
  • Minimum Bending Size of The Rear(mm)：>0
  • Feeding Accuracy：±0.03,300mm
  • Bending Flatness：±0.2,100mm
  • Bridge Mode：Auto Continuous Bridge,Gear Motor Drive,Low Noise
  • Best Files Format：Dcf,Dwg,Ai,CDR,Plt

Base Info

  • Model NO.：WT09
  • Weight：620kg
  • Power：1.8kw 110V 220V , 60Hz 50Hz
  • After-Sales Service：Warranty 12 Month
  • Usage：Laser Die Making
  • Transport Package：Export Standard Wooden Case
  • Specification：3125× 1025× 1470mm
  • Trademark：WT
  • Origin：Dongguan City China Prc
  • HS Code：8462219000
  • Production Capacity：1000PCS,Year

Description

>0>0>0>0>0High Precision HIWIN Screw guideLaser TypeCO2 direct-current stimulated glass laserServer Motor Inovance high precision server motorRe-positioning Precision+-0.02mmCutting Precision+-0.01mmCutting Board Thickness1-25mm poly wood (Cut 1.5mm stainless steel board and 3mm Normal steel when Add oxygen gas)Cutting Speed1-35m/h (18mm wooden board)  1-30m/h(18mm wooden board)Pneumatic parts:Taiwan-- AirTagBest Files formatDXF,DWG,AL,CDR,PLT (Auto Cad, Core Draw)Cutting SizeX-axis travel length: 1200mm  Y-axis travel length : 1800mmPower4kw  220V/ 60HZ  50HZLaser Power400W Single HeaderWork Temperature0-45ºClight-dimmer1 PcsTool1 Sets of tool boxFocus Len1 Pcs ofLaser Tube1 Pcs of QT 400W laser tubehigh efficiency air filter1 SetsSmock Exhaust fan1 PcsWater CoolingCW-6000Warranty12 month (except laser tube and lens)Weight2000kgOverall Size3400*2300*1500
>>>Die Making Manual Machine Details

Manual Die board tools are widely use in plywood die board making factory and  die board making work shop.That is good as assistant tools after you buy our blades bending machine for make plywood die board.Also we can provide series of dies for board maker industry machinery.
Precision Auto Steel Rule Bender

Precision Auto Steel Rule Bender

>>> Package & Shipping
Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.


>>> Our Services
1. Our machine is guaranteed for one year, not including normal consuming parts.
2. 24 hour technical support by email or calling +86-137-1262-4566.
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.
5. We supply 1 year warranty and LifeLong engineering service.

Why Choose Us

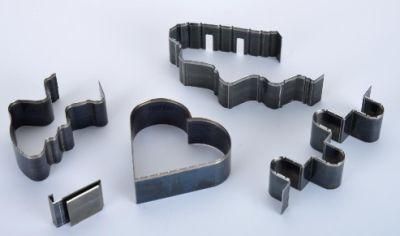

⊙ WT Bend Machine Can process The Minimum radius of processed 0.5mm,While Other 1.0mm.
⊙ Automatic identificate Cutting direction,Cutting The Knife At any short you want,But Others Don't have those functions,The Shortest Knife to be 2.5mm.
⊙ Automatically adjust the height of the bridge.15 18 mm By a switch.
⊙ No Noise Of Cutting and Bridge By Motor Contril,No Helpless Or Blocking Knife.However Other ⊙ Company usually adopt Pneumatic control,there will occur the Phenomenon Of Helpless And Blocking Knife.
⊙ WT Bend Machine Can Make Bridge Hole continusly,Continuous Working,No Phenomenon Of Round-trip back to Make bridge.
⊙ WT AutoBend Machine Has The Integrated Working(Selsct All The Knife you want to bend,Then the Machine Will bend All the Knife Continusly,The Same as Cutting Line).
⊙ WT AutoBend Machine Has The Automatic alarm and Self Protect Function.When false operation and machine breakdown,The Machine Will Stop and Show the Erro Code,You Can Check it easily.
⊙ All Parts of the Machine ate produced by Vike self.It is rather convenient to Maintain and Replace.All The Mold Of Bending machine are Maintained for free.
⊙ The AutoBend Control System is developed by ourslef,we promise it is free any customer to update lifetime.Our Machine Also can bend the knife and cut the line at the same time.
⊙ The shimpo reducer is original imported from japan,while others are made in china only.

>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?

Precision Auto Steel Rule Bender
