• Model NO.：YX65-300-600
• Customized：Customized
• Advantage：Simple Structure
• Condition：New
• Dimension：1600*900*2000mm
• Weight：1000kgs
• Motor Power：4kw
• Motor Power for Adjustment：0.75kw
• Forming Steps：4 Steps
• Volgate：380V,50Hz,3pH
• Curved Speed：8-16m,Min
• Curved Thickness of Steel Roof：0.6-1.0mm
• Curved Thickness of Aluminum：0.6-1.2mm
• Transport Package：Standard Package for Export
• Trademark：XHH
• Origin：Xiamen of China
• HS Code：84552290
• Production Capacity：15-20sets,Month

Basic Info.

Model NO. YX65-300-600 Customized Customized Advantage Simple Structure Condition New Dimension 1600*900*2000mm Weight 1000kgs Motor Power 4kw Motor Power for Adjustment 0.75kw Forming Steps 4 Steps Volgate 380V/50Hz/3pH Curved Speed 8-16m/Min Curved Thickness of Steel Roof 0.6-1.0mm Curved Thickness of Aluminum 0.6-1.2mm Transport Package Standard Package for Export Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 15-20sets/Month

Product Description

YX65-300-600 Automatic Adjusted Curving Machine for Trapezoid and Straight Type 's detail information are as follow:

Main Technic Data:

Dimension  :1600*900*2000mm

Weight:  1000KGS

Motor Power  :4KW

Motor Power for Adjustment  :0.75KW

Forming Steps  :4steps

Curving Speed  :8-16m/min

Voltage  :380V/50HZ/3PH

Curved Thickness for Steel Roof  :0.6-1.0mm

Curved Thickness for Aluminum Roof  :0.6-1.2mm

Max. Width of Tapered Roofing to Curved  :500mm

Min. Width of Tapered Roofing to Curved  :250mm

Min. Curved Radius for Tapered Roofings  :Convex Curved 10 meters, Concave Curved 12 meters

Min. Curved Radius for Steel Roofings  :Convex Curved 8 meters, Concave Curved 10 meters

Min. Curved Radius for Aluminum Roofings  :Convex Curved 4 meters, Concave Curved 6 meters



Main Usage:

1. Bending roofing to Arc-Shaped, and"wave" shaped( Can bend with convex and concave shape for one pcs roofing );

2. Can automatically bending variable width of roofing from 300mm to 600mm;

3.Widely use in the large project such as:railway station,airport , gymnasium etc.

4.Can curving trapezoid roofing and straight roofing.


The Project for curving machine:

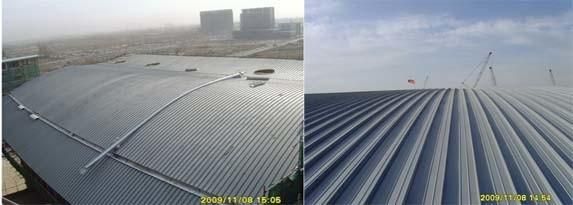

JINGZHOU CONVENTION CENTER :





XIAMEN HIGH SPEED RAIWAY STATION:

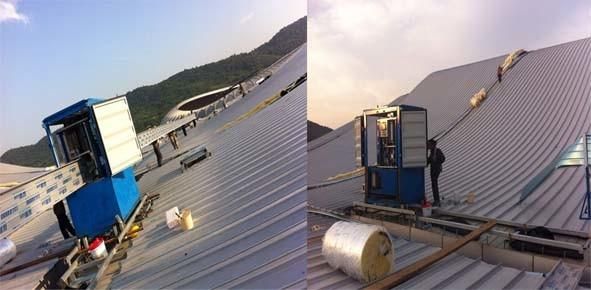

BAOTOU INTERNATIONAL CONVENTION CENTER







Dimension	1600*900*2000mm
Weight	1000KGS
Motor Power	4KW
Motor Power for Adjustment	0.75KW
Forming Steps	4steps
Curving Speed	8-16m/min
Voltage	380V/50HZ/3PH
Curved Thickness for Steel Roof	0.6-1.0mm
Curved Thickness for Aluminum Roof	0.6-1.2mm
Max. Width of Tapered Roofing to Curved	500mm
Min. Width of Tapered Roofing to Curved	250mm
Min. Curved Radius for Tapered Roofings	Convex Curved 10 meters, Concave Curved 12 meters
Min. Curved Radius for Steel Roofings	Convex Curved 8 meters, Concave Curved 10 meters
Min. Curved Radius for Aluminum Roofings	Convex Curved 4 meters, Concave Curved 6 meters
