Gw Carbide-Solid Carbide 4 Flutes Roughing Carbide Endmill with Coating in Stock
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.- Application：Metal Cutting Machine
- After-Sales Service：Yes
- Warranty：Six Month
- Certification：ISO 9001:2000
- Customized：Gw or OEM
- Material：Tungsten Carbide
Base Info
- Model NO.：4x50, 4x75, D4x100, 6x50, 6x75, 6x100, 6x150, 8x60
- Logo Printing：Without Logo Printing
- Size：Gw or OEM
- Machining Method：CNC Turning
- Structure：Flat
- Milling Cutter Type：Vertical Milling Cutter
- Milling Cutter Structure：Indexable Type
- Automatic Grade：Semiautomatic
- Precision：Precision
- Object：Metal, Steel, Iron, etc
- Materials：Cemented Carbide,Tungsten Carbide
- Cutting Form：Flat, Ball Nose, Corner Radius, Roughing
- Coating Colour：Black,Copper,Blue Nano
- Work Piece：HRC 45, 55, 60, 65
- Machines：CNC Center, Enraving Machines, High Speed Machine
- Shipment：FedEx, DHL, TNT, UPS, EMS, etc.
- Transport Package：Plastic Box Inside, Carton Outside
- Specification：D8X60, 10X75, etc.
- Trademark：GW
- Origin：Zhuzhou, China
- HS Code：8207709000
- Production Capacity：40000PCS,Month
Description

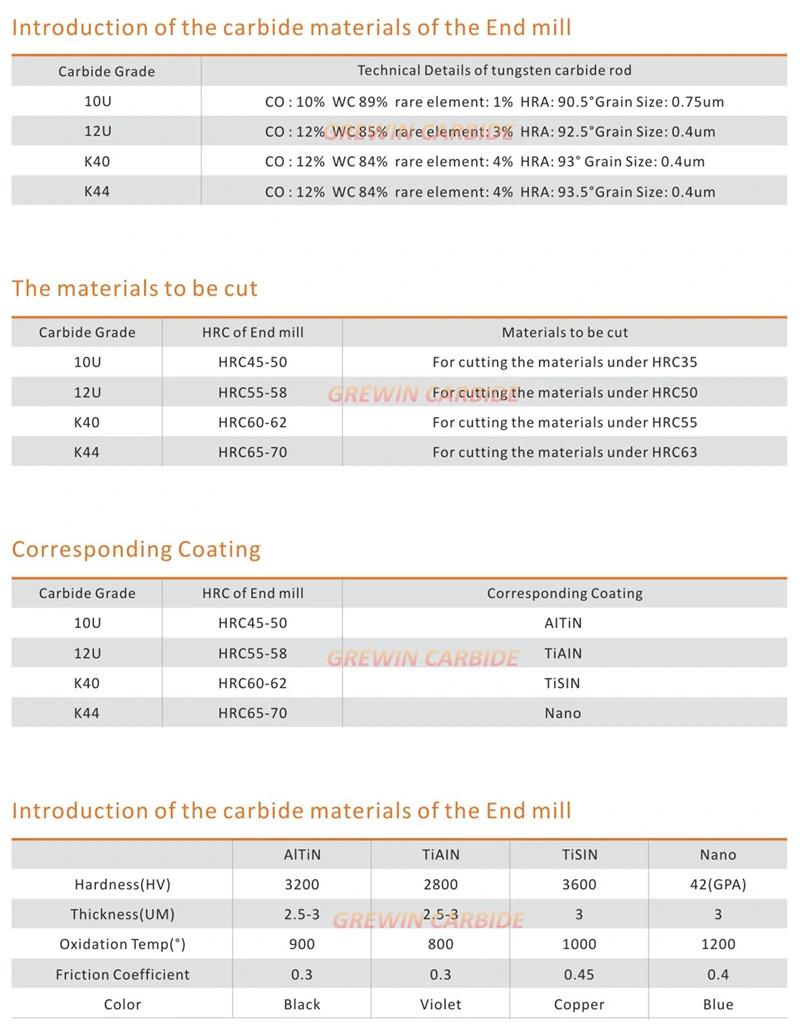

Coating
Color
Coating Temperature
Thickness (um)
HV
Application Temperature
Friction coefficient
TiAlN
4. Packing
Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group
5. Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days

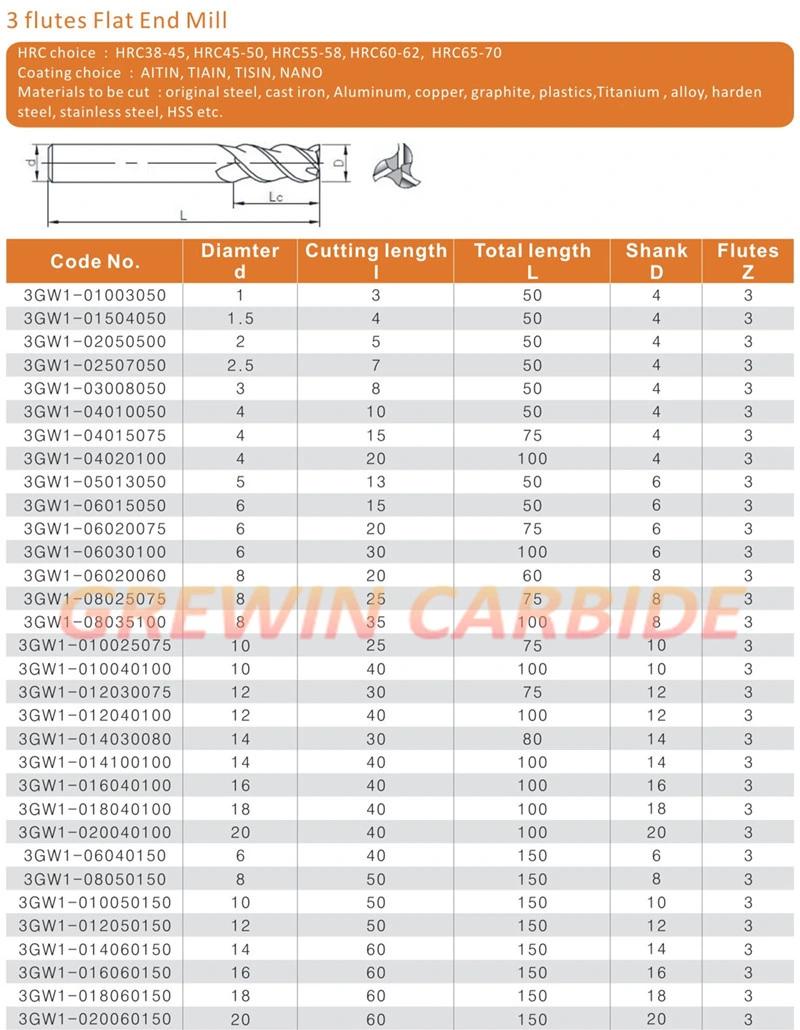

Standard Sizes:
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
| 25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |
