• Model NO.：comflex
• Application：for Metal Hose,Rubber Hose
• Payment Term：T,T
• Package：Standard Export Package
• Warrant：One Year
• Transport Package：Standard Seaworthy Package
• Specification：GBG16 till GBG128 carrier
• Trademark：HLT
• Origin：Jiangsu, China
• HS Code：844790900
• Production Capacity：500 Sets,Year

High-speed wire braiding machine main techaprametersProduct modelBJZ16-2SBJZ20-2SBJZ24-2SBJZ36-2SSpindle Rpm(r/min)4838.43218Max.Braiding diameter(mm)15222545Bobbin capacity(kg)7.57.57.57.5Braiding angle54°44"54°44"54°44"54°44"Machine dimension5800*1816*21005800*1816*21005800*1816*21005800*1816*2300
3. Machine pictures:

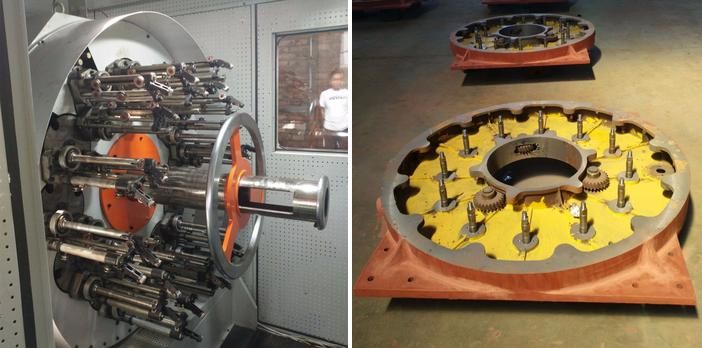

Decker

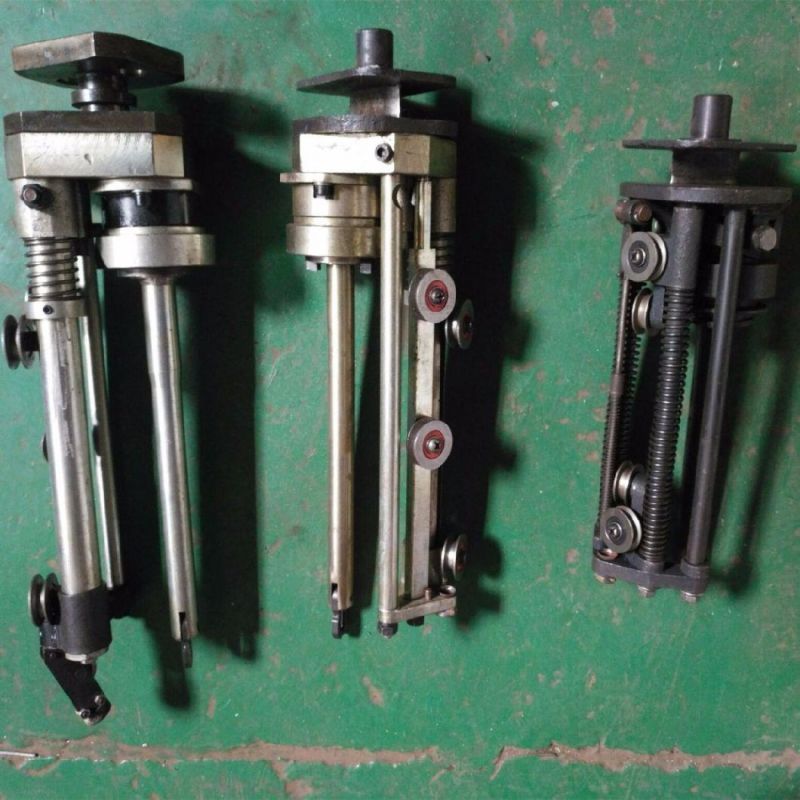

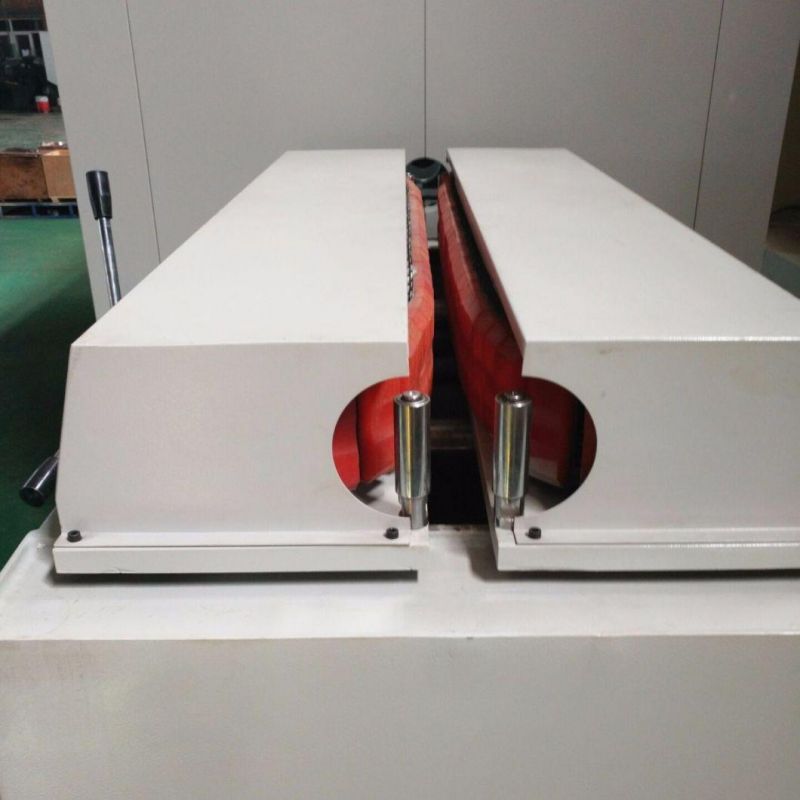

Carriers                                                                                  Caterpillar

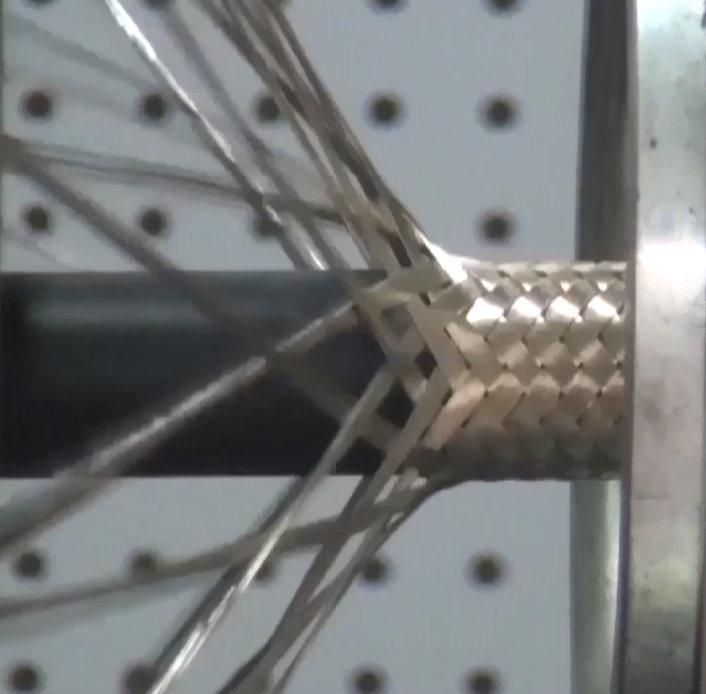

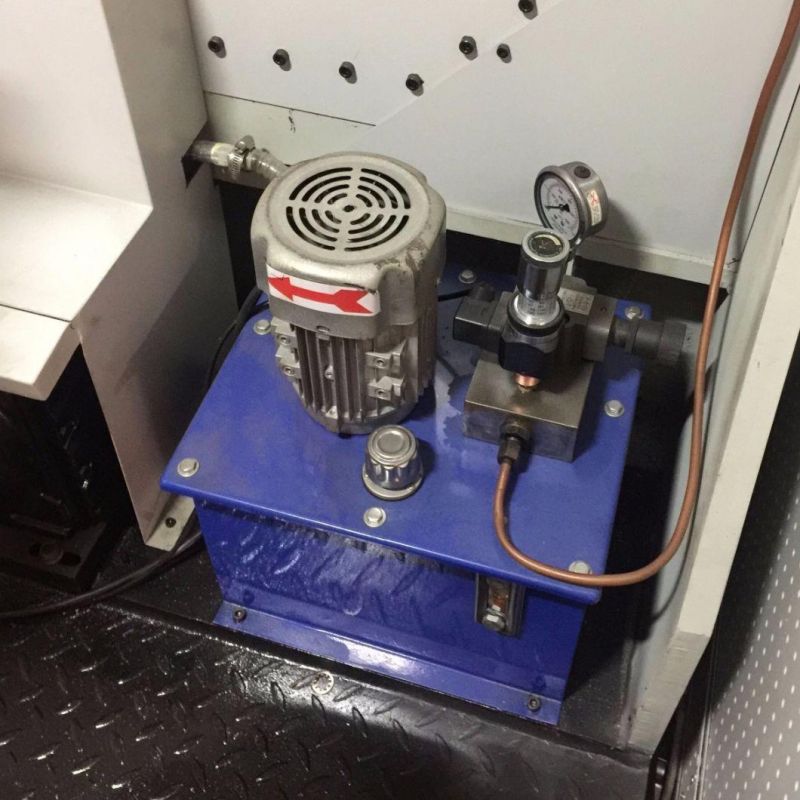

Auto lubrication system                                                    Braiding details


Matched maunfacturing facility:

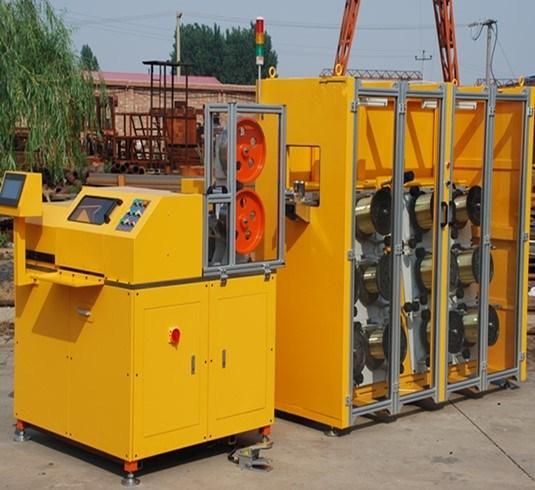

High-speed wire re-winding machine

Description:

This machine is a kind of steel wire knitting machine auxiliary equipment, it is to much with steel wire according to certain order wrapped around the spool wire weaving machines, used for steel wire knitting machine.
High-speed wire re-winding machine is our cmpany to develop design and manufacturing of the forth geeration of wire re-winding machine.




Structure and feature:
The take-up parts adopt fully automatic digital control (PLC+HMI)
Taking part adopts professional pay-off motor control of pat-off tension brake type, has the characteristics of the pay-off tension constan.
Determine the tension good permanent.
Disconnect aytomtically stop.
The line in fixed length function.
Three color alarm prompt.
The fault prompt functions.
 ZHG-B Bobbin re- winding machine ModelLay-off Speedtake-up control methodlay off control methodwinding diameterdiameter of wireNo.of wireOverall dimensions
(L*W*H)ZHG-B 1210PLC+human-computer interfaceelectricΦ180Φ0.2-Φ0.4123658x1160x1840ZHG-B 1810PLC+human-computer interfaceelectricΦ181Φ0.2-Φ0.5184533x1130x1840

FAQ for Steel Wire Braiding Machine

1.  Why choose us as your supplier?
     We are most professional in steel wire braiding machine with more than 30 years of experience

2.  What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire

3. What application of your braiding machine?
    Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
3.How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
