• Model NO.：LKX502
• Automation：Automatically
• Wire Dia.：0.2-2.3mm
• Type：Computer Universal Spring Machine
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel ,Stainless
• Transport Package：Wooden Case
• Specification：1200*800*1600MM
• Trademark：LIKEXING
• Origin：Made in China
• HS Code：84633000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LKX502 Automation Automatically Wire Dia. 0.2-2.3mm Type Computer Universal Spring Machine Suitable for Copper, Aluminum, Alloy, Carbon Steel ,Stainless Transport Package Wooden Case Specification 1200*800*1600MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

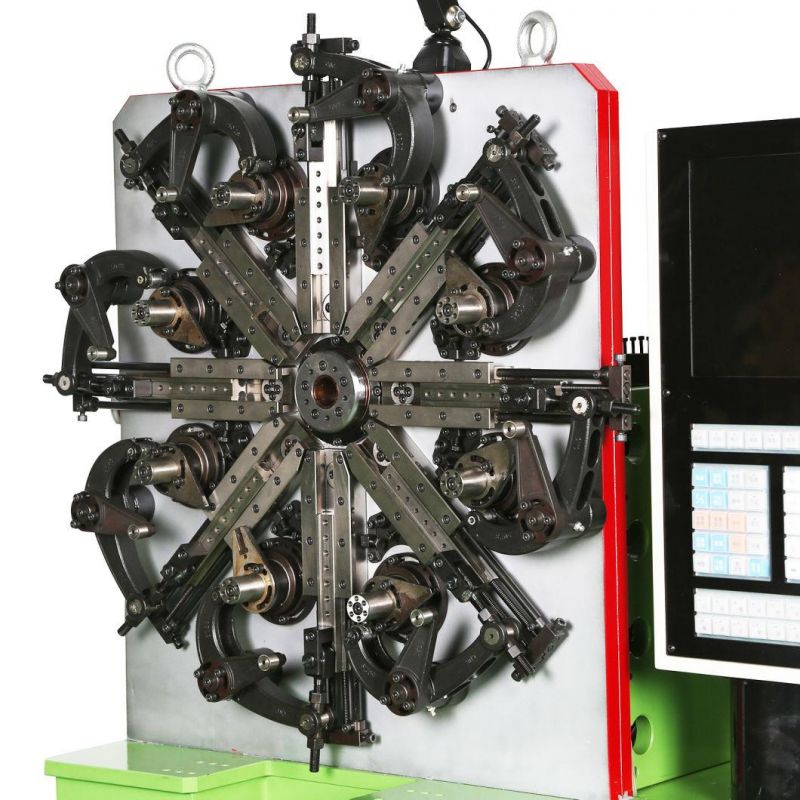

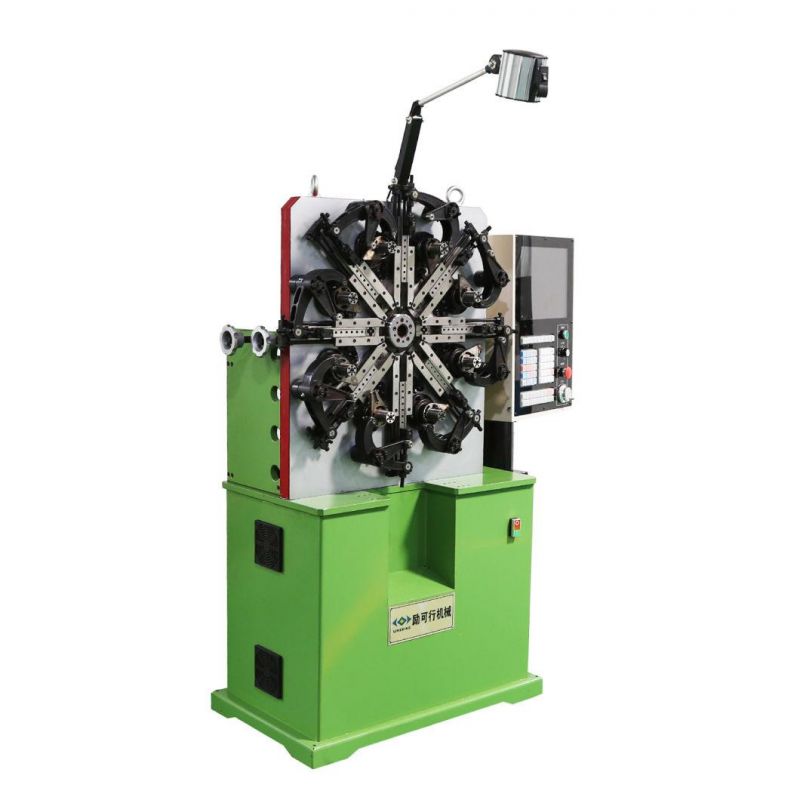

Equipped with the computer-controlled system and servo motor imported from Japan  .
This machine is for cam design,set up spring with high speed and precious inspection tracer device is installed.It will stop working automatically when the unqualified product is found.
The parameters can be modified at any time according to the working status displayed on the fluorescence screen.
Computer interface displayed in Chinese and English which makes the operation easy   .
It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, s


TECHNICAL PARAMETER

Model	LKX502S
Wire diameter (mm)	Ø0.2~Ø2.3
Axis Count	3(4)Axis
Max feeding Length	999999
Instruction value of wire feed	±0.01~±9999.99mm
Instruction value of cam	±0.10~±359.90
Servo motor of wire feed (kw)	2.7KW
Servo motor of cam (kw)	2.7KW
Servo motor of Quill Z-axis (kw)	1KW
Machine size L*W*H(mm)	1200×800×1600
Weight (Kg)	800
Power	380V 3-Phase

FAQ:
Q: What's the Min. order?
A: One set.

Q: What is the payment term?
A: The payment term is 30% deposit as PO confirmed and the 70%  after the shipment. We also accept other payment term according to the agreement.

Q:What's the delivery time?
A:Normally the delivery time of the machine is 30days after receicing deposit.But it depends on the machine model. Some of them could be shipped within several days, because normal machine type is current stock.
