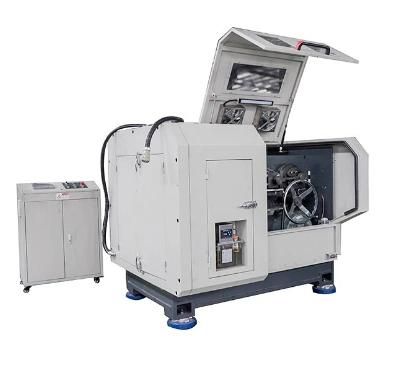

High Efficient Steel Nail Making Machine Automatic X Series
SSS Hardware International Trading Co., Ltd.- After-sales Service：Online Support,Video Technical Support
- Warranty：1 Year
- Product Name：High Speed Nail Machine
- Marketing Type：Hot 2019
- Core Components：PLC, Engine, Motor, Belts, Bering
- Machine Color：Customizable
Base Info
- Model NO.：SSS-ZDJ-X90,X130B,X150
- Capacity：600-800 PCS , Min
- Transport Package：Wooden Case
- Specification：2000*1500*1500
- Trademark：SSS
- Origin：China
- HS Code：8463300000
- Production Capacity：30 Sets,Per Month
Description
Machine Parameters
| Model No. | Specification | Parameters |
| SSS-ZDJ-X90 | Nail dia. range | 2.0-3.5 mm |
| Nail length range | 45-90 mm | |
| Nail making speed | ≤ 760 pcs/min | |
| Rated power | 7 kw | |
| Dimensions | 1400*1200*1100 | |
| Weight | 2800kg | |
| SSS-ZDJ-X130B | Nail dia. range | 2.5-4.5 mm |
| Nail length range | 70-130 mm | |
| Nail making speed | ≤ 700 pcs/min | |
| Rated power | 7 kw | |
| Dimensions | 1680*1430*1980 | |
| Weight | 3388kg | |
| SSS-ZDJ-X150 | Nail dia. range | 2.5-4.8 mm |
| Nail length range | 70-150 mm | |
| Nail making speed | ≤ 700 pcs/min | |
| Rated power | 14 kw | |
| Dimensions | 1650*1250*1300 | |
| Weight | 4200kg |

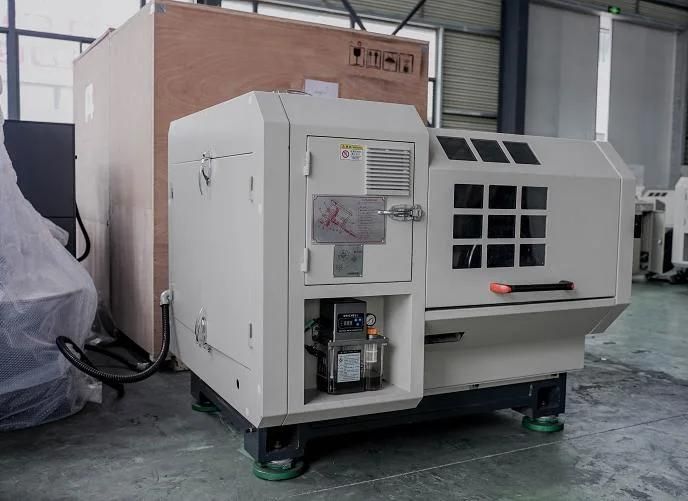

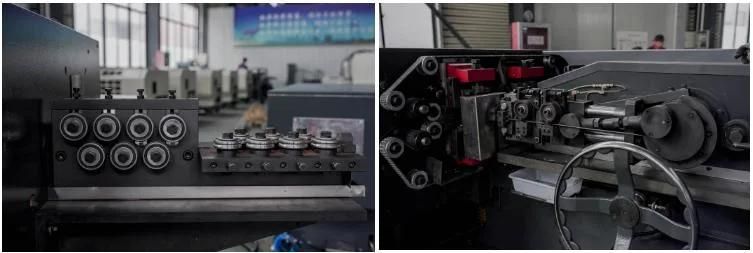

Machine Details

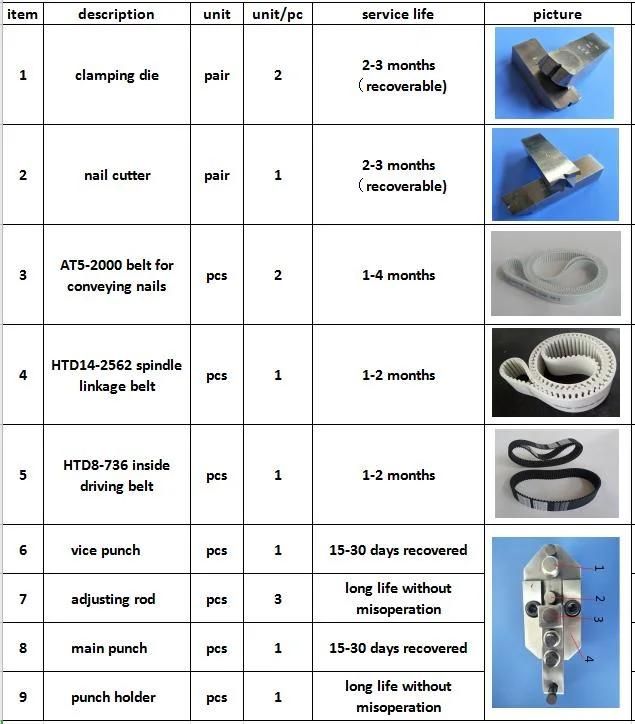

Wearing Parts
Successful Cases
Our Service
1. All required documents (including Installation/Operation/Service/Maintenance Manual) will be provided in English.
2. Engineer will give free training and guide to labors at customer's site if requested.
3. Commissioning charge is $150/day/engineer,and customer will be asked to provide room, meals, round-trip transportation for engineer.
4. We will offer life-long technical guide and maintenance.
Packing and Delivery
1. Shipping port: Shanghai
2. Validity: within 30 days
3. Payment terms: 30% T/T down payment in advance and 70% before shipment
4. Warranty: 1 year from date of installation
5. Installation/Operation/Service/Maintenance Manual: Provided In English
6. In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.

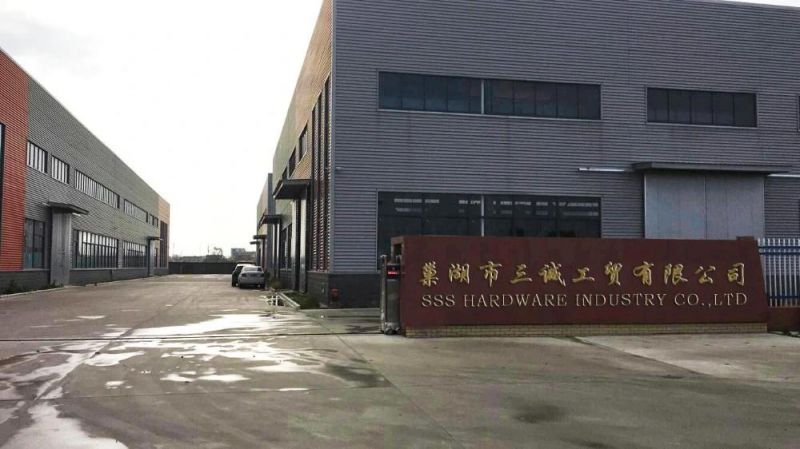

Company Profile
SSS HARDWARE INDUSTRY CO., LTD. specializes in nail making machine, high speed nail making machine, wire collating machine, nail polishing machine, wire drawing machine, staple making machine, thread rolling machine, and all kinds of nails . Our factory covers an area of 60,000 square meters and owns 300 sets of equipment. We are supported by seven branch work plants to ensure our good quality and prompt delivery. Quality is our priority and your satisfaction is what we are striving for.
Our products are very popular in UK , Italy, Germany, France, Poland, Slovenia, Bulgaria, Belarus, Serbia, Russia, Canada, America, Mexico, Korea, Brazil, Argentina, Colombia, Guatemala, Venezuela, South Africa & New Zealand. You can totally rest assured of our guaranteed quality and our good after-sales service. Please feel free to contact us for more details including prices.
Looking forward to cooperating with you soon based on our all-time guaranteed quality, best price and service !
