• Model NO.：COLO-800D
• Code：Colo-800d-L2-B
• Name：Vibrating Box Feed Powder Coating Unit
• Packaging：Carton,Wood Case
• Delivery：1-3 Working Days
• Power Range：220V
• Product：Vibrating Box Feed Powder Coating Unit
• Operational Method：Manual
• Packing Dimension：69X56X52cm
• Packing Weight：45kg
• Transport Package：Carton
• Specification：CE ISO
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：1000sets,Month

Basic Info.

Model NO. COLO-800D Code Colo-800d-L2-B Name Vibrating Box Feed Powder Coating Unit Packaging Carton/Wood Case Delivery 1-3 Working Days Power Range 220V Product Vibrating Box Feed Powder Coating Unit Operational Method Manual Packing Dimension 69X56X52cm Packing Weight 45kg Transport Package Carton Specification CE ISO Trademark COLO Origin China HS Code 8424899990 Production Capacity 1000sets/Month

Product Description

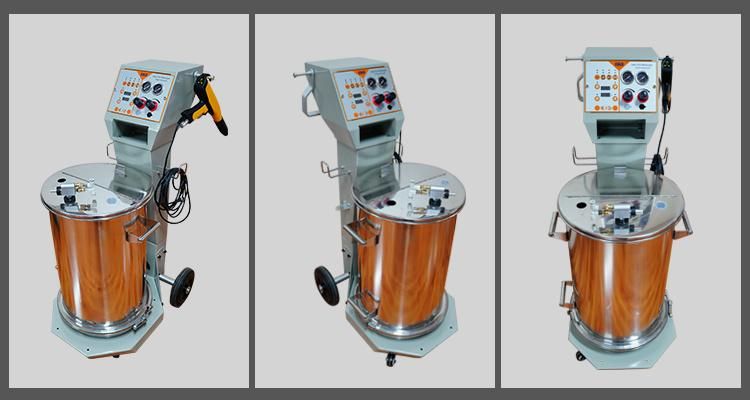

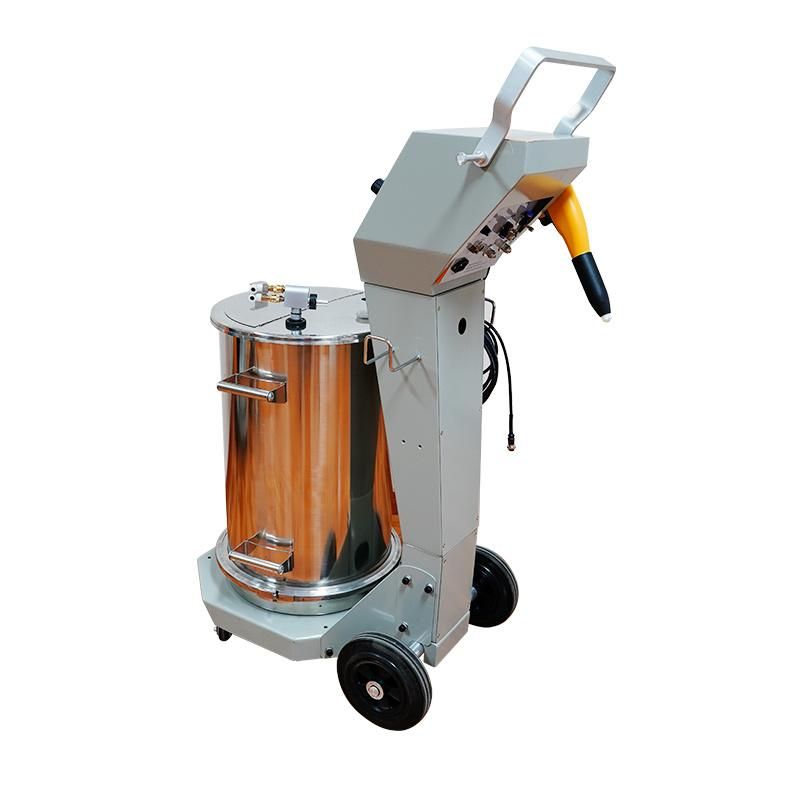

Vibrating Box Feed Powder Coating Unit
Model: COLO-800D-L2-B

The Vibrating Box Feed Powder Coating Unit supplies powder directly from customers' powder carton, which is for fast color change operation.

The structure including: a digital COLO-800D control unit, an easy operated spray gun, a flexible trolley and other spare parts, like powder pump, powder hose, air tube, cables, etc.

Techncial data of Vibrating Box Feed Powder Coating Unit
Electrical Data
Input Voltage: 100-240V (Can be customized)
Frequency: 50Hz/60Hz
Temperature Range in use: -10~50^oC

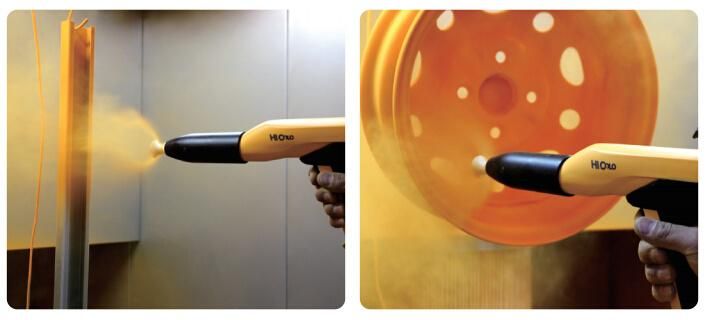

Power Gun
Working Voltage: DC 24V
Output Voltage: 0-100Kv(Adjustable)
Output Current: 180uA(Max.)
Maximum Powder Injection: 600g/min
Polarity: negative (-)
Pneumatic data
Maximum input-air pressure: 10kg/cm
Optimum input-air pressure 6kg/cm
Minimum input-air pressure 4kg/cm
Maximum water vapor content or compressed air 1.4g/N m3
Maximum oil vapor content of compressed air0. 1ppm
Maximum compressed-air consumption 13.2 m3/h

You can also choose double powder coating system, with 2 powder coating control units and 2 spray guns



More information contact with us
