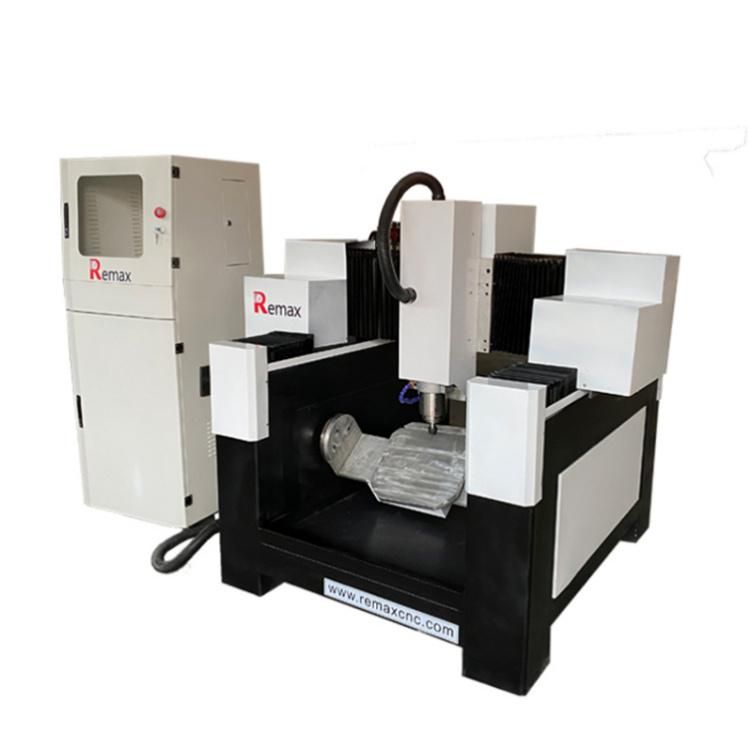

Metal CNC Router Engraving Machine Metal 5 Axis CNC Metal CNC Router 5 Axis CNC Milling Machine for Metal
Jinan Remax Machinery Technology Co., Ltd.- After-sales Service：1 Year
- Carving Material：Metal
- Controlling Mode：CNC
- Main Axle Rotational Speed：≤24000rpm
- Milling Cutter Diameter：Customized
- Feeding Height：Customized
Base Info
- Model NO.：6060
- Certification：CE
- Warranty：24 Months
- Customized：Customized
- Condition：New
- Product Name：Very Heavy Table Bed 5 Axis CNC Router Machine for
- X,Y,Z Working Area：600X600X200mm

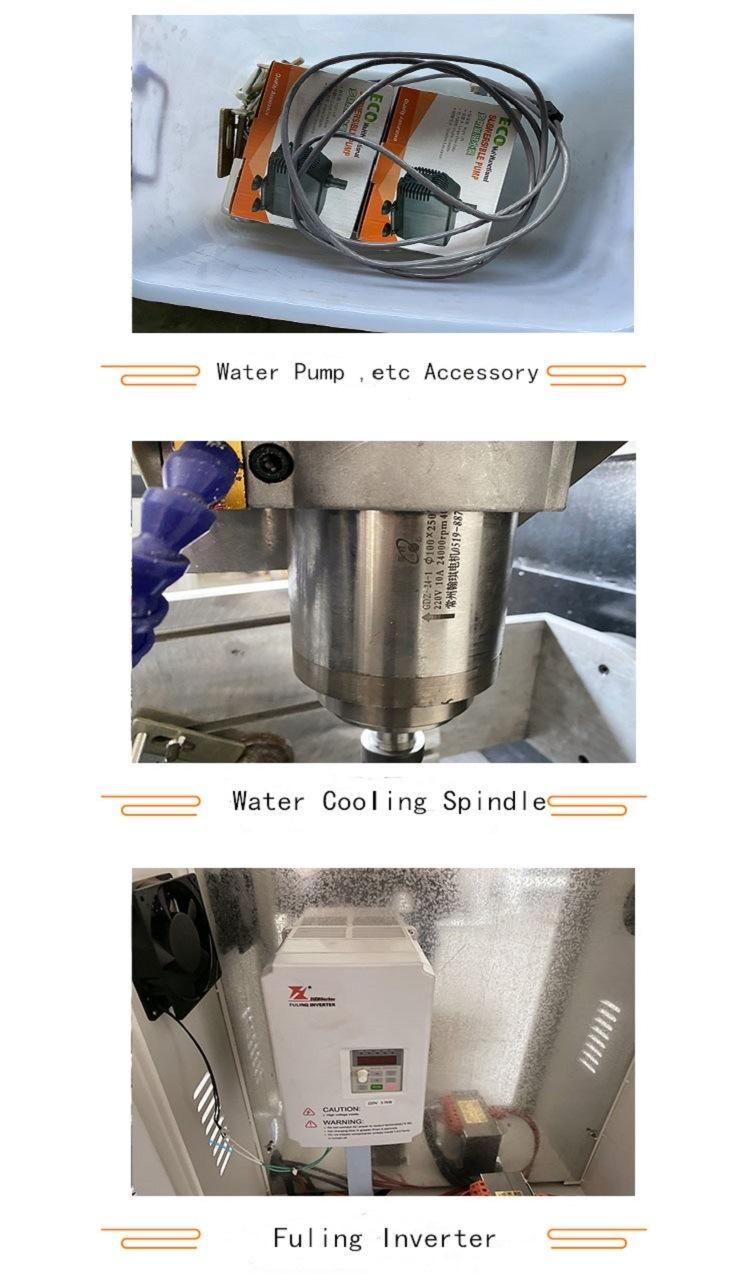

- Inverter：Fuling Inverter
- Limit Switch：Omron
- Table Surface：T-Slot Table
- Frame：Cast by Iron
- X, Y,Z Structure：Hiwin Rail Linear Guide and Ball Screw
- Spindle Power：4.5 Kw Water Cooling Spindle
- Spindle Speed：0-24000rpm
- Drive Motors：Servo Motor
- Transport Package：Container
- Specification：600x600x200mm
- Trademark：REMAX
- Origin：Shandong, China
- HS Code：8465990000
- Production Capacity：25,Month
Description
Overview
Product Description
Product Parameters
Product Parameters
| Description | Parameter of cnc milling machines |
| X,Y,Z Working Area | 600x600x200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | T-slot Table |
| Frame | cast by iron |

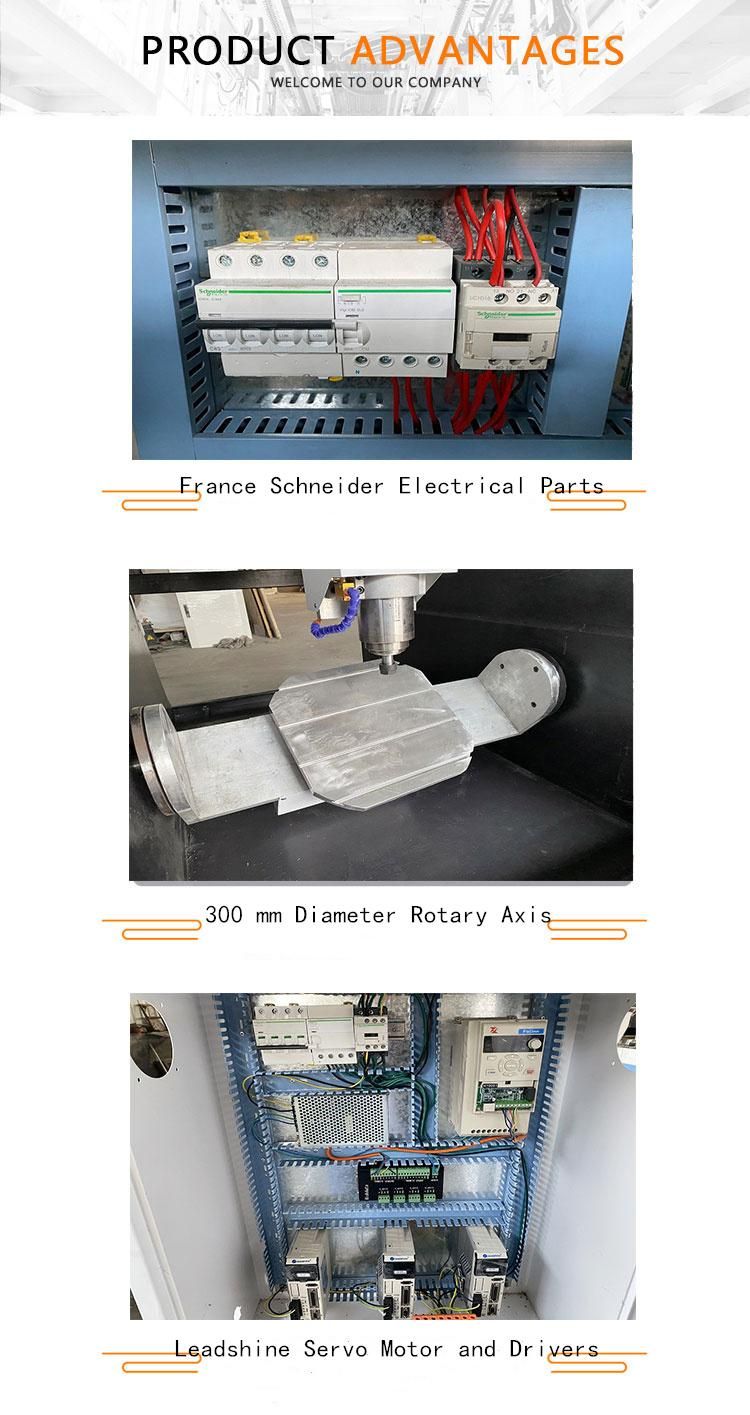

| rotary axis | with |
| X, Y,Z Structure | Hiwin Rail Linear Guide and Ball Screw |
| Max. Rapid Travel Rate | 16000mm/min |
| Max. Working Speed | 10000mm/min |
| Spindle Power | 4.5 KW water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Servo Motor |
| Working Voltage | AC220/380V/50/60Hz,3PH |
| Command Language | G Code |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Delta/Fuling |
| Electrical components | with |
| Operating System | NK280 (Options: Ncstudio/Mach3 PC Software,DSP) |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
