Prestressed Concrete PC Bar Induction Heating Machine Production Line
Hangzhou Suntech Machinery Co., Ltd.- Automatic Grade：Automatic
- Warranty：1 Year
- Certification：GS, RoHS, ISO, CE
- Transport Package：Seaworthy Packing
- Specification：7mm-13mm
- Trademark：SUNTECHMACH
Base Info
- Model NO.：7mm-13mm
- Origin：China
- HS Code：846330
- Production Capacity：500 Sets,Year
Description
No.
Item
Specification
1
Raw material
30MnSi,30Si2Mn and other alloy spring steels
2
Diameter
Φ 7.0-13.0mm
3
Working speed
90-100m/min for type φ 7.1mm;
80-90m / min for type φ9.0mm;
65-70m/min for type φ 10.7mm;
40-45m/min for type φ 12.6mm.
4
Induction quenching temp.
≤950ºC constant and adjustable
5
Induction tempering temp.
≤450ºC constant and adjustable
6
Temp. control accuracy
≤ ±5ºC
7
Take-up coil dimension
φ1800-φ2400mm
8
Pay-off
Horizontal rotating type pay off
9
Center elevation
1000mm
10
Production method
Continuous production
11
Finished products
1) Products keep consistence with "GBT5223.3-2005" and "JISG3137-1994"

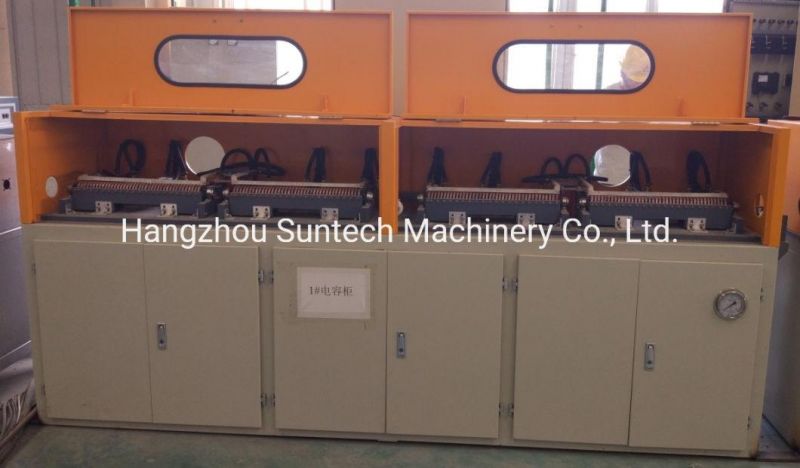

III. Details of machine for reference:
IV. Our Workshop:
V. Clients list for reference:
