• Model NO.：COLO-S-3212
• Warranty：12month
• Transport Package：as Export Standard
• Specification：Tunnel powder booth
• Trademark：COLO
• Origin：China
• Production Capacity：50set,Month

Basic Info.

Model NO. COLO-S-3212 Warranty 12month Transport Package as Export Standard Specification Tunnel powder booth Trademark COLO Origin China Production Capacity 50set/Month

Product Description

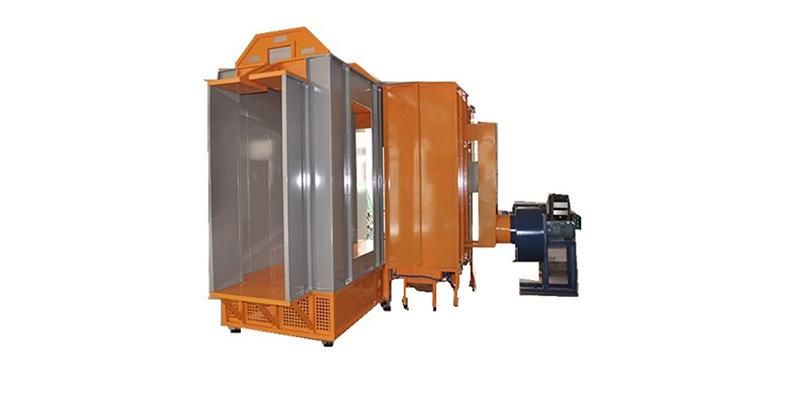

Tunnel Powder Spraying Booth Powder Coating BoothBrief Introduction

COLO-3212 is designed for pass through type powder coating.Parts enter the booth through the conveyor system openings,then pass the coating operator stations to receives the coating.The powder overspray is entrained within the air stream moving to the collector module,where the cartridge filters will remove the particulate.The containment air is drawn throught the air handler's primary and final filter system before being discharged back into the room.Coated parts exit the booth for conveyance to the cure onen.

Two door painting powder coating booth Features

1. Parts are pass thru the spray booth,hang on the conveyor system

2. have two powder coating door gate for staff to do coating jobs

3. filter cartidges ,polyester material,detachable

4.Booth material adopt good quality galvanized steel ,SPCC

5.Durable ,moveable

Inner side: 3000width*1200depth*2033mmHeight
Body material δ=1.2mm cold plate, fold. with a powder hopper
Fliter number 4 pcs/set Flither,Size same as original fast-loading
Recycling fan1/set

Specifications

Model	COLO-3212
Inner size	620width x 1500 height x 2920 depth (2PCS)
Overall size	1200width x 2033 height x 3000 depth
Booth Type	Pass-through
Certificate	CE
Power supply	Electric
Application	Powder coating recycle
Voltage	380V
Frequency	50-60Hz
Filters	Polyester
Filters count	4
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Warranty	12 months

Technical Parameters
Construction: The booth walls and roof are made of galvanized steel.The booth utilizes a single panel design.
Lighting: Integrated lllumination.The spray enclosure includes roof-mounted light fixtures,These fixtures are mounted on special panels that include factory-provided reinforcement.
Exhaust system: The booth uses either one or two floor mounted exhaust units. The exhaust unit is constructed of primarily galvanized steel.
Control Panel: The booth is operated via PLC control panel. The control panel allows the operator to stop and start the exhaust fan and turn the lights on and off.

Delivery
We deliver a complete set of powder spray booth,the fan motor and filters will be disassemble to avoice they might damage during transport,but do not worry,they are easy and simple to assembl.

Send Us Enquiry

If you are looking for powder spray booth right now or other machines in powder coating line,please feel free to contact us for further discuss
