Single Wire of CS-B Type Barbed Wire Machine
Anping County Hengtai Wire Mesh Machine Produce Co., Ltd.- After-sales Service：Online
- Warranty：One Year
- Nominal Voltage：380V or Customized
- Weight of Machine：750kgs
- Transport Package：Plastic Bag, Also Can Made as Your Request
- Specification：Single wire
Base Info
- Model NO.：CS-B
- Trademark：HENGTAI
- Origin：China
- HS Code：8463300000
- Production Capacity：10 Sets,Month
Description

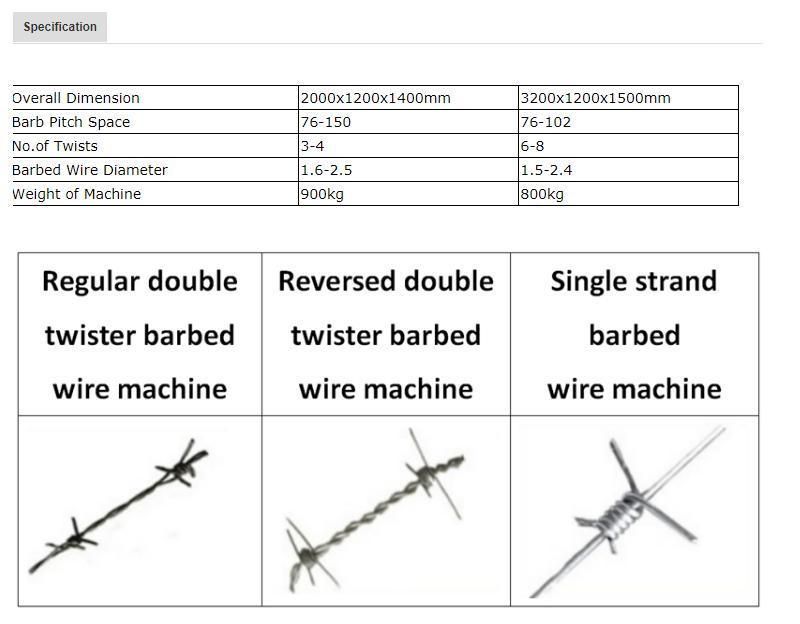

Overall Dimension
2000x1200x1400mm
3200x1200x1500mm
Barb Pitch Space
76-150
76-102
No.of Twists
3-4
6-8
Barbed Wire Diameter
1.6-2.5
1.5-2.4
Weight of Machine
900kg
800kg

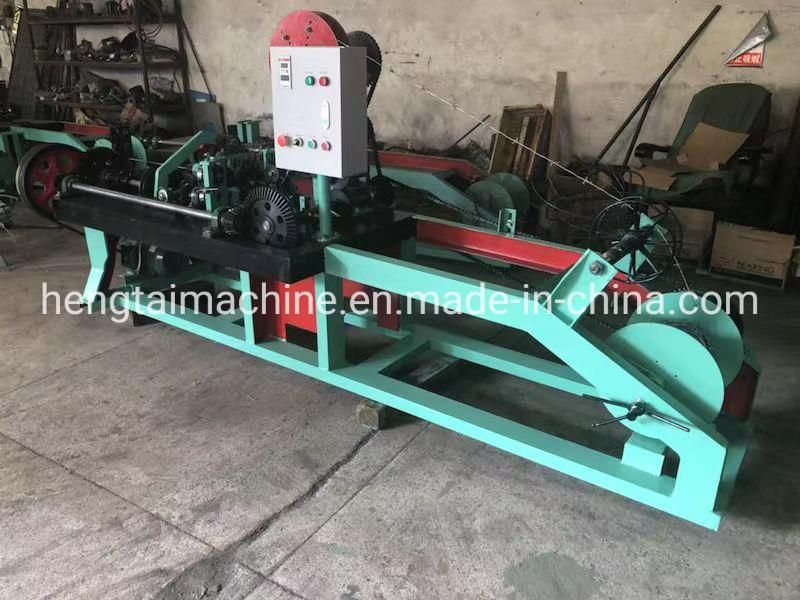

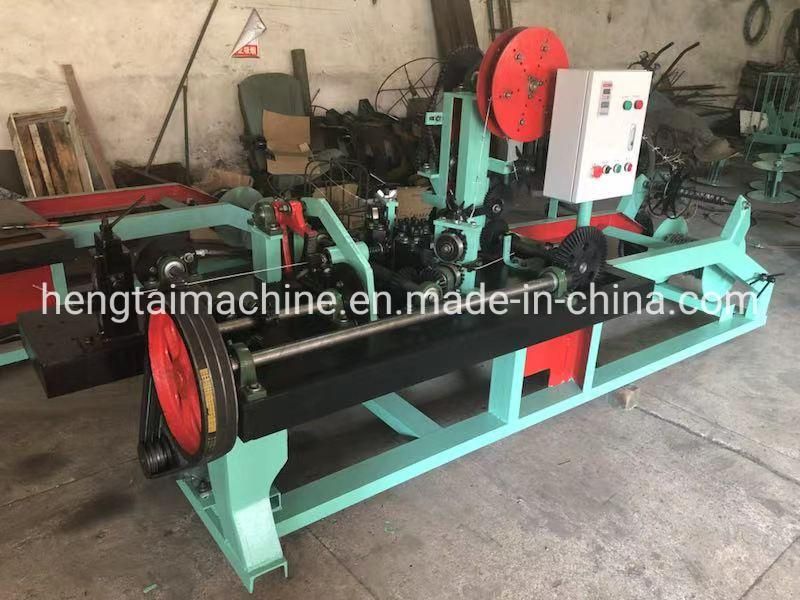

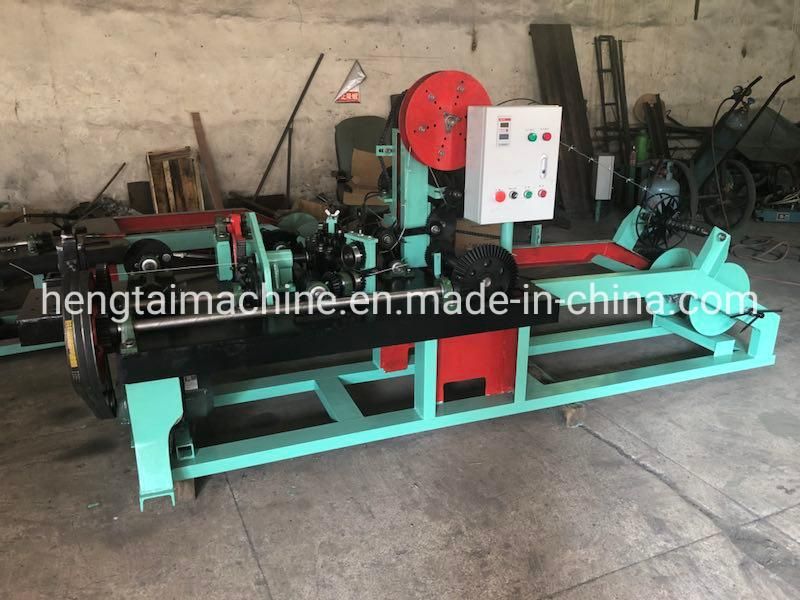

CS-B type barbed wire machine consists of two parts: winding barb wire and take up the wire, and supporting three sets wire pay off stand. The machine is easy to operate, stable in operation, low in noise and energy-consuming. And using advanced electronic counting control, it is the only equipment in China that produces barbed wire.
The specifications of the model for the production of barbed wire are shown in Table (1).
Table (1)
| Item | Name | Unit | Parameter |
| 1 | Barbed space | mm | 75,100,125,150 |
| 2 | Main wire diameter | mm | 1.3---3.2 |
| 3 | Side wire diameter | mm | 1.3---3.2 |
CS-B type barbed wire machine's main parameter are shown in table(2)
Table(2)
| Item | Name | Unit | Parameter |
| 1 | Motor | Type | Y100L2-4 |
| 2 | Motor power | KW | 2.2 |
| 3 | speed of mainshaft | R/MIN | 400 |
| 4 | Dimension | MM | 2700*1100*1300 |
| 6 | Weight | KG | 750 |
| 7 | Theory output | KG/H | 60 |
As the picture above showing, there are 3 kinds of barbed wire machines.
Before ordering, please make sure Which Kind of Machine you would like to buy.

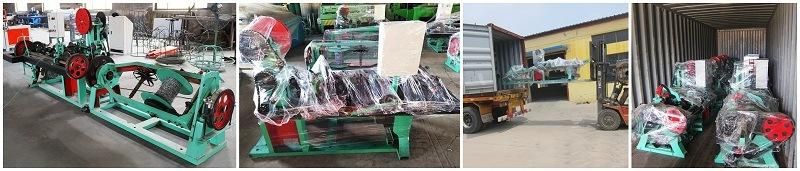

Packaging & DeliveryPackaging Detailsplastic: package or wooden box
Port: Tianjin
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. It needs one 20 feet or 40 feet container for shipment.
Q: Are you the factory?
A: Yes,We are a professional wire mesh machines manufacturer. We dedicated in this industry for 18 years. We can offer you competitive machines.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Anping county, hebei Province, China, about 2.5 hours by car from Beijing .All our clients, from home or abroad, are warmly welcome to visit our company !
Q: What is the voltage ?
A: To ensure each machine runs well in different country and region, we will choose different voltage like 220V 50HZ; 380V 50HZ; 415V 50HZ;440V 60HZ etc
Q: How much is your machine ?
A: The price is depended on 3 factors:wire diameter, mesh size,and mesh width.
Q: What is your payment terms?
A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
Q: How long is your delivery time?
A: If we have in stock, delivery to Tianjin port about 5 days, No stock, it will be 30 days after received your deposit.
