• Model NO.：ZLC-1000T
• Certification：CE, ISO9001
• Clamping Force：10000 Kn
• Platen Size：1620 X 1620 mm
• Distance Between Tie Bars：1030 X 1030 mm
• Transport Package：Wooden Package
• Specification：ZLC-1000T
• Trademark：ZHENLI
• Origin：China
• HS Code：84543010
• Production Capacity：100 Pieces , Year

Basic Info.

Model NO. ZLC-1000T Certification CE, ISO9001 Clamping Force 10000 Kn Platen Size 1620 X 1620 mm Distance Between Tie Bars 1030 X 1030 mm Transport Package Wooden Package Specification ZLC-1000T Trademark ZHENLI Origin China HS Code 84543010 Production Capacity 100 Pieces / Year

Product Description

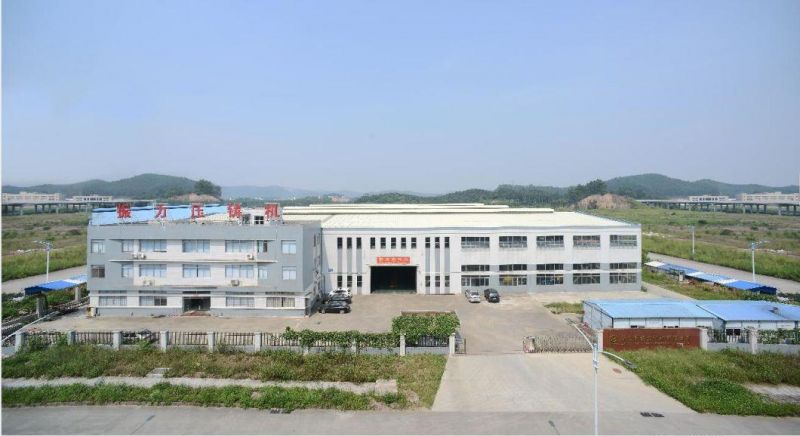

JIANGMEN ZHENLI MACHINERY CO.,LTD
Located in Jiangsha industrial district of Jiangmen city, ZHENLI is a high-tech company specializing in R&D,design, production, export , sales and after-sales service .Since its foundation in 2002, after a decade's development and dedication, Zhenli has developed into a modern factory with imported CNC machining center,gantry milling, planer, grinder and other advanced equipment.The main products include ZL-serial hot chamber die casting machine , ZL-serial cold chamber die casting machines,servo die casting machine, real-time control die casting machine, magnesium alloy die casting machines and its full automatic peripherals , etc .

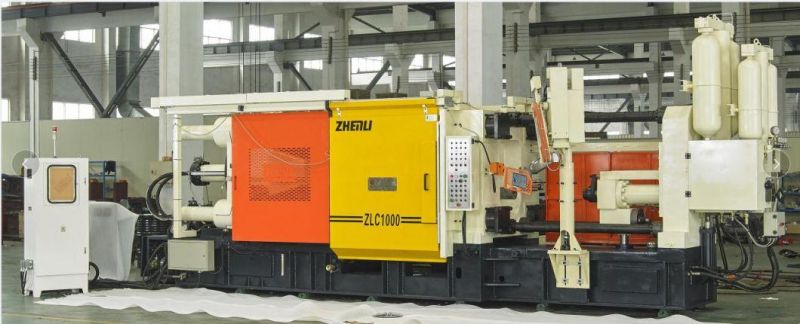

Our ZLC-1000T Cold Chamber Die Casting Machine For Aluminium Alloy
Zhenli ZLC-1000 Ton Aluminium LED Street  Lighting Casting Machine

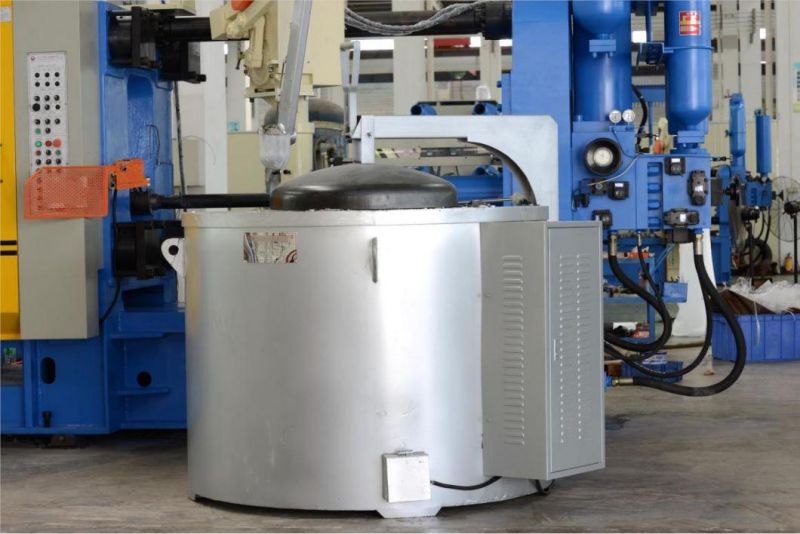

Melting Furnace

1. There are three types of furance for your choice , namely electric , nature gas and diesel oil.
2. Here above is 800 kgs capcity Electric Furnace.

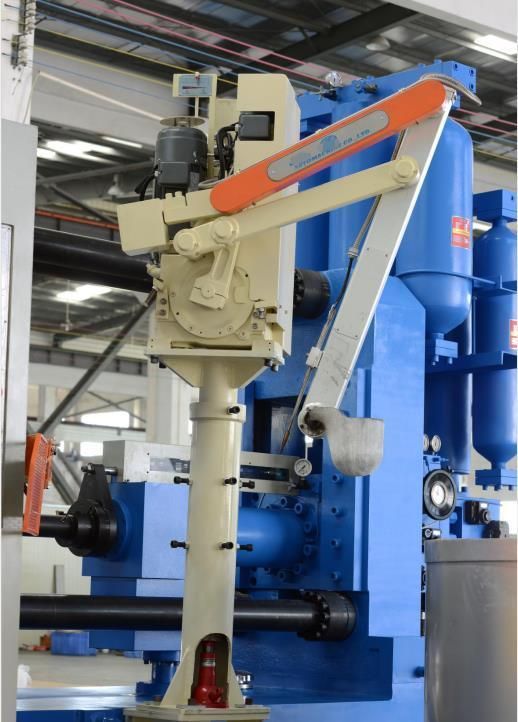

Auto Ladle Machine


1. In five linkages structure, this ladle machine is driven by double gears, stable an efficient.
2. The arm can be stopped smoothly even when working at a high speed.
3. Controlled separately bu inverters,easily operated.
4. The electrical components are controlled by PLC, and are equipped with an alarm system.

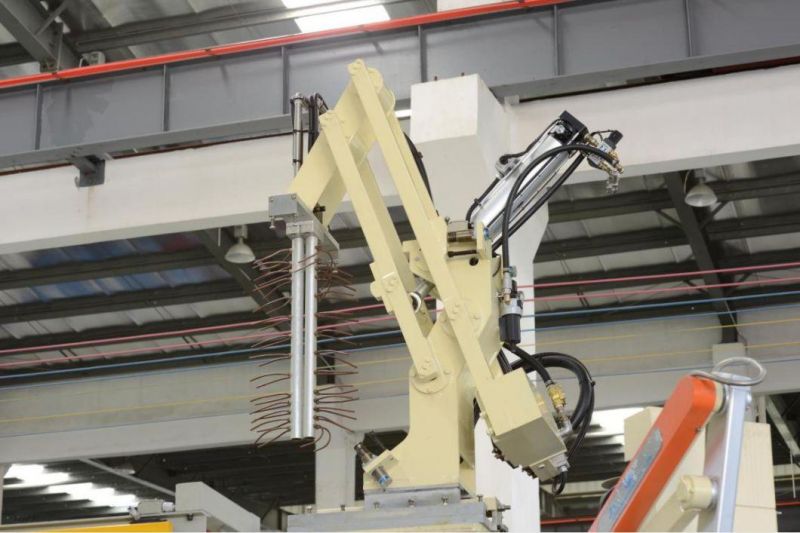

Automatic Spraying Machine

1. In a simple and durable structure.
2. Has a good effect of spray, especially for the thin parts.
3. You can adjust parameters independently.
4. Has a good function of avoiding falling-down.
5. Controlled by PLC, equipped with alarm system, easy for maintenance.

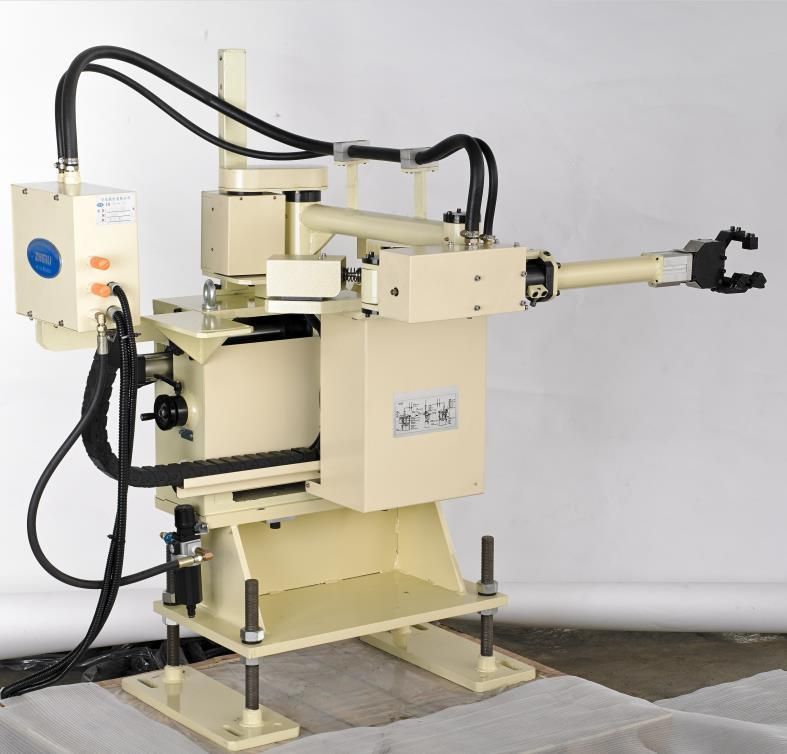

 Automatic Extractor Machine

1. Its arm can rotate 90 degree,which leaves enough space for mold change
2. The picking point is precise,and the hand diameter can be set according to the size of castings
3. You can choose such functions as arm forward , which can raise the fetching speed and improve productivity

Technological Date

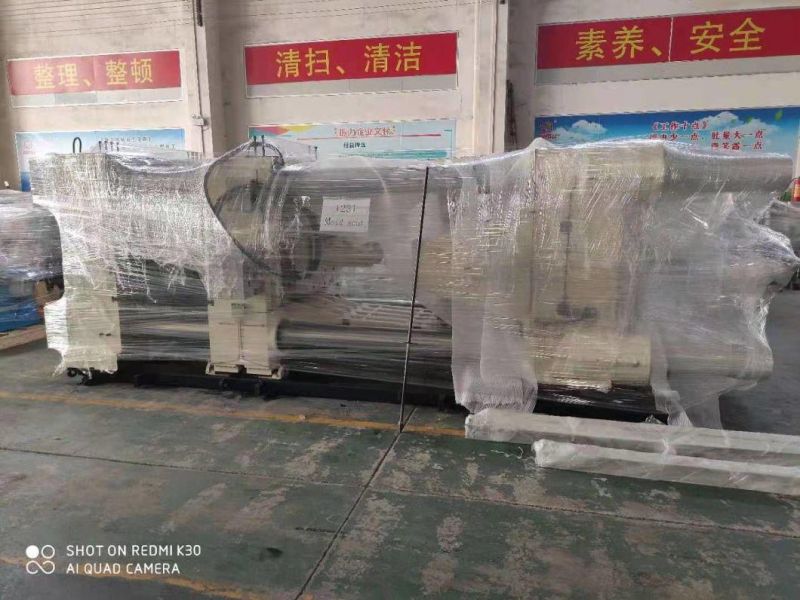

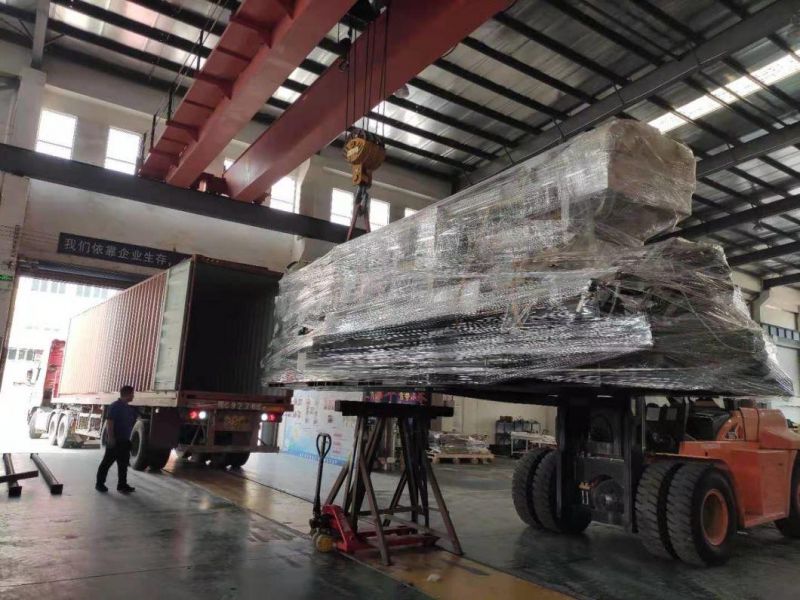

Loading Container
To safety transporation , we released all nitrogen gas.


 Technician Data

ITEMS	UNIT	ZLC-1000
Clamping Force	kN	10000
Die Opening Stroke	mm	880
Ejector Force	kN	500
Ejector Stroke	mm	210
Die Height(Min.-Max.)	mm	400-1150
Platen Size(HXV)	mm	1620×1620
Space Between Tie Bars	mm	1030×1030
Shot Position	mm	0,-300
Shot Strock	mm	820
Casting Force(intensify)	kN	870
Plunger Diameter	mm	90-120
Shot Weight(Aluminum)	kg	9.5,11.7,14.2,17
Casting Pressure(with intensification)	MPa	138-77
Casting Area	cm²	730-1305
Max Casting Area Under 40MPa	cm²	2500
Diameter Of Pressure Chamber Flange	mm	240
Height Of Pressure Chamber Flange	mm	20
Plunger Penetration	mm	305
Driving Motor	Kw	55
Hydraulic Working Pressure	MPa	160
Hydraulic Oil Tank Capacity	L	1400
Machine Dimensions (L×W×H)	mm	10950×3300×3950
Referential Machine Weight For Uplifting	T	70

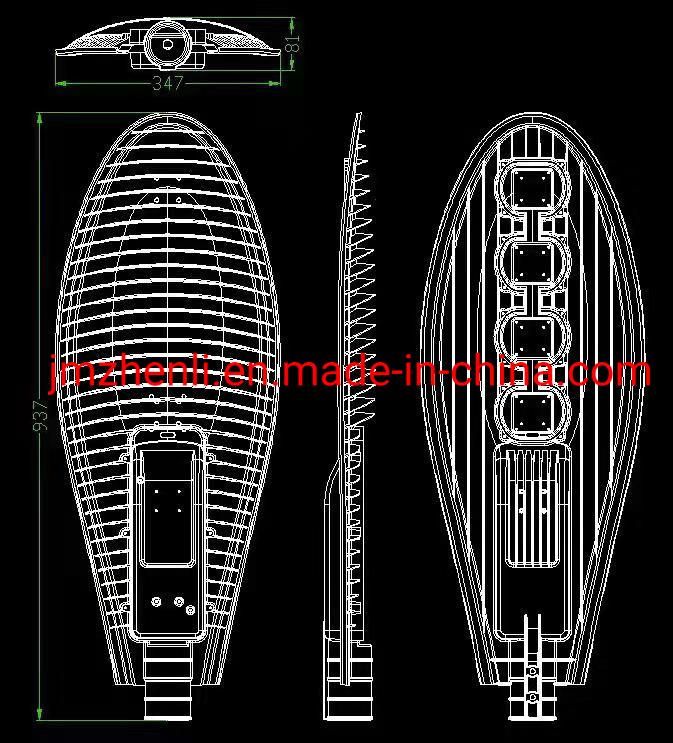

Aluminium LED Street  Lighting
