Customizable Pulsed Laser Sputtering Deposition System for Laboratory Coating
Zhengzhou CY Scientific Instrument Co., Ltd.- Type：Coating Spray Gun
- Coating：Vacuum Coating
- Substrate：Steel
- Certification：CE
- Condition：New
- Vacuum Chamber Material：High-Quality Stainless Steel
Base Info
- Number of Targets：Four
- Target Size：Diameter 60mm and Diameter 25mm
- Substrate Heating Maximum Temperature：800c+-1c
- Transport Package：Standard Export Wooden Box Packaging
- Specification：vacuum chamber diameter 450mm
- Trademark：CYKY
- Origin：Zhengzhou, China
- HS Code：8424899990
- Production Capacity：200 Sets Per Month
Description
2. Vacuum coating chamber

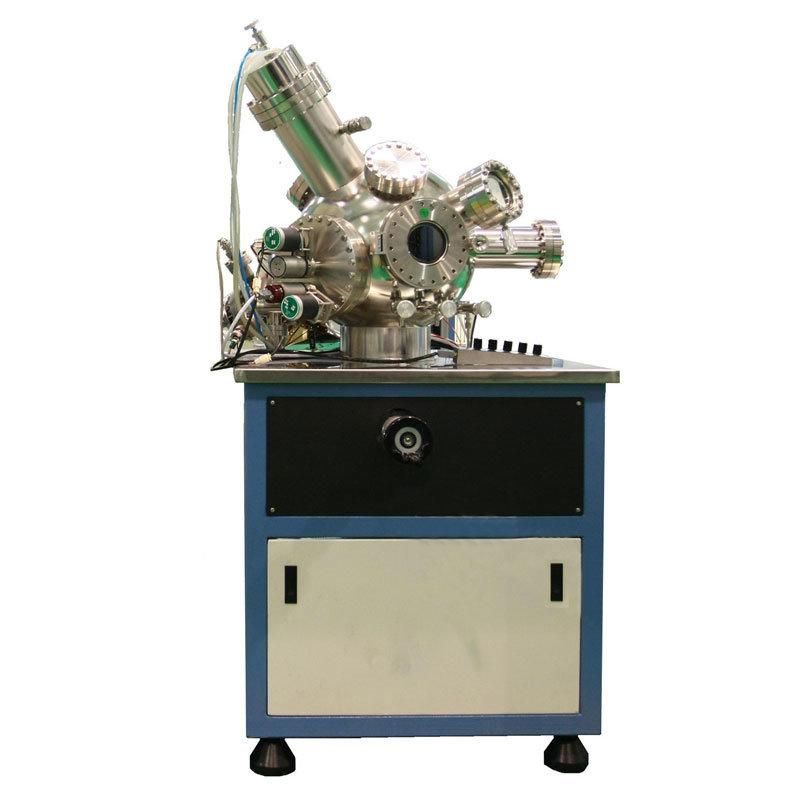

1) 1 set of sputtering vacuum chamber components
The size of the spherical vacuum chamber is Ф450mm. It is made of high-quality stainless steel. It is welded by argon arc. The surface is polished by a special process. The interface is sealed with a metal gasket or a fluorine rubber ring.
2) 1 set of rotating target platform components
(1) Four targets can be loaded at a time, target size: (i) Φ60mm and (ii) Φ25mm;
(2) Each target can realize rotation, the rotation speed is 5~60 rpm, continuously adjustable, controlled by the motor-driven magnetic coupling mechanism;
(3) The target position revolution transposition mechanism is controlled by the motor driven magnetic coupling mechanism.
(4) The target material shield shields 4 targets, and only one target material is sputtered into the film at a time, so as to avoid cross contamination between the target materials.
3) Antioxidant substrate heating table assembly 1 set
(1) substrate size: φ2 ″ substrate can be placed;
(2) The maximum temperature of substrate heating is 800ºC±1ºC, controlled by thermocouple closed-loop feedback, and the heater is made of antioxidant material.
(3) The substrate can rotate continuously, the speed is 5~60 rpm, controlled by the motor-driven magnetic coupling mechanism;
(4) The distance between the substrate and the target platform is adjustable from 30 to 90mm and controlled by a manual bellows adjustment mechanism outside the chamber;
(5) Manual control sample baffle components: 1 set;
(6) Sample holder: 2;
4) Window and flange interface parts 1 set
5) Laser beam scanning control system 1 set
Two-dimensional scanning mechanical platform, two sets of motor control, or manual control;
6) Working gas line 2 channels
7) gas pumping unit, valve, pipeline 1 set
8) 1 set of machine mounting frame assembly
High quality square steel profile welded, quick unloading coaming surface spray treatment; Machine surface with stainless steel skin decoration; four casters can be fixed and movable
9) Vacuum measurement and electrical control system 1 set
10) Computer control system 1 set

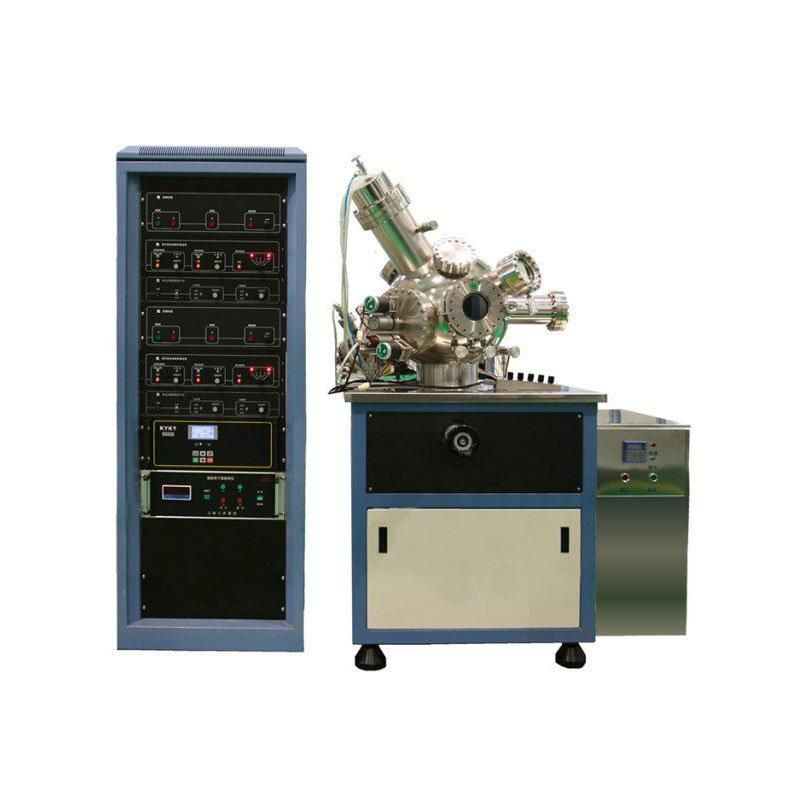

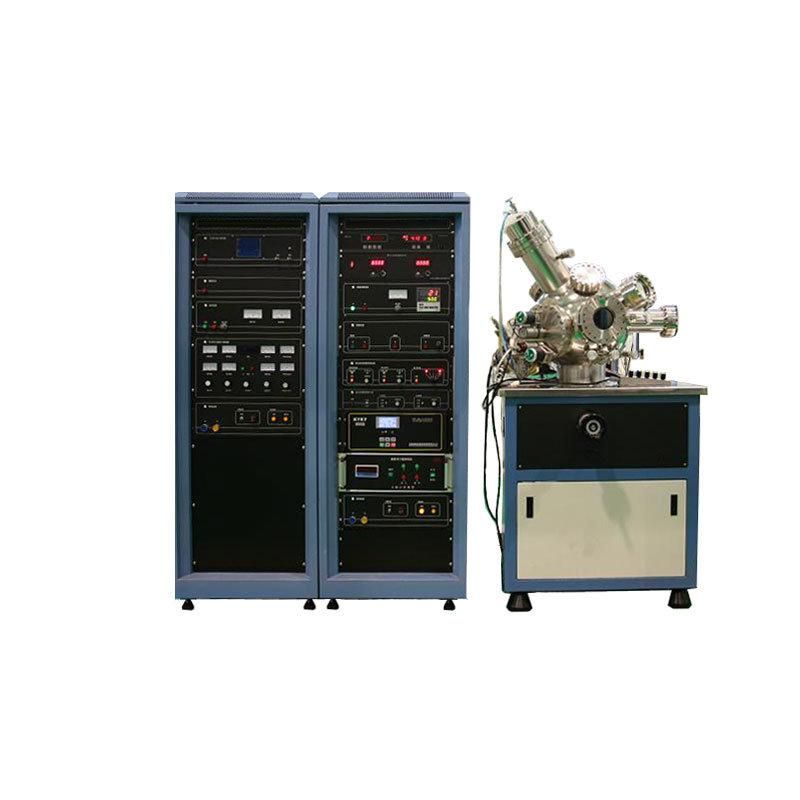

Related photos of Customizable pulsed laser sputtering deposition system:
