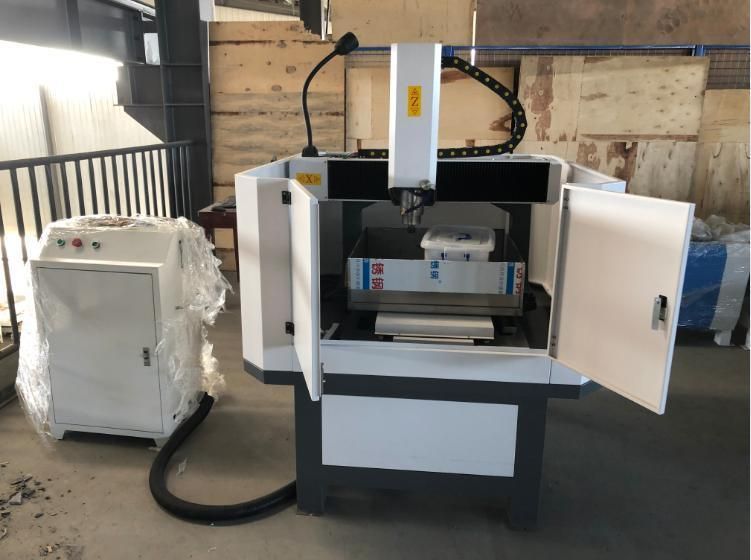

Mini CNC Woodworking Router Metal Milling Cutting Engraving Machine
Jinan Zhongke CNC Equipment Co., Ltd.- Carving Material：Stainless Steel
- Controlling Mode：CNC
- Main Axle Rotational Speed：≤24000rpm
- Milling Cutter Diameter：3mm
- Feeding Height：150mm
- Certification：CE
Base Info
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Item：6060 Metal CNC Router
- Working Area：600X600mm
- Control System：Ncstudio
- Z Working Area：150mm
- Spindle Power：2.2kw
- Precision：0.05mm
- Work Mode：Servo Motor
- Machine Structure：Cast Iron
- Working Voltage：380V ,50-60Hz
- Key Words：CNC Router
- Transport Package：Plywood
- Specification：ce
- Trademark：zhongke
- Origin：Jinan, Shandong
- HS Code：84659900
- Production Capacity：500 Sets,Year
Description
Product Description
Characteristic
1. servo motor and drivers
2. Cast iron, heavy machine body
3. water cooled spindle professional for metal
4. Compatibility software: support type3,march3.artcam,artcut and wentai that generated by CAD /CAM.
5.Taiwan SYNTEC or Shanghai Ncstudio, or DSP control system, optional
Specification
Parameters
Item
Value
Working area
600mm x 600mm
Z working area
150mm
Control system
NCstudio
spindle power
2.2Precision
0.05mm
Surroundings of software
Windows 98/2000/xp
Interface
USB
Work mode
servo motor and driver
Machine structure
cast iron
warranty
one year
Gantry structure
Steel plate
Working voltage
380V /50-60HZ
Package
Plywood
Package
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

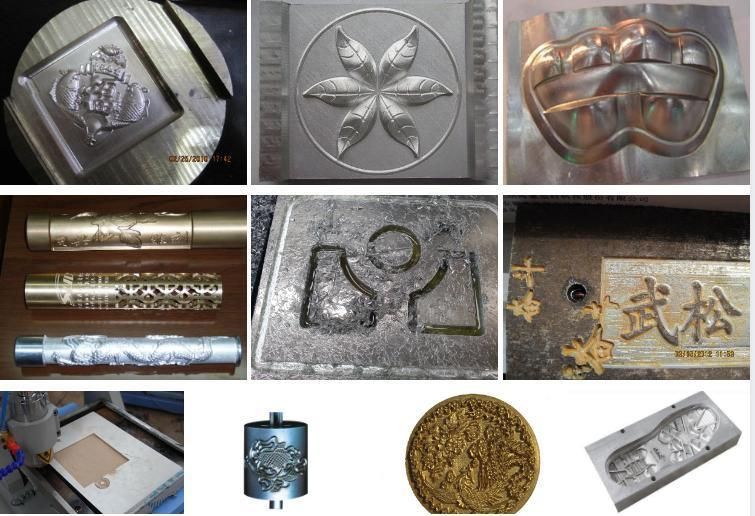

Sample photos
Guarantee & After Sales Service
1) The whole machine guarantee is 12 months except for special parts.
2) 24 hours technical support by phone, email or MSN, skype etc.
