• Model NO.：HF-40AB
• Trademark：ORD
• Origin：China
• HS Code：8514400090
• Production Capacity：10, 000sets

Basic Info.

Model NO. HF-40AB Trademark ORD Origin China HS Code 8514400090 Production Capacity 10, 000sets

Product Description

Induction Heating Machine:
Advantage:
1 More than ten years experience,stable and goods performance
2 CE certificated
3 Copperated with ZHOUDAFU, Matsushita,Foxconn, Media, Gree a6nd ZHIGAO Air conditioner.

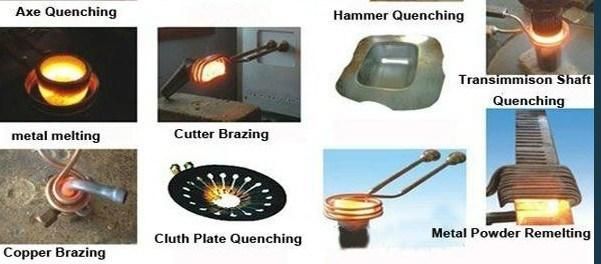

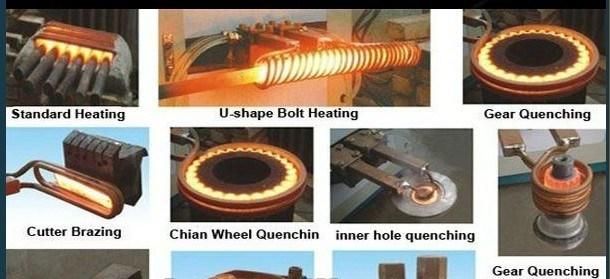

4 Suitable  for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
7 Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;

Type	HF-40AB
Work Power	3*380v/415v/440v/480v  50-60hz
The range of operating voltage	340-430V AC
Output power	40KW
Input current	40A
Fluctuating frequency	30-80khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 10L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:42Kg    Transformer:32kg
Size	Main Parts: Main Parts:640*280*550mm Transformer: 510*260*410mm
