• Model NO.：CY-100A
• Motor Power：150W
• Vacuum Chuck：PP
• Warranty：One Year
• Transport Package：Wooden Box
• Specification：4"
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：85141090
• Production Capacity：350 Sets Per Month

Basic Info.

Model NO. CY-100A Motor Power 150W Vacuum Chuck PP Warranty One Year Transport Package Wooden Box Specification 4" Trademark CY Origin Zhengzhou, China HS Code 85141090 Production Capacity 350 Sets Per Month

Product Description

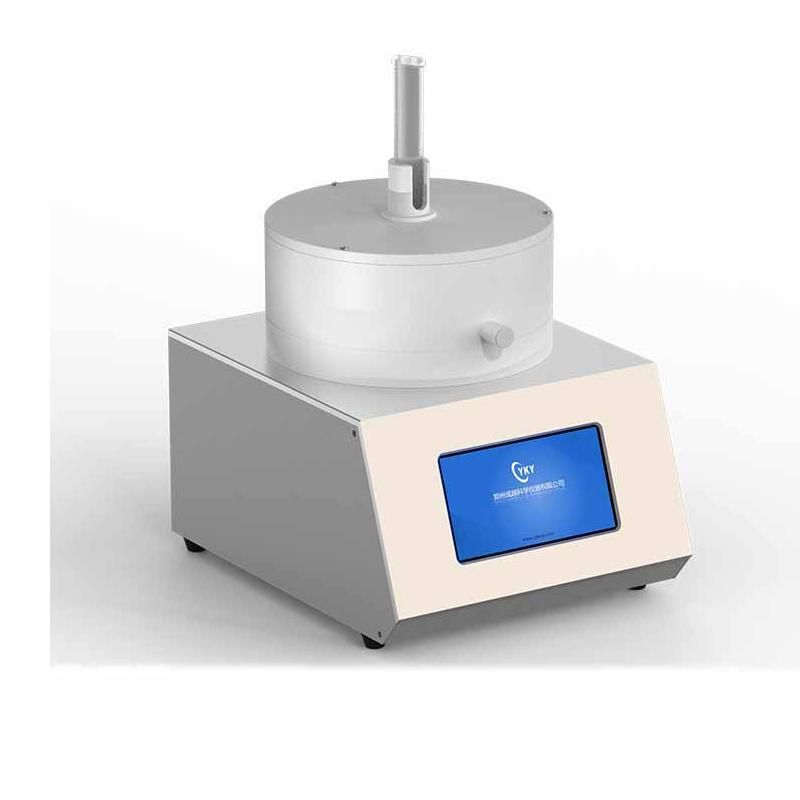

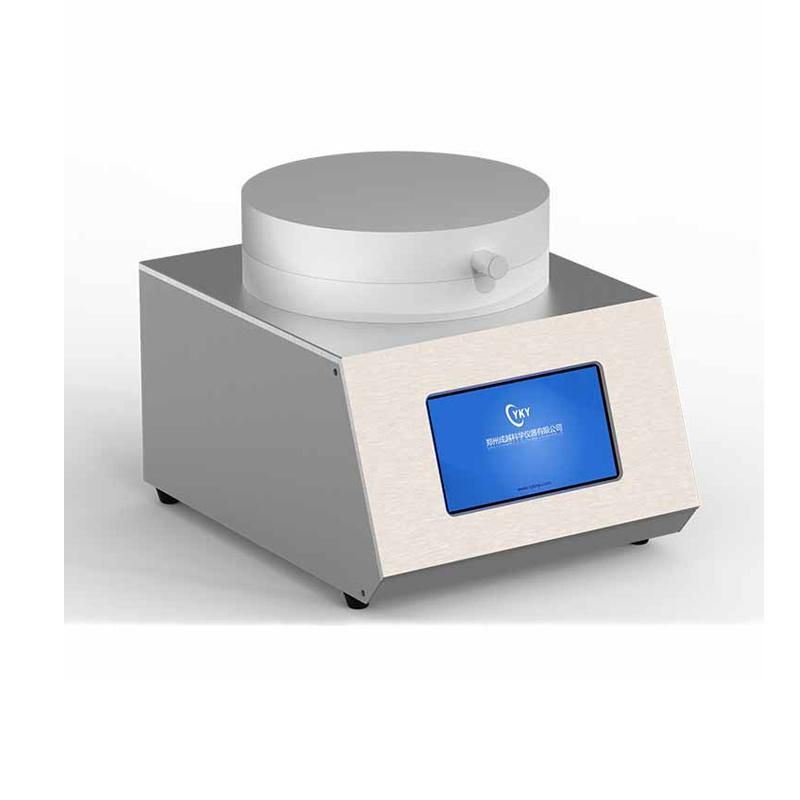

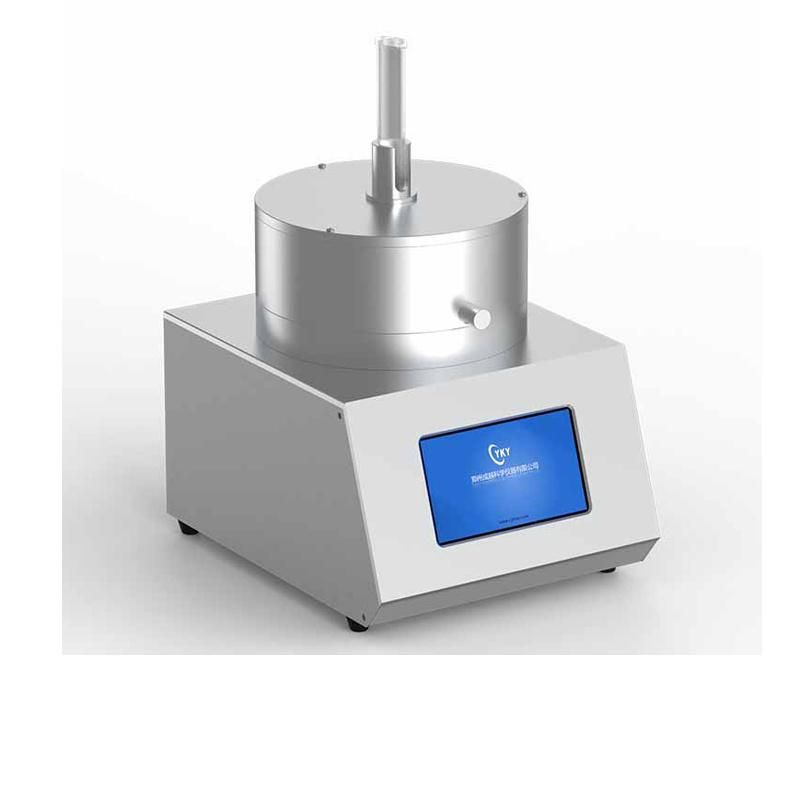

Compact Spin Coate ( Max. 8000 rpm, 4" wafer Max.) with 3 Sets of Vacuum Chucks & Complete Accessories
Introduction
is CE certified compact spin coater with vacuum chucks designed for easy and quick coating via sol-gel for wafers up to 4". The spinning speed is variable from 500-8000 rpm with two programmable segments. The package comes included with complete accessories for immediate use. The latest versions have the vacuum chuck and liquid disk made of Polypropylene (PP).
Specification

Structure	Aluminum casting case to keep spinning stable Liquid disk made of Polypropylene (PP) to resist most of corrosive solutions Drainage outlet and vacuum pump connector are on back panel One filter is included in standard package. It is used to connect the pump and coater for preventing waste water from flowing into the pump One oil-less vacuum pump is included in the standard package, please click here for specification details.
Chamber  & Vacuum Chuck	Chamber Diameter: 145 mm 3 sets of PP anti-corrosive vacuum chucks come in different sizes (1'', 2'' and 4'') 1 piece of adhesive tape (6'' W x 24'' L) is included  for coating irregularly shaped substrates (e.g. Place the irregular substrate on the adhesive tape, then the vacuum chuck will hold the tape by suction) Mini suction cups are available for small wafer with less 1" dia. or substrate with regular  ( 5x5, or 10x10mm)or irregular shape.
Vacuum Pump	Vacuum pump is included. For 110V version, a 120L/min Oil-less Vacuum Pump is included. For 220V version, a Single Step Rotary Vane Vacuum Pump with advanced exhaust filter is included.
Spin Speed	Digital control panel with two programmable segments of different spin times (1~60s) and speeds 500 - 8000 RPM adjustable spinning speed
Liquid Injecting	20mL syringe is used to contain the coating material. The syringe holder height can be adjusted and rotated freely along the support rod. Optional:   You may choose Precision Electronic Single Channel Pipette: 20 - 200uL for more accurate coating Using plasma-cleaner to treat substrate surface before coating can improve film quality
Input Power	110VAC or 220VAC please select the voltage in option bar.
Motor Power	150W
Product Dimensions	13''(L) x 10''(W) x 8.5''(H)
Compliance	CE Certified
Warranty	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Application notes	In order to achieve optimal coating quality, please consider cleaning substrates by a plasma cleaner (click picture below for more details) prior to coating. This will significantly reduce the surface tension on the substrates. You may consider our new product: Heatable syringe and spin coater with heatable cover
