Atmosphere Controllable Spin Coater with Complete Accessories
Zhengzhou CY Scientific Instrument Co., Ltd.- Type:Powder Coating Booth
- Coating:Vacuum Coating
- Substrate:Ceramic
- Certification:CE, TUV
- Condition:New
- Vacuum Chuck:PP Anti-Corrosive Chuck
Base Info
- Model NO.:CY-200PV
- Spin Speed:500-8000rpm
- Liquid Injecting:20ml
- Name:Atmosphere Controllable Spin Coater
- Warranty:One Year
- Transport Package:Wooden Box
- Specification:dia. 150mm
- Trademark:CY
- Origin:Zhengzhou, China
- HS Code:8486109000
- Production Capacity:210 Sets Per Month
Description
Basic Info.
Model NO. CY-200PV Spin Speed 500-8000rpm Liquid Injecting 20ml Name Atmosphere Controllable Spin Coater Warranty One Year Transport Package Wooden Box Specification dia. 150mm Trademark CY Origin Zhengzhou, China HS Code 8486109000 Production Capacity 210 Sets Per MonthProduct Description

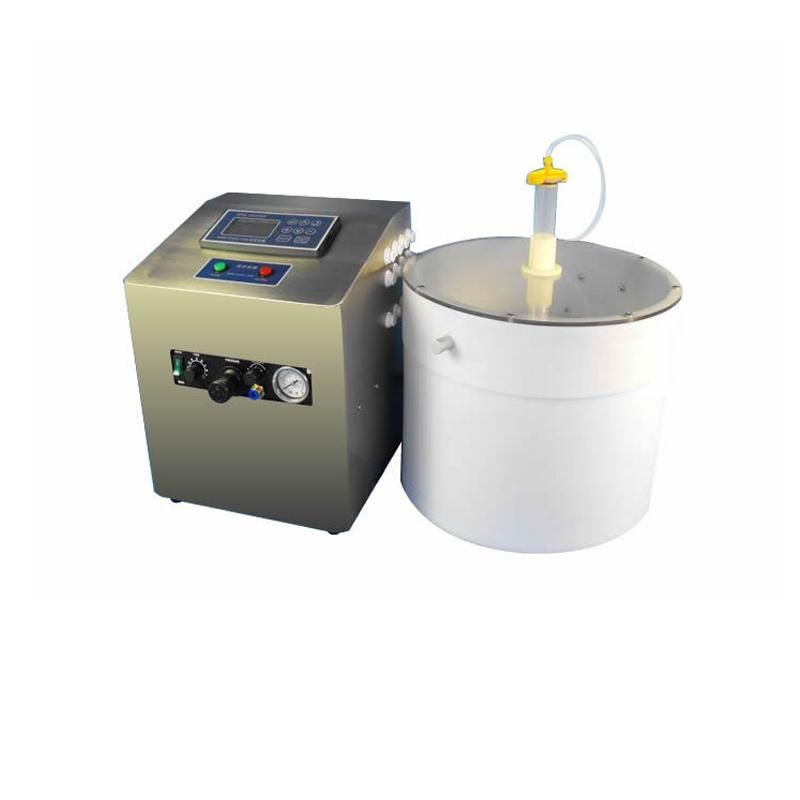

Atmosphere Controllable Spin Coater ( 8K RPM & 6" wafer Max.) with Complete Accessoriesis an atmosphere-controllable spin coater with Polypropylene air tighten, which can make spin coating either under vacuum or inert gas atmosphere. The sample holder is included for coating wafer upto 6". The digital control box is separated from spin coater which allows you operate in the remote location. The spinning speed is variable from 500-8000 rpm with two programmable segments. The package includes the two-stage vacuum pump , digital vacuum gauge and 20ml syringe for immediate use.

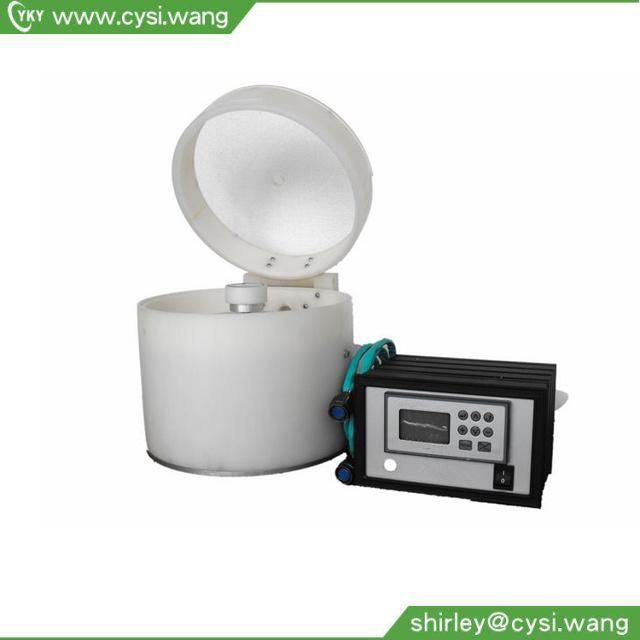

Structure | Case and the spin disk made of Polypropylene (PP) to resist most of the corrosive solutions. The digital control box is separated from spin coater. One two-stage vacuum pump is included in the standard package; The digital vacuum gauge is installed on the top cover of the spin coater One filter is included in standard package. The sample can be held either by mechanical fixture ( vacuum injection or vacuum ( for inert gas ) |
Input Power | Default 220VAC, 50/60Hz, single phase, 1000W Max. 110V is available in the optional bar ( with 1500W transformer ) A power socket on the back of the Digital control box is used to supply power to the vacuum pump. |

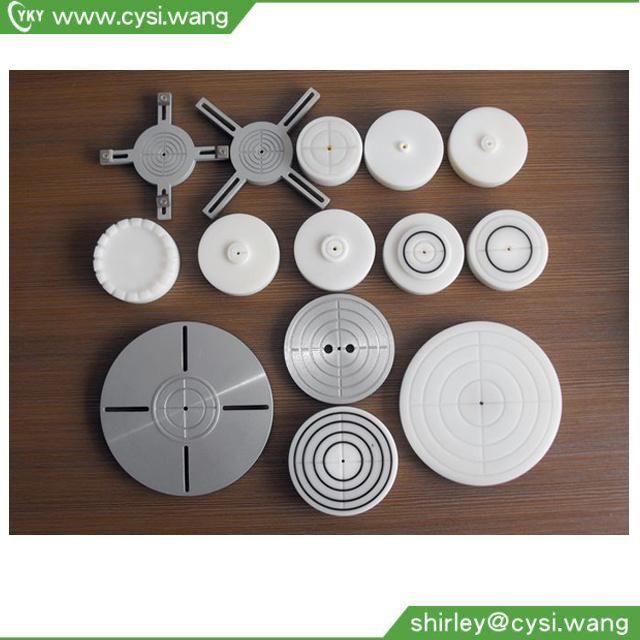

Chamber & Vacuum Chuck | Chamber diameter: 150 mm PP anti-corrosive chuck which can hold substrate up to 6" Dia. either by vacuum or by the mechanical fixture Vacuum chuck only can be used at inert gas atmosphere Mechanical chuck must be used for vacuum injection |
Vacuum | One 156 L/m Double Stage Rotary Vane Vacuum Pump with Exhaust Filter is included in the standard package Max. vacuum level for the system is 900 m-torr |
Spin Speed | Digital control panel with six programmable segments of different spin times and speeds Maximum programmable spin time 6*60s = 360s 500 - 8000 RPM adjustable spinning speed at each segment |
Liquid Injecting | 20mL syringe is used to contain the coating material |
Motor | 24VDC, Brushless, 200W max.: |
Net Weight | 25 kg |
Compliance | CE Certified |
Warranty | One year limited with lifetime support |
