Intermediate CCA Wire Drawing Machine Production Line
Hangzhou Suntech Machinery Co., Ltd.- Type：LW Pulley Type Metal Drawing Machine
- Usage：Wire, Rope Wire, Prestressed Steel Wire
- Metal Material：Aluminum
- Outlet Diameter：0.5-4.5mm
- Max.Inlet Wire Dia.：3.6mm
- Block Dia.：280mm
Base Info
- Max. Number of Block：21
- Certification：REACH, RoHS, ISO, Ce
- Condition：New
- Transport Package：Seaworthy Packing
- Trademark：SUNTECH
- Origin：China
- HS Code：846330
- Production Capacity：200 Sets,Year
Description
Model
LY-13D
Inlet Diameter(mm)
Ø2.80-3.50
Outlet Diameter (mm)
Max. Drawing Speed (m/min)
1500
Max. Drawing Dies No.
13
Slip Ratio of m/c
20%
Fix Speed Capstan Slip Ratio
18%
Capstan
Tungsten Plasma
Max. Capstan Dia. (mm)
Ø280
Fix Speed Capstan Dia. (mm)
Ø300
Frame
Ironed Cast
Main Motor
55KW
Spooler Motor
15KW
Revise System
PID Synchronous Spooler
Inverter Control
Double Inverter Control
Transmission
Gear
Send-Out Method
Over Head
Traversing Unit
Decelerate Motor
Tension Control
Pneumatic Balance by Swing Arm
Lubrication
Immersion
Power Source
380V
Brake
Pneumatic

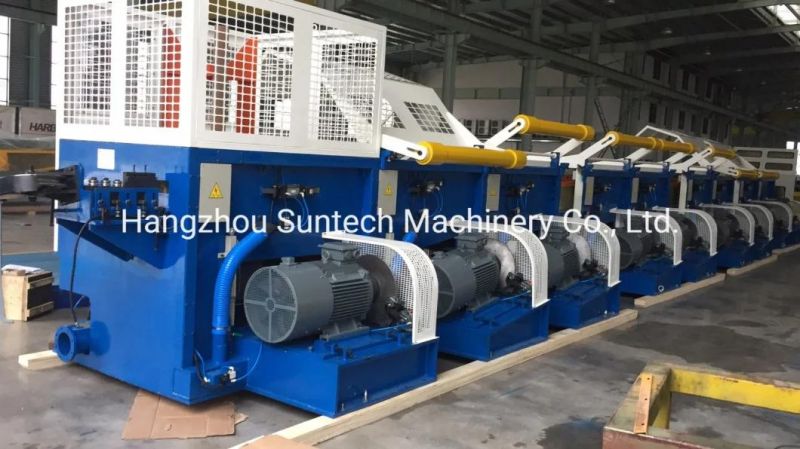

III. Details of machine for reference:
IV. Our Workshop:
V. Clients worksite for reference:
VI. Clients list for reference:
