• Model NO.：Comflex
• Wall Thickness：: 0.15-0.3mm
• Material of Strip：SUS304, 321 and 316L
• Application：Gas Hose,Water,Hose ,AC Hose
• Packing Details：Plywood Box and Standard Pallet
• Transport Package：Standard Seaworthy Package Plywood Box
• Specification：SGS
• Trademark：HLT
• Origin：Jiangsu China
• HS Code：844790900
• Production Capacity：400sets,Year

No.
Size
Tube OD
(mm)
Wall thickness
(mm)
Hose ID
(mm)
Hose OD
(mm)
Pitch
 distance
(mm)
Width of the strip
(mm)
1
DN 8
10.3
0.18
8
11.3
2.7
31.8
2
DN10
12.3
0.18
10
13.5
2.9
38.1
2
DN 12
15
0.18
12.3
16.3
3.2
46.6
3
DN 16
20
0.2
16.2
21.3
4.5
62.2
4
DN 20
23.5
0.25
20
25
4.5
73.0
5
DN 25
30
0.3
25
31.5
4.5
93.3
6
DN 32
39.5
0.3
33
41
4.5
123.2

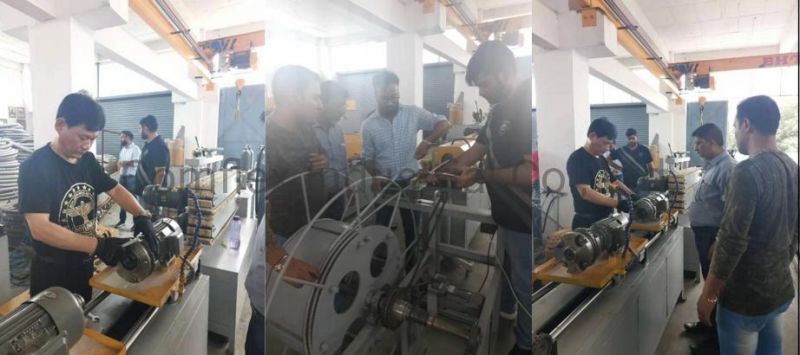

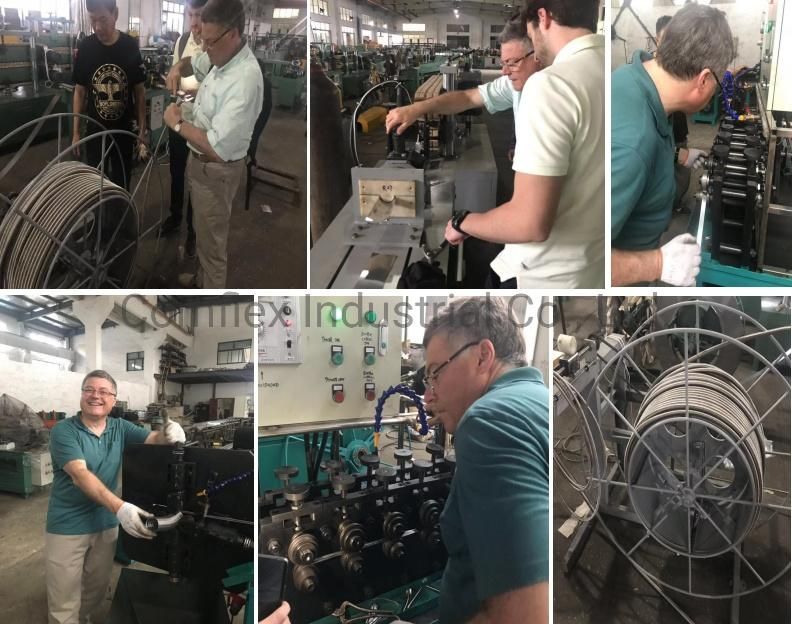

Accept Machine Training our customer from Argentina was accepting mechanical hose machine training in our factory. They are very satisfied with our high quality machine.
Company Profile:We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, etc..
The sizes are as follows:
Square lock hose and machinery:ID6-ID103
Interlock hose and machinery:ID3-ID350mm on different machine
Annular and corrugated metal hose: ID8 till ID600 on different machine

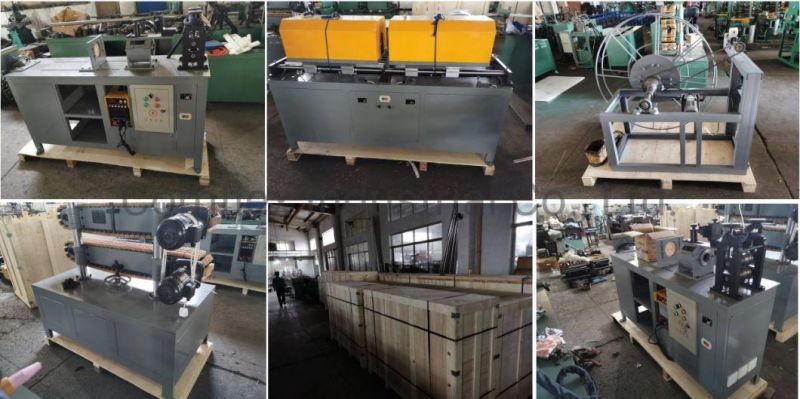

Package And Delivery:

Installation And commissioning:
Our service
 Warranty period of one year
 standard seaworthy package
 Engineers available to service machinery overseas


FAQ:
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience

Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines.

Q: How many different types of machine can you make?A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
 B: Mechanical hose making machine
DN8-32mm
 C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65

Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, gas hose, water hose, air conditional hose, etc.
3.Wall thickness
