• Model NO.：COLO-2315
• Filters Type：Polyester Materical , Detacheable Filters
• Power Supply：Electric
• Weight：650kg
• Inner Size：D1500*W2300*H1500mm
• Overall Size：D2070*W2750*H2180mm
• Booth Type：Closed
• Frequency：50,60 Hz
• Voltage：220V,380V 3phase
• Warranty：12 Month
• Transport Package：Wooden Case
• Specification：COLO-2315
• Trademark：COLO
• Origin：China
• Production Capacity：300set,Month

ModelCOLO-S-2315Booth TypeD1500*W2300*H1500mmOverall dimensionsD2070*W2750*H2180mmWeight650kgPower supplyElectricNominal power4kwFiltersPolyesterFilters count4pcs(325*900cm)Filters hang typeeasy for changeFilter cleaning systemPolyesterWarranty10month

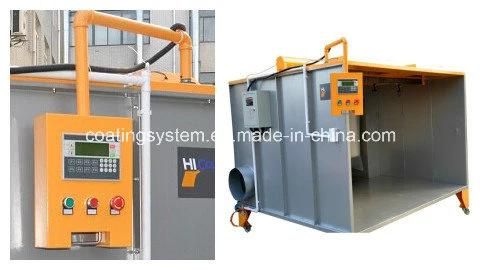

PLC Control Panel

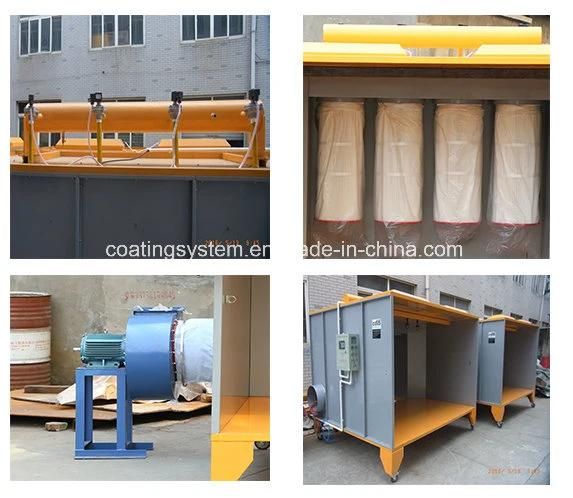

Fan Motor Work with Filter
The powder coating spray booth fans draw air through filters,as the cartridge filters load,air flow decreases and the negative pressure rises within the air handler. a timer activates a system of air purging valves that clear the cartridge filters of the accumulated powder to ensure max filter life.Cartridge filters are detachable,easy to install,easy to remove.

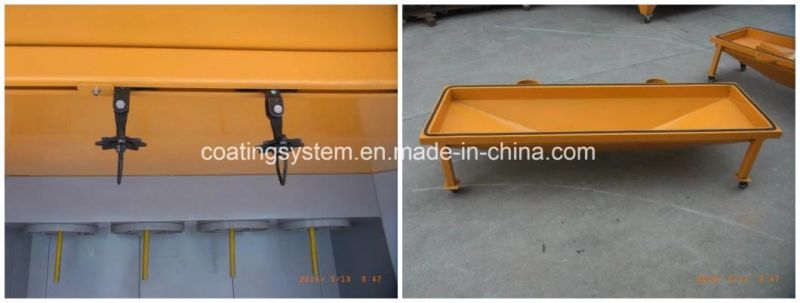

The Hanger and Recovery Tank
The hanger is moveable can bearing heavy parts,the powder recovery tank is for collect the powders which the falling down on the filters by the functiion of solenoid valve.

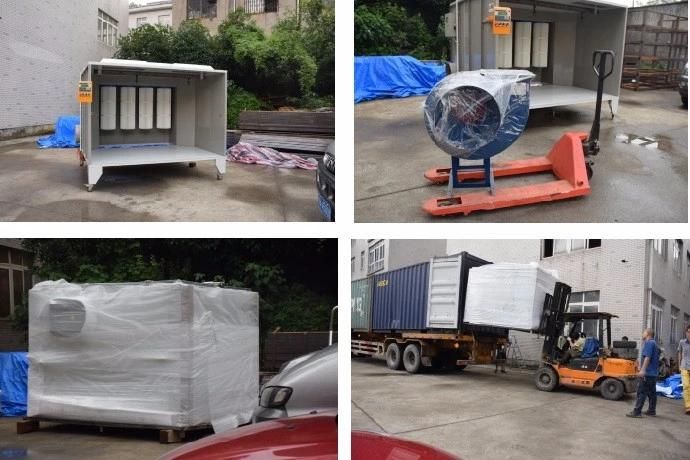

Packing&Delivery
We deliver a complete set of powder spray booth,the fan motor and filters will be disassemble to avoice they might damage during transport,but do not worry,they are easy and simple to assemble.

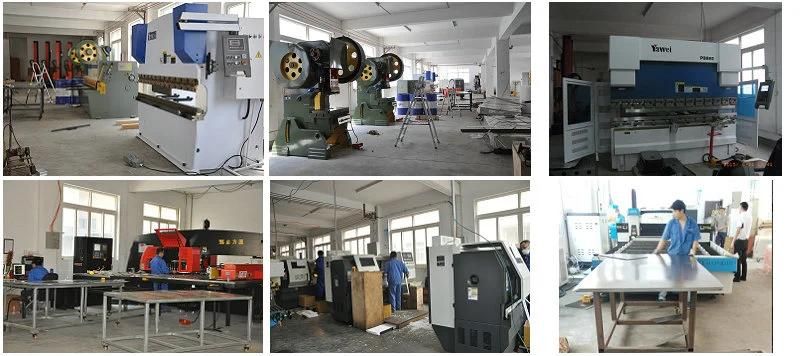

Our Factory
COLO own advanced machiens to produce high quality products,own a professional engineers team to design various model of  machines to meet customer's satisfaction,and the hard-working staff ensure the product output.


We commited to your satisfactory and safety, if you are interested in our products,please feel free to contact us,thank you!
