Hot Sale Nut Making Machine
HARBIN RAINBOW TECHNOLOGY CO., LTD.- After-sales Service：Online Support
- Type：Forging Operation
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：Automation
- Certification：CE
Base Info
- Warranty：12 Months
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Color：Green
- Transport Package：Wooden Package
- Specification：6 FORGING STATIONS
- Trademark：JX14B-6S, JX17B-6S, JX19B-6S, JX19B-6SL, JX24
- Origin：China
- Production Capacity：100sets,Year
Description
Basic Info.
Warranty 12 Months Customized Customized Advantage Use Widely Condition New Color Green Transport Package Wooden Package Specification 6 FORGING STATIONS Trademark JX14B-6S, JX17B-6S, JX19B-6S, JX19B-6SL, JX24 Origin China Production Capacity 100sets/YearProduct Description
Nuts making machine, it can maily make the nuts, and different type nuts. It can finish the products in one time. So it is energy saving and high productivity and easy use.Our machine in China can be say the leading machine. And best price.
Production items:

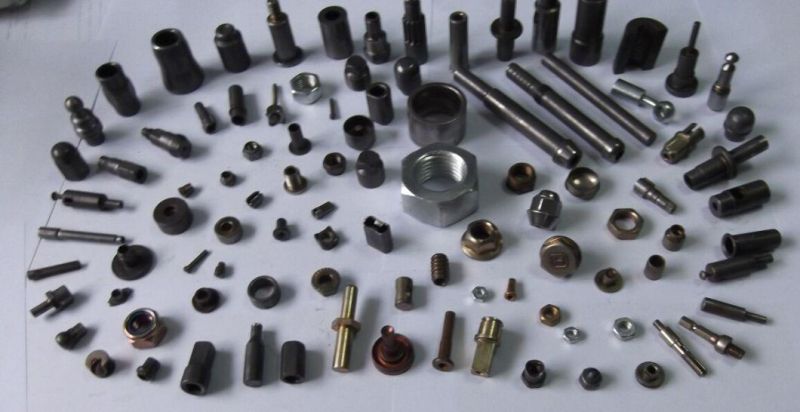

Extra thick nut, flanged nut, motorcycle link pin, oil plug screw, hex socket lockup nut, squire nut, weld nut, cap nut, blind nut, chain roller, expansion anchor, bicycle and motorcycle shaped spare parts, and so on.
We have exported these machines to India, and we have service center in India, so we can provide you the best after-sale service.
For anything of the machine, please feel free to contact me.
Hope to cooperate with you.
For the details of the machine, please check the form.
| Model | JX11 B-6S | JX11 B-6S-L | JX14 B-6S | JX14 B-6S-L50 | JX14B- 6S-T50 | JX14B- 7S-L50 | JX17B- 6S | JX17B- 6S-L50 | JX19 B-6S | JX19B- 6SL-50 | JX24B- 6SL-70 |
| Forging Station | 6 | 6 | 6 | 6 | 6 | 7 | 6 | 6 | 6 | 6 | 6 |
| Max. forging Dia. (mm) | 8-12 | 8-12 | 12-15 | 12-15 | 12-15 | 12-15 | 13-17 | 13-17 | 20 | 20 | 25 |
| Max. cut off dia. (mm) | 11 | 11 | 15 | 15 | 15 | 15 | 17 | 17 | 19 | 19 | 24 |
| product dia. | M4-M6 | M4-M6 | M6-M8 | M6-M8 | M6-M8 | M6-M8 | M8-M10 | M8-M10 | M10-M12 | M10-M12 | M12-M16 |
| Max. forging length (mm) | 13 | 25 | 16 | 45 | 30 | 45 | 45 | 45 | 25 | 50 | 70 |
| Die pitch (mm) | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | 80 | 80 | 100 |
| Main slide stroke (mm) | 50 | 64 | 60 | 160 | 60 | 160 | 160 | 160 | 100 | 162 | 200 |
| output (pcs/min) | 120-240 | 120-240 | 85-170 | 70-100 | 70-100 | 70-100 | 85-165 | 70-100 | 100 | 85 | 85 |
| main motor | 15HP | 15HP | 20HP | 40HP | 40HP | 40HP | 40HP | 40HP | 40HP | 50HP | 74HP |
| appr. weight (kgs) | 4000 | 4500 | 7500 | 8500 | 7500 | 9000 | 10000 | 10000 | 13000 | 15000 | 20000 |
