• Model NO.：PE-F500-3015
• Application：Machinery & Hardware
• Type for Cutting Machine：Laser Cutting Machine
• Type for Fold-Bending Machine：CNC Fold-Bend Machine
• Certification：Ce, ISO 9001:2000
• Automation：Automatic
• Condition：New
• Model：PE-F500-3015
• Laser Type：Fiber Laser
• Working Area：1500*3000mm
• Supporting Format：Plt, Dxf, BMP, Ai
• Transport Package：Exporting Standard Package
• Specification：ISO,CE certificate
• Trademark：Perfect Laser
• Origin：China
• HS Code：84561000
• Production Capacity：5000 Sets,Year

500 watt
 Laser Source
 German IPG/ Sino-Tech / Raycus Fiber Laser Source
 Laser Type
 Fiber Laser
 Laser Technology
 Germany Technology
 XYZ Working Area
 2500*1300*150mm
 3000*1500*150mm

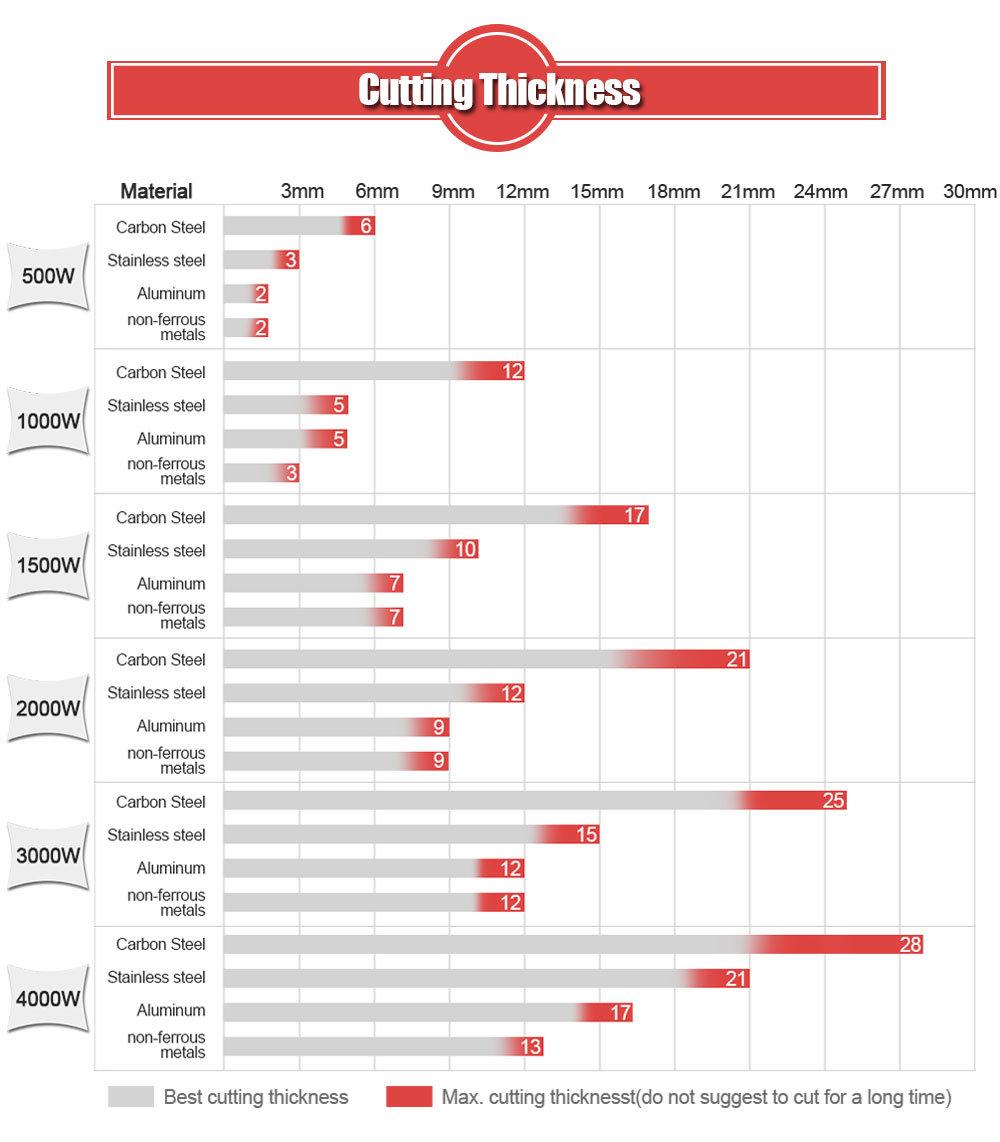

 Max. Cutting Thickness (mm)
 1-5mm carbon steel

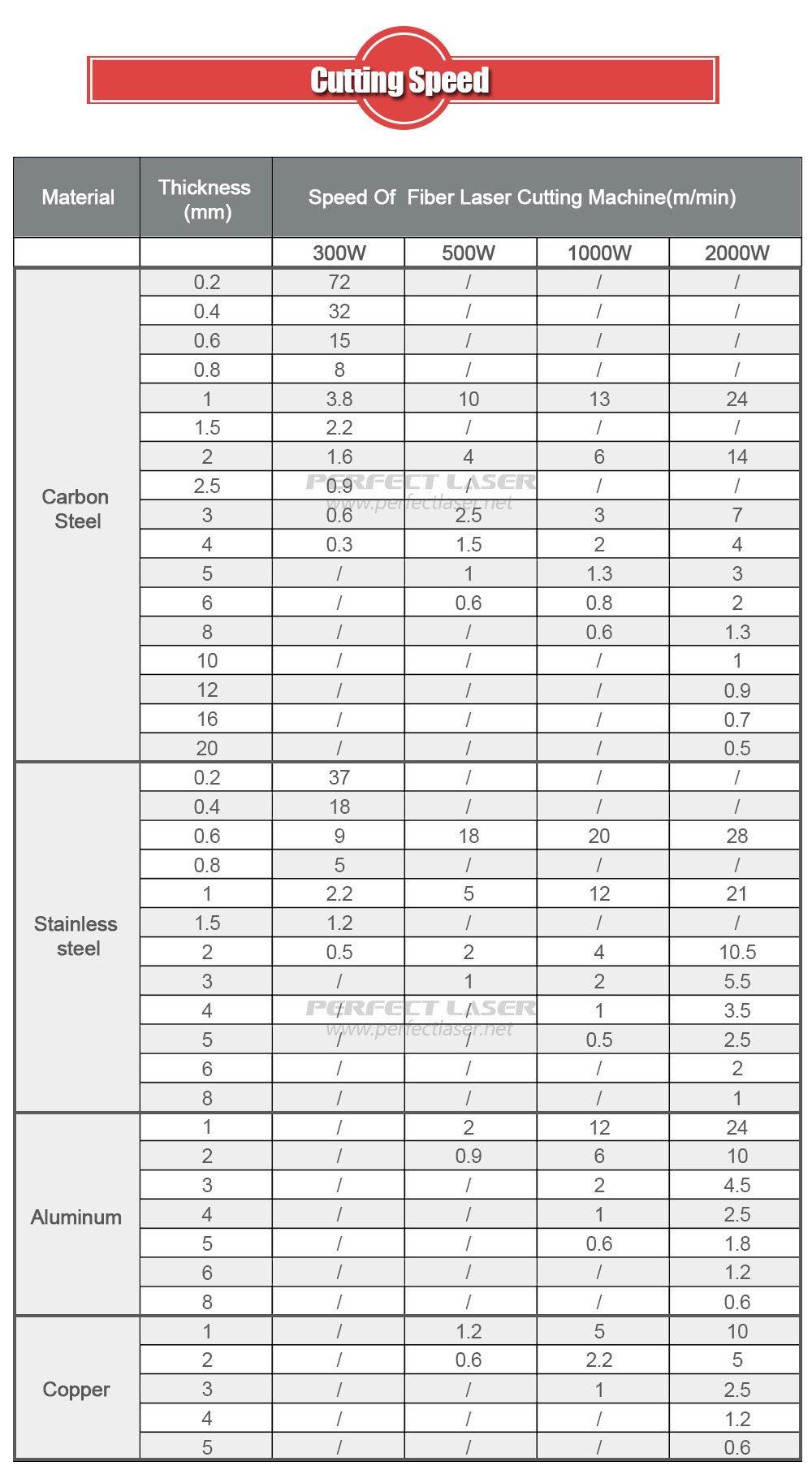

 Max. Cutting Speed
 5-20 Meters / Min (up to Materials)
 Max. Location Speed
 60m/min
 Laser Wavelength
 1070nm
 Minimum Line Width
 ≤0.1mm
 Location Precision
 ≤±0.05mm
 Re-Location Precision
 ±0.02mm
 Max. Moving Speed
 100m/min

Main Features

High efficiency: high-speed digital motion control by Germany technology system, especially for high-speed, high-precision laser cutting.
Integrated design: a 10% reduction of the volume of space, easier and cheaper for ocean and inland transportation.

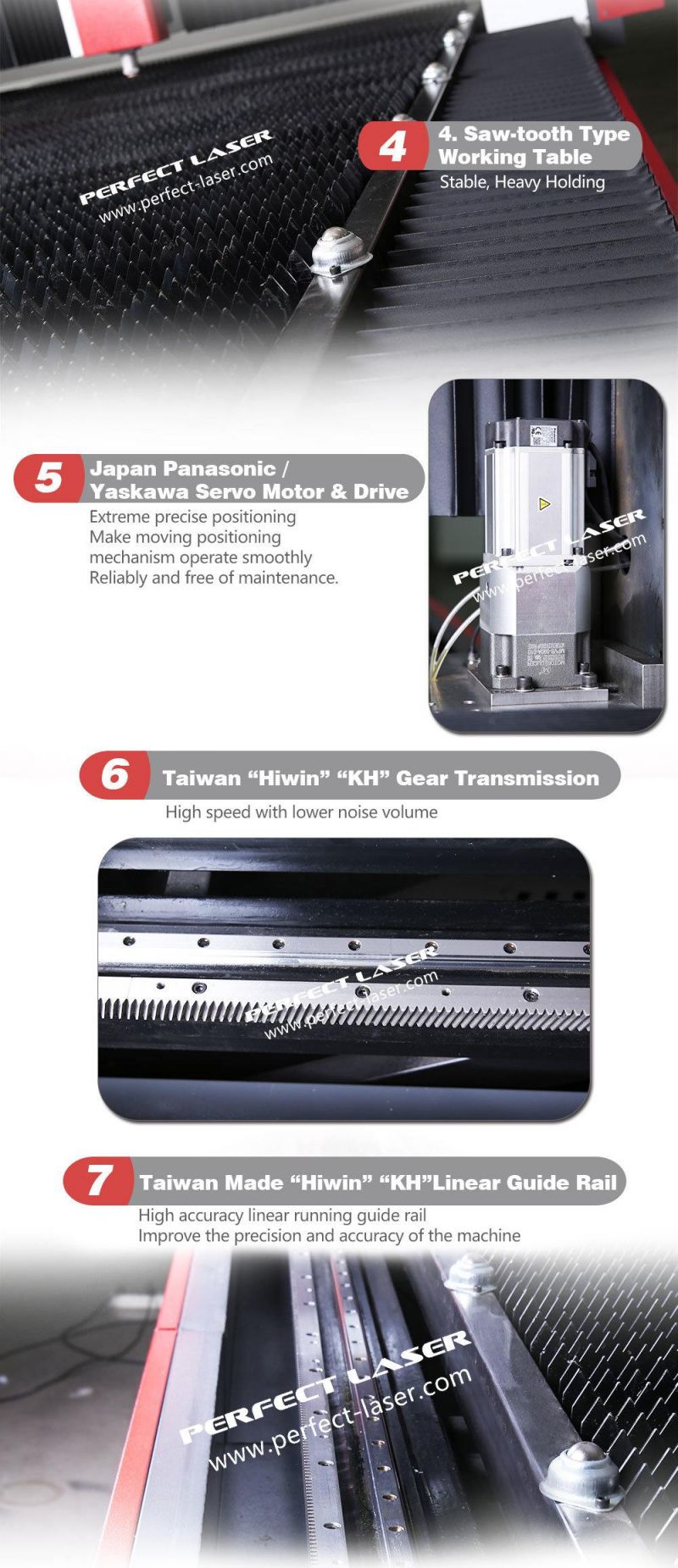

Stable running: adopting gantry structure with synchronous bilateral gear and rack drive, and high-strength aluminum beams enhance its stability.
Low energy consumption: photoelectric conversion rate is up to 25-30% which can save energy and power. Electric power consumption for this type fiber cutting machine is only about 20%-30% of the traditional Co2 laser cutting machine.
High technology:full application of laser technology, mechanical technology, numerical control technology and other advanced technology.
Low maintenance cost: 500w fiber laser cutting machines doesn't need reflect lens, saving much maintenance cost. The key components lifespan can reach 100,000 hours with stable performance;
