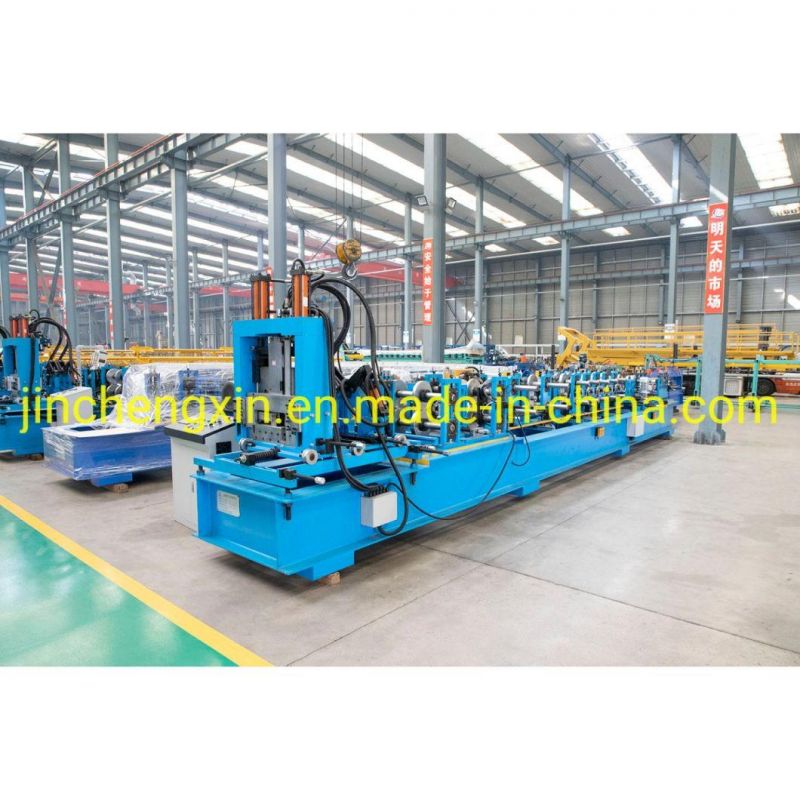

C&Z Purlin Forming Machine
Botou Golden Integrity Roll Forming Machinery Co., Ltd.- Suitable Material to Produce：Galvanized Steel Strip
- Thickness of Raw Material：1.0-3.0mm, or as Your Request
- Main Power of Machine：22kw
- Power of Cutting：6kw,5.5kw,3kw
- Material of Cutter：Cr12 with Heat Treatment
- Material of Roller：45 Steel, with Chrome Coating
Base Info
- Splint Thickness：20mm
- Color of Machine：Blue or as Your Request
- Driving of Machine：Chain Driving
- Sizes of Chain：1.2 Inch
- Transport Package：Covered with Plastic Films
- Specification：ISO9001
- Trademark：ZD OR OEM
- Origin：China
- HS Code：84552210
- Production Capacity：30sets,Month
Description

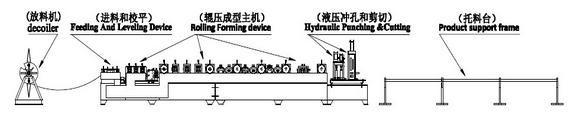

(1) Manual decoiler--------------------------------------------1 set
(2) Feeding and levelling device---------------------------------1 set
(3) Rolling forming system--------------------------------------1set
(4) Hydraulic punching and cutting-------------------------------1 set
(5)Product support frame--------------------------------------1 set
(6)PLC Control System-----------------------------------------1 set
4. Delivery date: 50 days after receiving deposit.5. Packing: Packing: nude, with waterproof cloth and stow-wood.
The computer controlled cabinet is packed with waterproof cloth and box. The seller should guarantee equipments will be moisture-proof, anticorrosive, and will not be damaged during transportation.
6. Sales clause: you should pay 30% of the total payment on the order day, after signing<Manufactured products purchase contract>,
you can send person to inspect goods, then payoff the whole payment before shipping out the goods.
7.Guarantee:
In correct operation and maintenance, the machine is one year guarantee since leaving the seller's factory.Life long tracking service
8.Installation:
If buyer need, the seller will send one or two technician to the buyer's factory to install & testing the machine, the buyer will
assist the seller 's technician to get the visa and pay for the
two-way flight tickets and local accommodation, visa cost. by the way , buyer pay 100USD/day for technician extra.
