Automatic Colored Roofing Tiles Cold Roll Forming Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Voltage：380V, 3phase, 60Hz
  • Control System：PLC Control System
  • Main Power：5.5kw
  • Pump Power：4kw
  • Speed：15-20m,Min
  • Warranty：24 Months

Base Info

  • Model NO.：colored roofing tiles machine
  • Color：as The Customer Needs
  • Cutting Material：Cr12
  • Transport Package：Nude
  • Specification：6500*1500*1500mm
  • Trademark：DIXIN
  • Origin：Botou City
  • HS Code：84552210
  • Production Capacity：30 Sets,Month

Description

1material of input sheetgalvanized steel/ colored steel2feeding width 1250mm3effective width 1064mm4material thickness0.3-0.8mm5main motor power3kw6hydraulic pump power3kw7forming step13 steps8diameter of shaft75mm9main frame300H steel10roller material45# steel with chrome11cutting knives materialCr1212machine size6.5*1.5*1.5m13machine weightabout 3 tons



3.  Work flow:

manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table

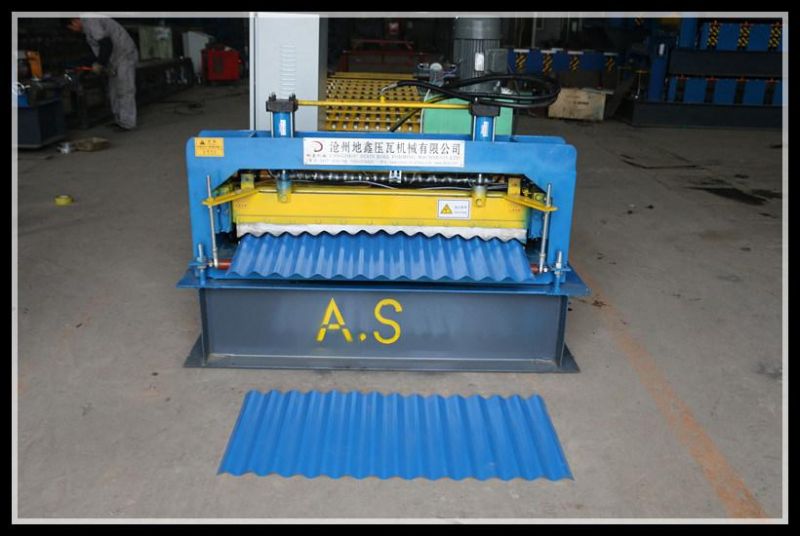

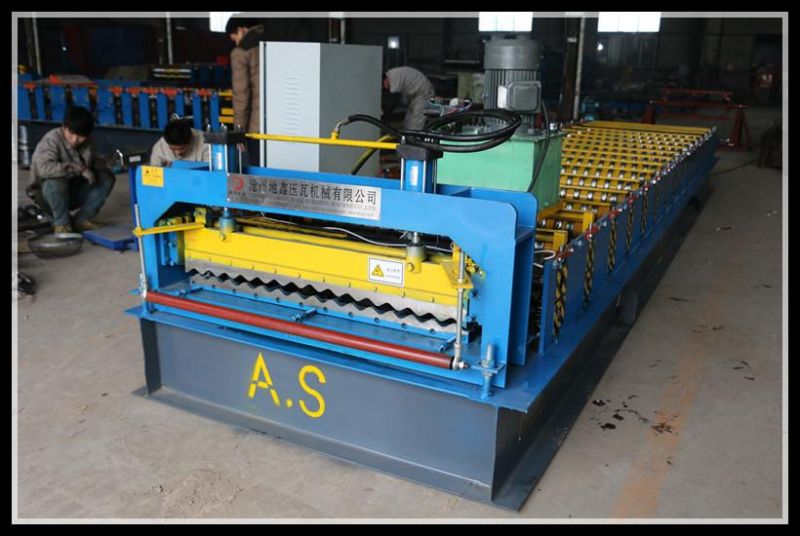

4. Machine pictures:
Automatic Colored Roofing Tiles Cold Roll Forming MachineAutomatic Colored Roofing Tiles Cold Roll Forming MachineAutomatic Colored Roofing Tiles Cold Roll Forming MachineAutomatic Colored Roofing Tiles Cold Roll Forming MachineAutomatic Colored Roofing Tiles Cold Roll Forming MachineAutomatic Colored Roofing Tiles Cold Roll Forming Machine
If you are interested in the roll forming machine,welcome to contact me directly:
