• Model NO.：SKM-6090
• Certification：CCC, RoHS, ISO9001, CE
• Warranty：24 Months
• Customized：Customized
• Condition：New
• Product Name：CNC Metal Engraving Machine
• Keyword：CNC Router Metal Mould Milling Machine
• Controller：Ncstudio , DSP , Mach 3
• Power Supply：AC220V,380V
• Software：Artcam,Type3
• Applicable Material：Metal Sheet
• Guid Rail：Taiwan Hiwin Guide Rail
• Drive Type：Stepper Motor
• Spindle：Water Cooling Spindle
• X Y Structure：Ball Screw Drive, Hiwin Rail Linear Bearings
• Z Structure：Taiwan Original Tbi Ball Screw
• Command Language：G Code
• Table Surface：Cast Iron T-Slot Table with Water Tank
• Frame：Strong Cast Iron
• Inverter：Fuling Inverter(Delta Inverter Optional)
• Transport Package：Standard Export Wooden Case
• Specification：600*600mm,600*900mm
• Trademark：Senke
• Origin：Shandong
• HS Code：8465990000
• Production Capacity：200sets,Month

Basic Info.

Model NO. SKM-6090 Certification CCC, RoHS, ISO9001, CE Warranty 24 Months Customized Customized Condition New Product Name CNC Metal Engraving Machine Keyword CNC Router Metal Mould Milling Machine Controller Ncstudio / DSP / Mach 3 Power Supply AC220V/380V Software Artcam/Type3 Applicable Material Metal Sheet Guid Rail Taiwan Hiwin Guide Rail Drive Type Stepper Motor Spindle Water Cooling Spindle X Y Structure Ball Screw Drive, Hiwin Rail Linear Bearings Z Structure Taiwan Original Tbi Ball Screw Command Language G Code Table Surface Cast Iron T-Slot Table with Water Tank Frame Strong Cast Iron Inverter Fuling Inverter(Delta Inverter Optional) Transport Package Standard Export Wooden Case Specification 600*600mm/600*900mm Trademark Senke Origin Shandong HS Code 8465990000 Production Capacity 200sets/Month

Product Description

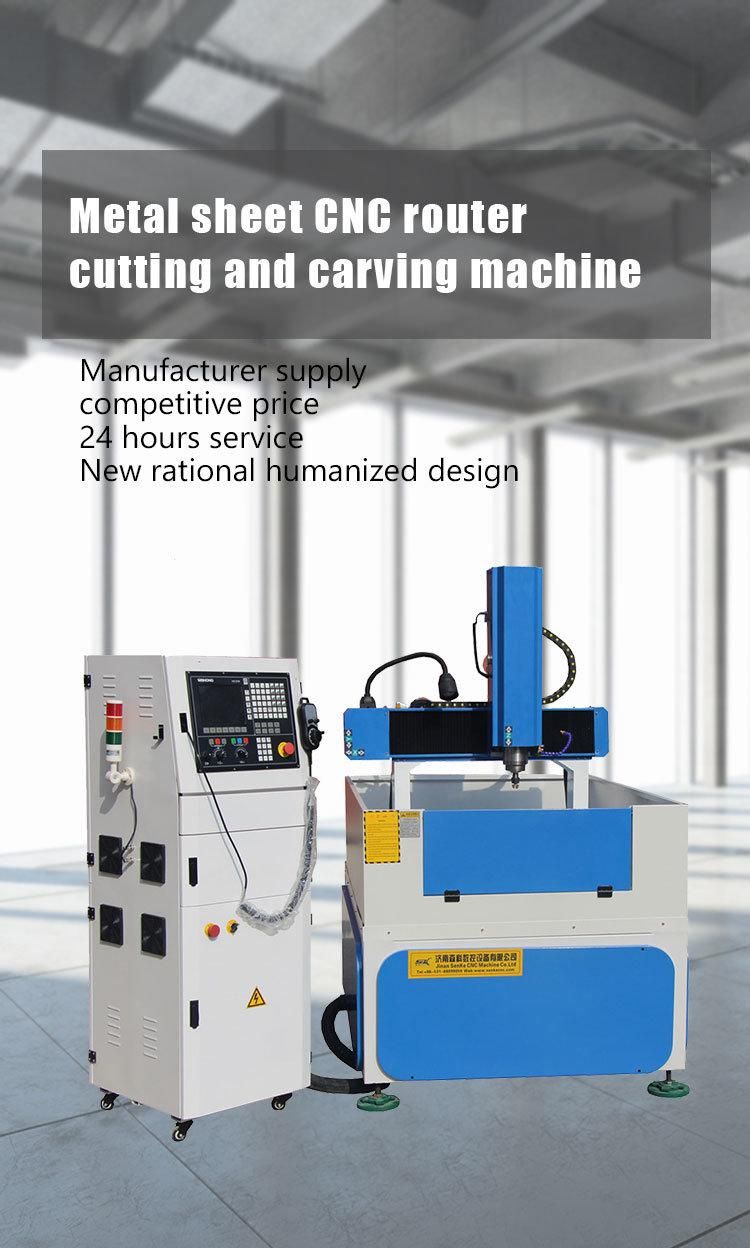

product upgrade Senke SKM-6090 aluminum stamp milling machinery half-clad metal machine

Specification

Description	Parameter
Working area	600*900*300mm
Table Surface	Cast iron T-slot table with water tank
Frame	Strong Cast Iron
X Y Structure	Ball Screw Drive, Hiwin Rail Linear Bearings
Z Structure	Taiwan Original TBI Ball Screw
Spindle Power	2.2KW HQD Water Cooling Spindle(3.2KW 4.5KW Optional)
Spindle Speed	0-24000RPM
Inverter	Fuling Inverter(Delta Inverter Optional)
Diver Motors	Stepper motors and Leadshine Drivers(Servo Motor Optional)
Working voltage	380V/415V 3 Phase 50/60Hz(Optional:220V Single/3 Phase 50/60Hz or 110V Single Phase 50/60Hz )
Command Language	G Code
Operating System	DSP A11Control System (Mach 3 Optional)
Software Compatibility	Artcam (Type 3/UcancameV9 Software)
Computer Interface	USB
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%

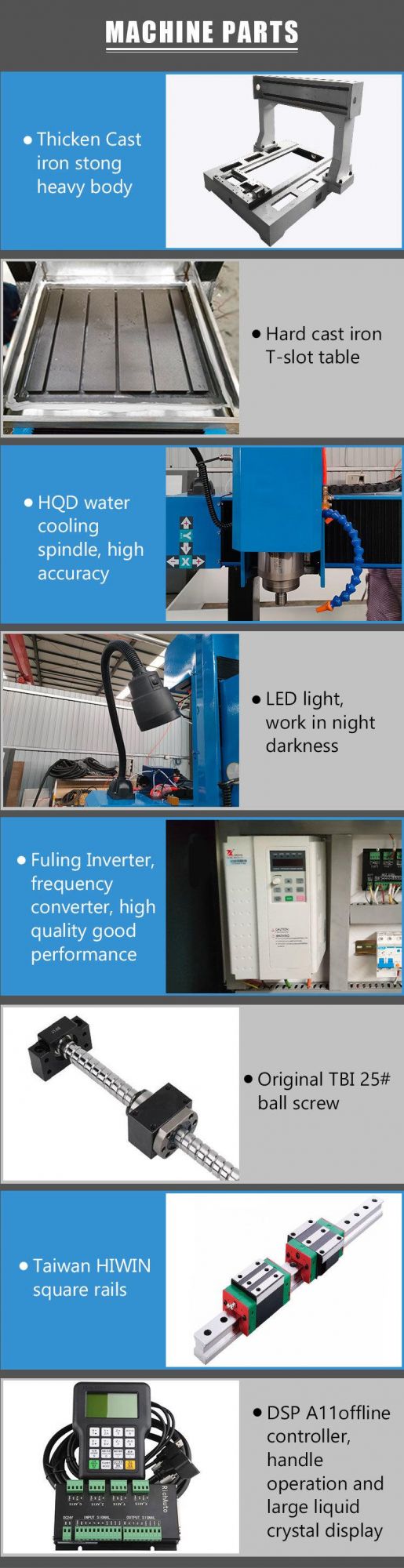

Main Parts

Q.what kind materials your machine can process?
--Our cnc router machine professional designed for all kinds of metal&nonmetal cutting and engraving jobs, such as
wood,pvc,MDF,plywood,acrylic,aluminum etc..

Q.how shall i choose the models?
--different materials size different machine model,just told us,what's your materials maximum size ,.we will supply the best
solutions for you.:-)

Q. can you send the machine to my country?
--Yes dear,we can send the machine to your country, please let us know which shipping terms you prefer? EXW, FOB or CIF?

Q.how much would shipping cost?
-- please let us know which sea port near by you? The shipping cost need check with freight agent.

Q.What's your payment terms?
-- we accept T/T,LC,PAYPAL,WESTERN UNION etc.various payment method,please let us know which method more convenient for you.
