• Model NO.：WX-201
• Pulse Features：Save Powders and Fine Coating Results
• Transport Package：Carton, Wooden Case

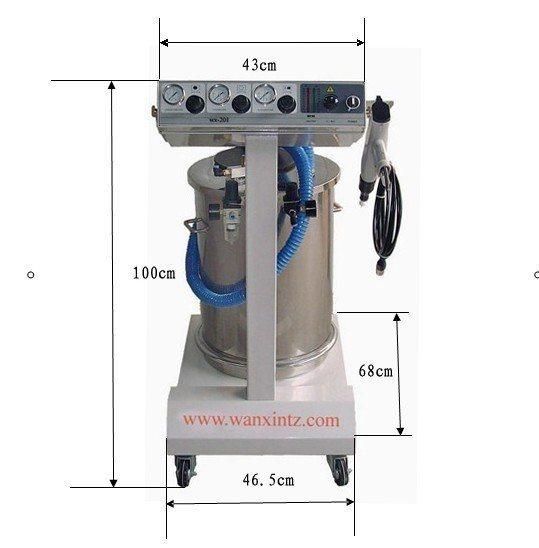

• Specification：70*47.5*59cm
• Trademark：WANXIN
• Origin：Jiangsu, China
• HS Code：84243000
• Production Capacity：1000 Sets, Year

WX-201





Technical Data

Gun Weight	460g	Gun Cable	5 meters
Power source	AC 220V/110V	Frequency	50Hz
Power	50W	Max Output Current	200μA
Input Voltage	24V	Output Voltage	100 KV
Polarity	Negative	High Pressure Mode	Built-in
Max Power Injection	550g/min	Max Air Consumption	13.2Nm3/h
Pulse Frequency	15~20 Clock /S	Working Temperature Range	-10 ~45°C

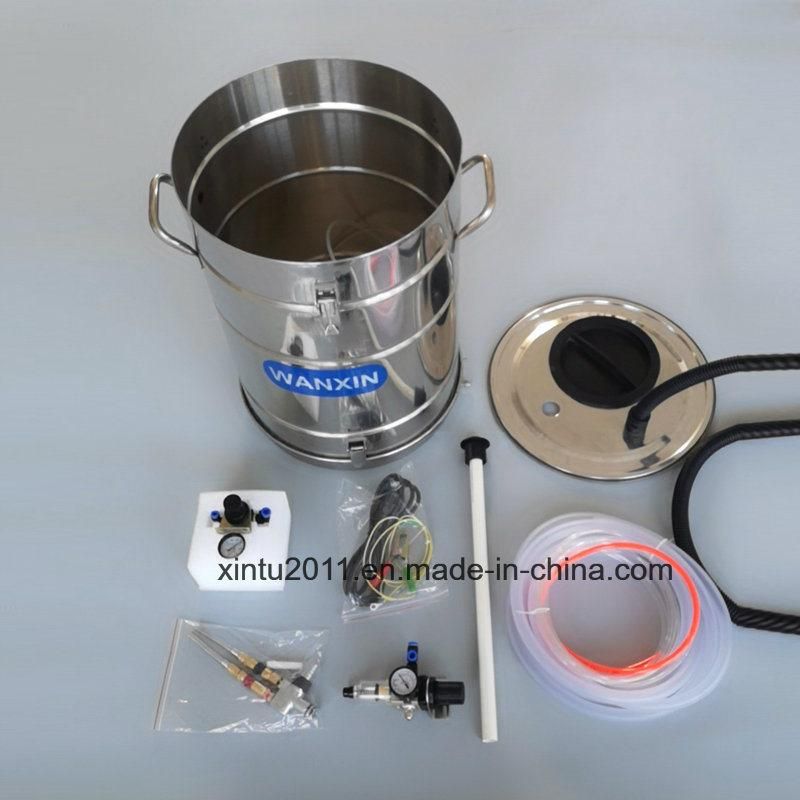

Packing List
- Control Unit *1
- Powder Coating Gun *1
- Powder Hopper * 1
- Powder Injector *1
- Moving trolley*1
- Regulating Valve*1
- Oil water filter *1
