Roll Forming Machine (YX63.5-333 (400, 500))

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：YX63.5-333 (400, 500)
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Transport Package：Sea Packing
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300set,Year

Description

Specification of the material1
 Suitable MaterialColored Steel plate, Galvanized steel2
 Width of the raw materialbased on the profile drawing3Thickness0.3mm-0.8mm

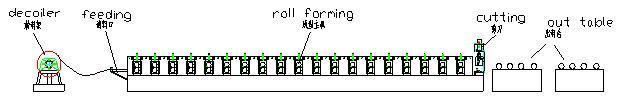

 The Chart of Process Flow
Roll Forming Machine (YX63.5-333 (400, 500))
Main technology parameter:
1: Raw material (mm): 500mm, 570mm, 670mm
Effective width: 610mm: 333mm, 400mm, 500mm
2: Working speed: 15-20m/min (not contain cutting)
3: Roll station: 17stations
4: Material of roller: 45# forge steel, polished and coated with chrome
5: Material of main shaft: 45forge steel

6: Main power: 5.5kw
7: Hydraulic station power: 2.2kw
8: Hydraulic pressure: 12Mpa
9: Control system: PLC, Panasonic
10: Material of cutting: Gr12MOV HRC 58-60
11: Thickness: Steel (0.6-1.0mm), Aluminium(0.6-1.2mm)
12: Way of drive: Single row of chain: 1.5inch

Warranty
  • Warranty: 1 year warranty from date of shipment
  • Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
