5 Axis Flame & Plasma Cutting & Profiling Device Chuck Type
Nanjing Auto Electric Co., Ltd.- Cutting Material：Carbon Steel, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
- Current：Alternating Current
- Model：TIG
Base Info
- Model NO.：NAEC
- Application：Container
- Transport Package：Container
Description

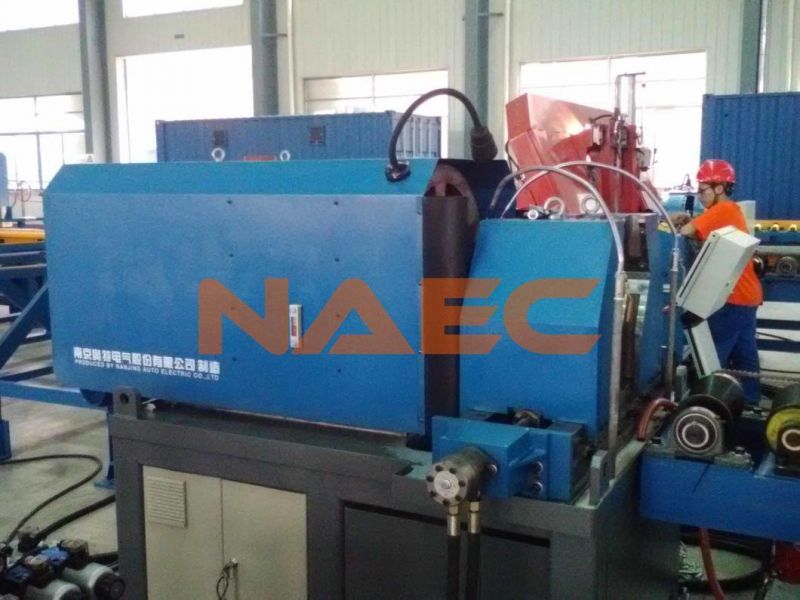

Pipe Cutting& Beveling All-in-one Machine
>Suitable for pipes not larger than 8",max.thickness:20mm
>Cutting efficiency:100times/8hrs
>PLC control with automatic measuring to guarantee the same processing cycle
>Widely used for small bore C.S/S.S production lines

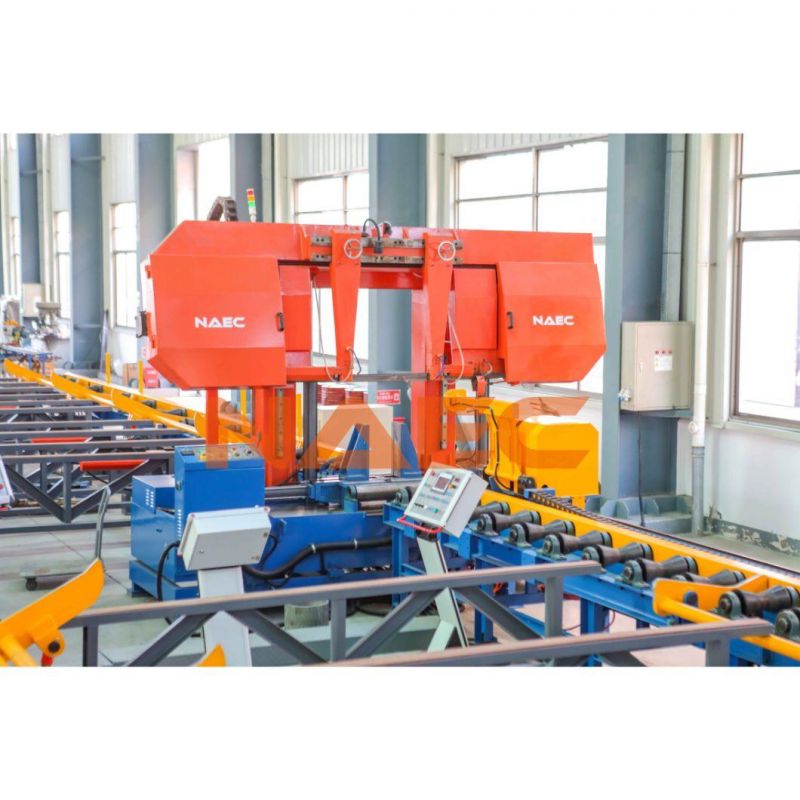

High Speed Band-saw Cutting Machine
>Three models available(16"type,24"type",48"type)
>PLC system control;self-measuring function with precision:±0.5mm
>Using hydraulic self-centering chuck
>It only takes 6 minutes to cut a 24" pipe of 25mm thickness
>Widely used for C.S/S.S production lines.

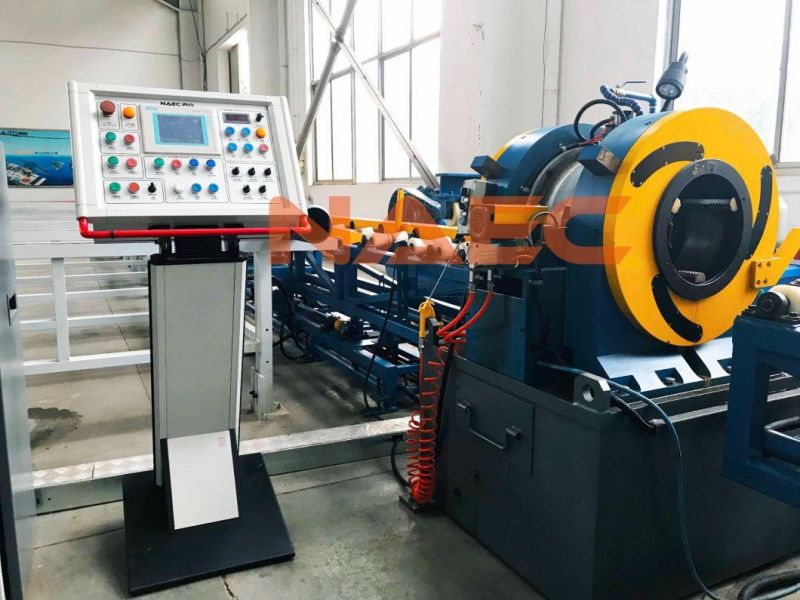

High Speed CNC Pipe End Beveling Machine
>Automatic self-centering chuck
>Single V,double V,U type bevel
>Can be matched with pipe end turning devic
>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)
>Several models available:16",24",32",48"

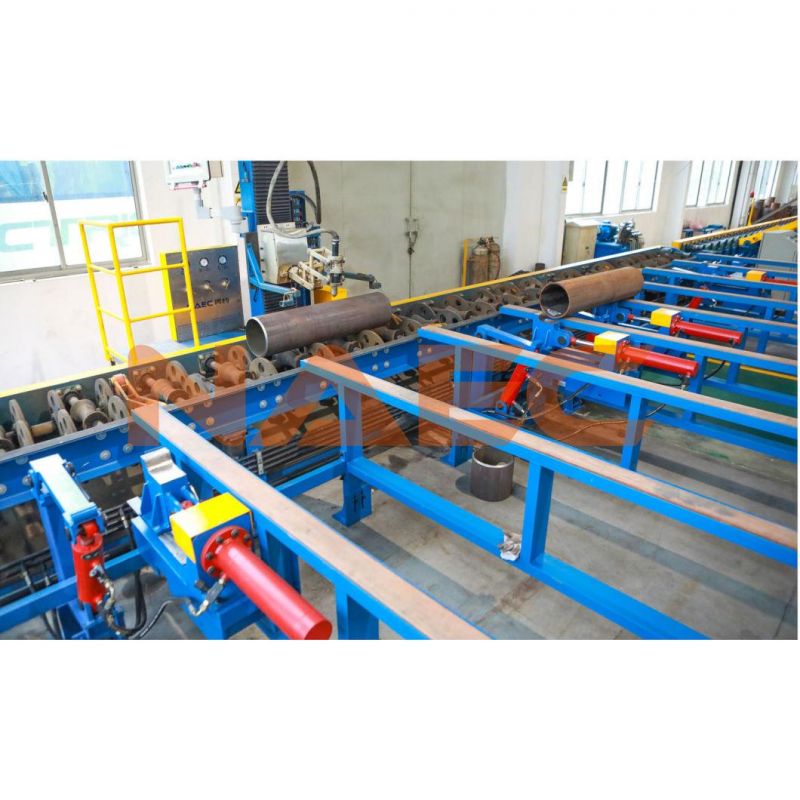

Two / Multi- Axis CNC Flame/Plasma Cutting Machine
>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.
>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type
>Standard machine suitable for pipes nor larger than 24''

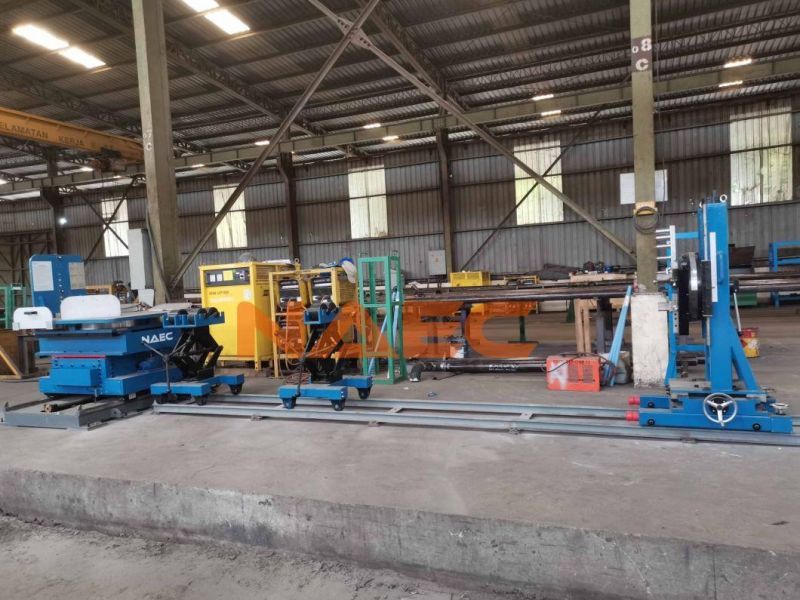

Multi-function Pipe Fitting-up Station
>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.
>Light-duty type(manual) and heavy-duty type(motorized) are available.
>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

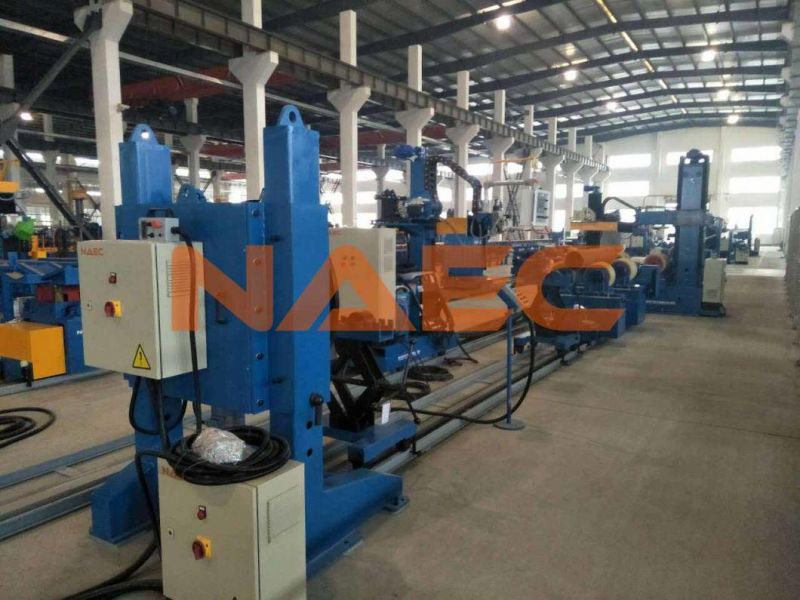

Automatic Pipe Welding Station
>With two welding heads
>TIG/MIG/SAW are optional
>PLC system control & WPS programmed
>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.
>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

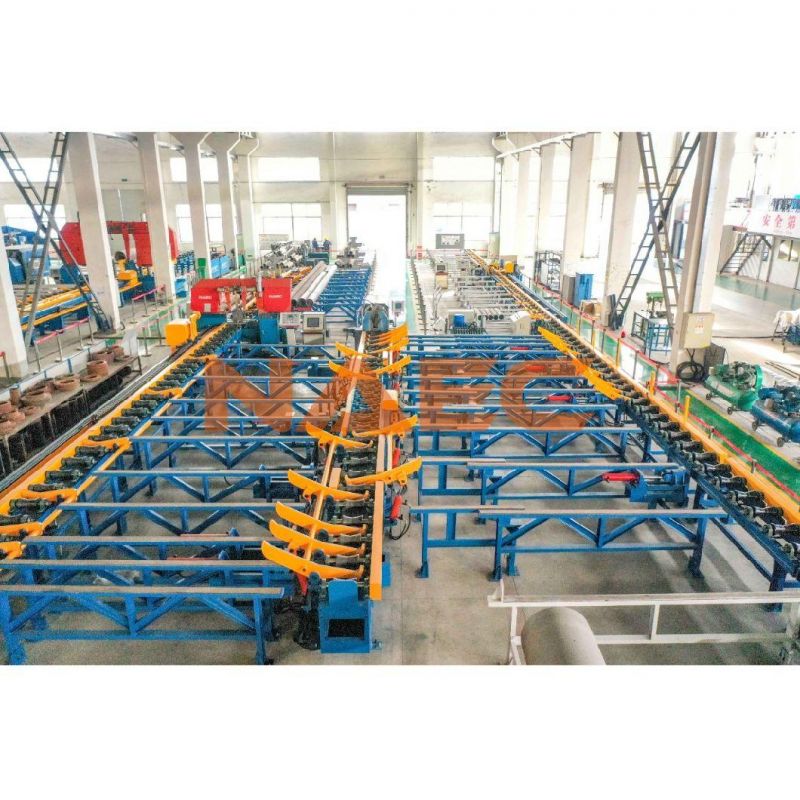

Conveyor Handling System
>used for pipe convenient transporation during in pipe spool fabrication.
>Its speed is adjustable between 2M to 20M/min.
For more information, please contact us, thank you!
