CNC Plasma Flame Cutting Machine for Plates Sheet
ShanDong Sunrise CNC Machine Co., Ltd.- Customized:Customized
- Layout:Vertical
- Cutting Material:Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade:Automatic, Manual
- Power Source:Electric
- Cutting Mode:Plasma Cutting
Base Info
- Model NO.:TX1D1H
- Model:Tx1d1h
- Function:Cutting
- Effective Cutting Width and Length:Customized
- Cutting Method:Plasma Cutting and Flame Cutting
- Power:125A
- Cutting Thickness:60mm (Customized)
- Cutting Torch Lifting Distance:200mm
- Machine Speed:0-9000mm,Min
- Speed Tolerance:5%
- Flame Torch:One Group
- Transport Package:Plastic Film Winding and Wood Cases
- Specification:Customized
- Trademark:Sunrise
- Origin:China
- HS Code:8462411900
- Production Capacity:100set,Month
Description
Basic Info.
Model NO. TX1D1H Model Tx1d1h Function Cutting Effective Cutting Width and Length Customized Cutting Method Plasma Cutting and Flame Cutting Power 125A Cutting Thickness 60mm (Customized) Cutting Torch Lifting Distance 200mm Machine Speed 0-9000mm/Min Speed Tolerance 5% Flame Torch One Group Transport Package Plastic Film Winding and Wood Cases Specification Customized Trademark Sunrise Origin China HS Code 8462411900 Production Capacity 100set/MonthProduct Description

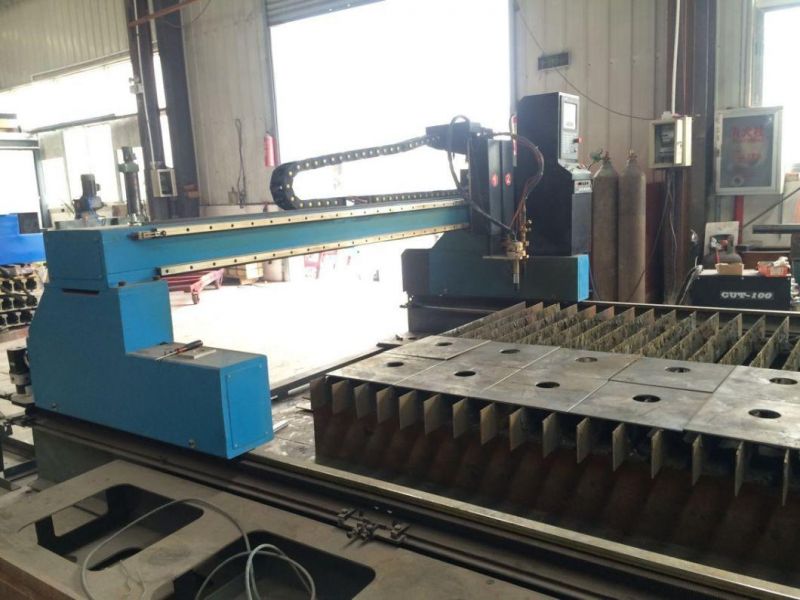

Gantry type CNC Plasma & Flame cutting machineDescription and features:
1.Gantry type,with good quality and competitive price,more stable than portable type.
2.CNC control,smart cut,cut all shapes from AutoCad.
3.Control system is SF-2200H,which is very popular in China,with large graphics library,and easy to learn to operate.This software can support English,Russian and Spanish.
4.Prompt delivery,within 15 days,operate video for installation.
5.Plasma torch with auto THC.
Technical specifications:
Models | TX-4A |
Input power source | 220/380V±10%V AC 50/60HZ |
CNC controller system | SH-2200H |
Plasma cutting gas | N2,O2,compressed air |
Cutting torch | Plasma& Flame torch |
Cross beam width*guide rail length (mm) | 5000*16000mm |
Effective cutting range(mm) | 400*14000mm (cutting length can be customized increased as per custom requirement) |
Cutting speed mm/min | 50-10000mm/min |
Transmission mode | Circle guide rail |
Flame Cutting thickness (mm) | 6-180mm |
Plasma Cutting thickness(mm) | 1-20mm |
Plasma power | Hypertherm plasma power |
Operation precision | ±0.2mm/m |
Torch height controller | Flame electric,Plasma auto |
Drawing software | AutoCAD |
G.W(KGS) | 2600 KGS |
Gas pressure (Mpa) | Maximum 0.1 |
Motor/driver | Japanese Panasonic Servo motor&Drivers |
- During the first year,all parts are for free,except the consumables and artificially damaged.
- We will supply operation video for installation,we can also solve your problems through email,photos and some communicate software.If you need oversea service,customer should responsible for the air freight,restaurant and meals fees.
- You are also welcomed to our plant for training.We will responsible for the restaurant and meals,the training is for free.
- Softwares are upgrade for free.
- We manufacture many kinds CNC flame and plasma cutting machines.Such as,portable,gantry,table type.Please find more info on our website.We welcome both long time cooperation customers and new customers come to visit our plant,give us your suggestions,we will try our best to satisfy you.
