Professional Desi and Production Full Automatic IGBT Induction Heating Machine of Forging The Various Iron Steel Bar/Rod, Shafts (MF-160KW)
Foshan Sinfor Electro-Machanical Equipment Co., Ltd.- After-sales Service：Within24 Hours Prositive Response
- Warranty：Within 18 Months From The Date of Dclivery Time
- Control Type：CNC
- Customized：Customized
- Condition：New
- Automatic Grade：Automatic
Base Info
- Model NO.：MF-160KW
- Certification：CE
- Working Dimater：10-80mm
- Power：160kw
- Frequency：1-8kHz

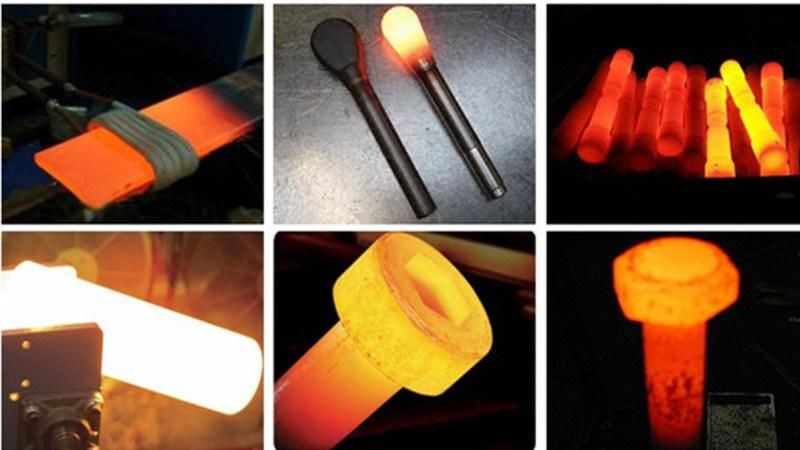

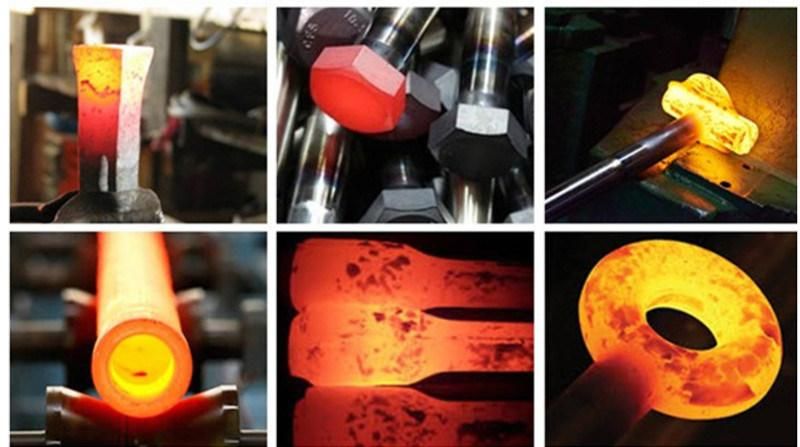

- Application：Hot Forging
- Input Current：240A
- Working Voltage：380V,415V,440V,480V*3phase 50-60Hz
- Model：IGBT
- Design Way：Horizontal Way
- Feeding System：Auto,Semiauto Way
- Transport Package：Wooden Box
- Specification：CE, SGS, ISO
- Trademark：ORD
- Origin：China
- HS Code：8514400090
- Production Capacity：10, 000sets
Description
Type
MF-160KW
Work power
3×380V/415V,440V,480V( 50-60hz)
The range of operating voltage
340V-430V
Output power
160 KW
Working Capacity ( diamater)
10-80MM
Input current
240A
Timing
1-99S
Working Duty
24hours withou stop
Fluctuating frequency
1-8KHZ
The flow rate of cooling water
0.08-0.16 Mpa 28L/Min
Water temperature protection point
40ºC
Duty cycle
100%(40degree room temperature)
Weight:
Main parts: 240KG
Forging Furnace Weight
About 300KG
Size:
Main Parts: 600*750*1450mm
Extensive Parts: 1200*800*1300mm
Advantage of the goods:
1 21 Years experience, good performane and quality of the machine.
2 Compare with the KGPS( SCR) type, can save 20% electricity.
3 Low Frequency will be fast Hot forging Application.
4 CE Certificate of the machine, we exported to USA,Germany, Spain, France, South Korea, South Africa, Malaysia, Indonesia, India, Gree, Australia, Austria, Sri Lanka, Canada, Poland, Norway, Italy, Thailand and so on
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.
In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
