• Item：High Carbon Wire Rod Rolling
• Input：Scrap or Billet
• Output：Wire Rod, Rebar, Tmt Bar
• Color：According to Customer′s Request
• After Sale Service：Supply
• Transport Package：Seaworthy Packing or as Customer′s Request
• Specification：SGS; ISO
• Trademark：HangJI
• Origin：Shaanxi, China
• HS Code：8455219000
• Production Capacity：20 Sets Per Year

Basic Info.

Item High Carbon Wire Rod Rolling Input Scrap or Billet Output Wire Rod, Rebar, Tmt Bar Color According to Customer′s Request After Sale Service Supply Transport Package Seaworthy Packing or as Customer′s Request Specification SGS; ISO Trademark HangJI Origin Shaanxi, China HS Code 8455219000 Production Capacity 20 Sets Per Year

Product Description

Product Description

Product Application of two high rolling mill machine for wire rod,tmt bar making

1. Final product: 5.5-12mm wire rod, 8-32mm rebar, 40-120mm round bar,strip steel etc;
2. Raw material: steel scrap or billet
(billet section size:60*60mm,80*80mm,100*100mm,120*120mm,130*130mm,150*150mm,180*180mm etc;
length: 3m,6m or 12m )
3. Annual capacity: 50,000T/Y; 100,000T/Y; 150,000T/Y;  200,000T/Y;   300,000T/Y; 500,000T/Y;  800,000T/Y etc.
4. Steel type:Low carbon steel, middle carbon steel, high carbon steel,quality carbon structural steel, alloy steel, cold heading steel ,welding steel,titanium alloy,tool steel etc.

Process Flow:

Scrap to rebar:
Scrap → Smelting furnace → CCM(Casting) → induction furnace → roughing  mill machines → intermediate rolling mill machines → finishing rolling mills  → shear  →  cooling → sizing →collecting → packing → rebar storage;

Billet to rebar/wire rod:
Steel billets → reheating furnace → roughing mill machines → intermediate rolling mill machines → pre-finishing mills  → shear → cooling → sizing →collecting → packing → rebar storage;

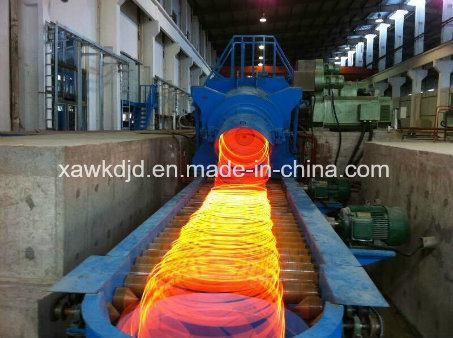

(Pre-finishing mills → shears → wire rod block mills → pinch roll and laying head  → coil cooling conveyor → coil collection station  → PF line  → packing → wire rod storage )



Main Features:
1) Complete continuous rolling,control rolling,control cooling rolling process setting.
2) Adopting advanced world famous brand components in machine key parts ,electric parts and operation parts.
3) The rolling process is smooth,finished products have high precision and quality with high production yield.
4) Running in a high automatization and intellectualization,save manpower.
5) Comprehensive service for equipment supply, layout design, after-sales installation and commissioning services.


Detailed Images:

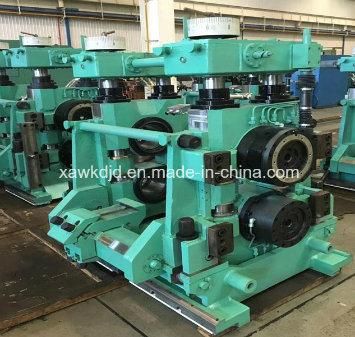

Roughing/intermediate angle steel hot rolling mill

Name:Housingless Mill "short stress  path"
Brand:Hangji
Original: China
Feature:
-- Long roll lifetime.
-- The roll gap neutrality better and easy to operate.
-- Fast roll change, high automation efficiency etc.
-- Short stress line model much better for wire rod
   and bar production.

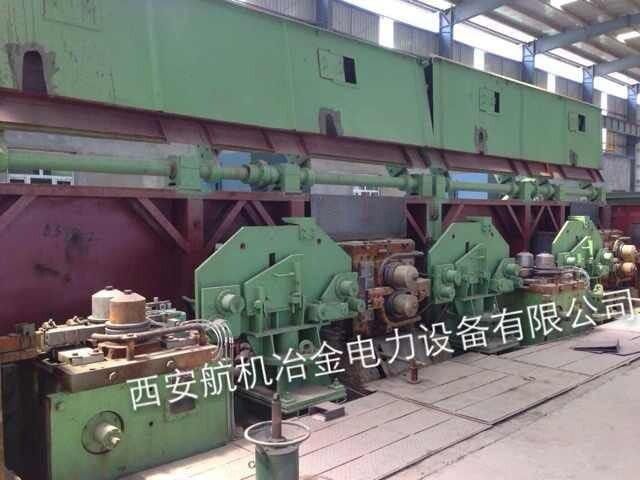

                                           Pre-finishing mill/Modular rolling mills with H-V rrangement
                                           Name: Modular rolling mills with H-V arrangement
                                           Brand: Hangji
                                           Original:China
Feature:
-- The roller gap is adjusted by using the eccentric locking collar, by adjusting the lead screw and nut , the eccentric locking collar will spin and then drive the roller shaft to move symmetrically, in so to achieve the adjustment of roller shaft gap. The best advantage of this adjustment method is that the central line will be kept unchanged.
-- By using the thrust bearing that fixed at the end of the roller shaft, we can effectively prevent the axial shift of the roller shaft, in so to ensure size accuracy of the product.
-- The size and structure of the roller box for horizontal framework and vertical framework are the same, all the parts are interchangeable.
-- The power transmission and speed control are conducted by a pair of spiral bevel gears in the transmission box, the reducer is omitted from the transmission system of the vertical rolling mill, so that the whole equipment is lighter and smaller.
-- As the horizontal framework is completely symmetrical, it can be rotated 180°, so it can be shared by two production lines that located at its right and left side.
-- Guides device
The entrance of roller box has installed scroll guide and slip guide, the exit of roller box just has slip guide, slip guide is lubricated by special lubrication device.

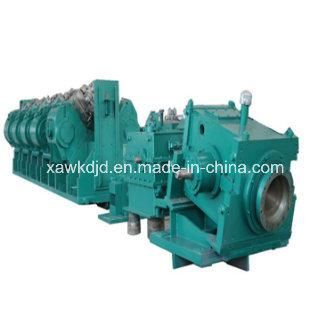

Wire rod block mill/monoblock
Name:Top cross 45 ° no twist heavy duty block mill train
Brand:Hangji
Original: China
Feature:
-- High load capacity
-- Low maintenance oil film bearing design
-- Multi-groove rolls for maximum roll utilization
-- Universal stand design allows interchangeability from one stand position to another
-- Interlocks with mill controls


Finishing mill(wire rod block mill/monoblock)
Name: Top cross 45 ° no twist heavy duty block mill train
Brand: Hangji
Modle: 90m
Original: China
Feature:
-- Unmatched production levels
-- Improved laying pattern and coil package
-- Minimized vibration and downtime
-- Patented technology
-- Electric linear actuator replaces hydraulic lines
-- Retrofits available for existing High Speed Laying Heads


Our Company

Professional Manufacturer and Service Solutions Provider For high-speed wire rod /rebar production Line
Xi'an WeiKeduo Electrical and Mechanical Equipment Co., Ltd. with over 20 years experience in metallurgical industry, commits to high quality rolling process design and hot angle steel hot rolling mill manufacturing for  wire rod, bar,rebar, tmt bar and other special steel production line,especially good at high-speed line design,as well,comprehensive installation guidance service.
As a high-tech enterprise with ISO9001 certification & EU, BV certification, "Hangji" brand is well known in China and overseas, with more than 10 patents for steel rolling mahines, Xi'an weikeduo has the steel Bar and Wire rod Research Center in Xi'an with a complete R & D, production and after-sales service system





Our Service

Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* Visiting our Factory.


After-Sales Service:
* Training how to instal the machine, training how to use the machine and commissioning.
* Engineers available to service machinery overseas.
