• Model NO.：5025
• Specification：3x2.5x1.8
• Trademark：GooDa
• Origin：Dongguan
• HS Code：84596190
• Production Capacity：600

Basic Info.

Model NO. 5025 Specification 3x2.5x1.8 Trademark GooDa Origin Dongguan HS Code 84596190 Production Capacity 600

Product Description



QUALITY TOOLS
PREREQUISITE FOR ANY SUCCESSFUL PRODUCTION

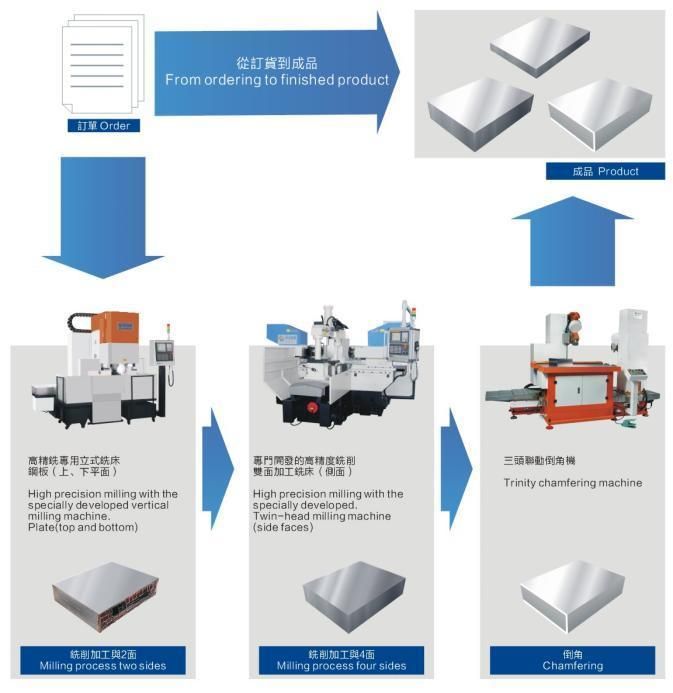

Finish Plate 6 Sides Solution System
Twin headed milling machines of the TH series


Complete Solution for two surface and four sides of finish plate Manufacturing
The GOODA system solution provides a Maximum Productivity
and Quality.


Double-pallet CNC Plate Milling Machine
Model VM-5025

Double pallet exchange
EDM blocks batch milling
Excellent surface finish
Instead of grinding
Milling with the VM-5025
The VM-5025 has a milling head with a size of 250mm. This enables boards with a width of up to 250 mm are milled in a single operation. On the material surface are accordingly no transitions or stages available.

Magnetic chuck System
Our patented double switch plane electromagnetic clamper system clamps the workpiece tightly, and restrains the movement of the workpiece during the rotation of the worktable.


NAME	VERTICAL MILLING	VERTICAL MILLING	DOUBLE COLUMN
Model No.:	VM-5025	VM-8015	VM-1625
CUTTING CAPACITY   (W X L X H)	Max. 250 x 500 x 250 mm Min. 10 x 80 x 80 mm	Max. 350 x 800 x 1500 mm Min. 10 x 50 x 50 mm	Max. 450 x 1600 x 2500 mm Min. 10 x 80 x 80 mm
WORK LOAD CAPACITY	1200 kg	4000 kg	13000 kg
DIMENSIONS  (W X L X H) :	3000 x 2800 x 2200 mm	4600 x 2600 x 2500 mm	6600 x 3800 x 3200 mm

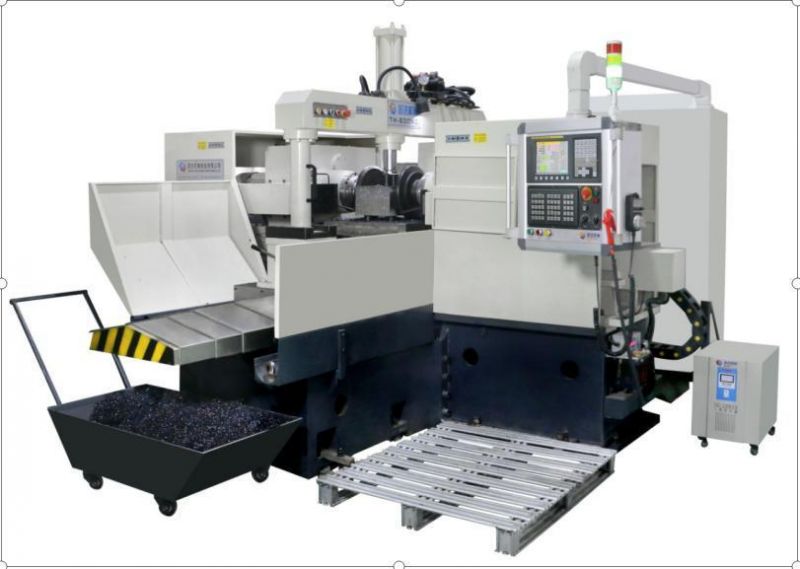

Twin Head CNC Milling Machine

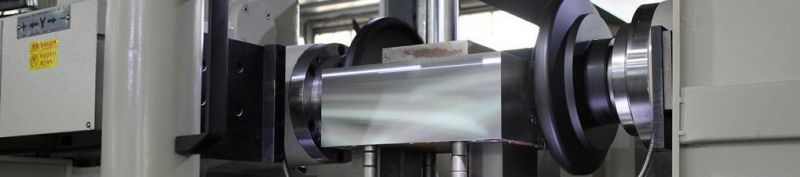

Double side milling machines of the TH series

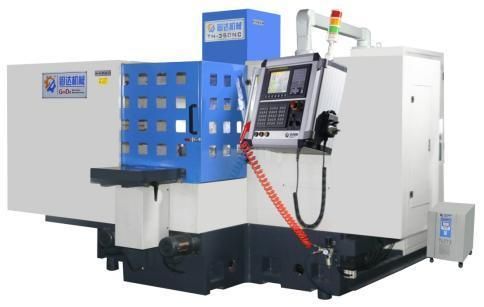

Model TH-350NC
 High Accuracy
High Productive
High precision




YOUR BENEFITS



High Stable bridge construction The highly stable bridge structure has the TH-Series  about a high efficiency and precision.	Sturdy guides The +-shaped machine bed allows a free overhang workpiece machining with the utmost accuracy. The ball screws on all axes are an additional
Guarantees optimal results Different table sizes 6 models of TH Series fits every need of 300 x 300 mm up to 1200 x 600 mm.	Control & Software Improved operation by the revised FANUC CNC Through the use of GOODA MACHINERY NC and cutting skills are not needed



Model No.:	TH-350NC	TH-520NC	TH-600NC
CUTTING CAPACITY (W X L X H)	Max. 350 x 350 x 145 mm Min. 20 x 20 x 20 mm	Max. 520 x 520 x 200 mm Min. 50 x 50 x 20 mm	Max. 650 x 650 x 300 mm Min. 80 x 80 x 20 mm
WORK LOAD CAPACITY	250 kg	500 kg	1200 kg
DIMENSIONS(W X L X H) :	2800 x 2900 x 2200 mm	3100 x 3200 x 2200 mm	3800 x 3800 x 2500 mm



Model No.:	TH-800NC	TH-1000NC	TH-1200NC
CUTTING CAPACITY (W X L X H)	Max. 800 x 800 x 300 mm Min. 220 x 220 x 20 mm	Max.1000x1000x300 mm Min. 300 x 300 x 20 mm	Max. 1200x 1200 x 445 mm Min. 330 x 330 x 20 mm
WORK LOAD CAPACITY	2500 kg	2600 kg	4000 kg
DIMENSIONS(W X L X H) :	4000 x 4000 x 2500 mm	4100 x 4200 x 2500 mm	4200 x 4500 x 2500 mm
