60mm Flange Thickness Hydraulic Automatic Mild Steel H Beam Straightening Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Video Instruction
- Type：H Beam Flange Straightening Machine
- Usage：H Beam Flange
- Voltage：380V-440V
- Automatic Grade：Automatic
- Principle：Deformation After H Beam Welding
Base Info
- Model NO.：JZJ-60
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Function：Straightening for H Beam Flange Plate
- Straightening Mode：Hydraulic
- Max Flange Thickness：60mm
- H Beam Material：Q345,Q235
- Power：Customized
- Suitable for H Beam Length：12m
- Flange Width：200-1000mm
- Input Roller Length：9m
- Output Roller Length：9m
- Colour：Customized
- Roller Material：35CrMo
- Hydraulic Station：1 Set
- Roller Hardness：HRC50-55
- Straightening Wheel Speed：≥8.9m,Min
- Delivery：45 Days
- Transport Package：Nude
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8462291000
Description
With many years of industry experience in H-beam production line equipment and automatic welding equipment, we Wuxi Lemar Machinery Equipments Co.,Ltd has successfully become a trustworthy CNC plasma cutting machine, H-beam gantry welding machine, automatic centering and assembling machine, hydraulic straightening machine, face milling, and longitudinal seam Manufacturer and Trader of Welding Machines, Welding Roller Rotators, Welding Positioners, Straight Seam Welding Machines.
The machines and equipment we offer are highly appreciated for their long working hours, low maintenance costs and reliable operation.

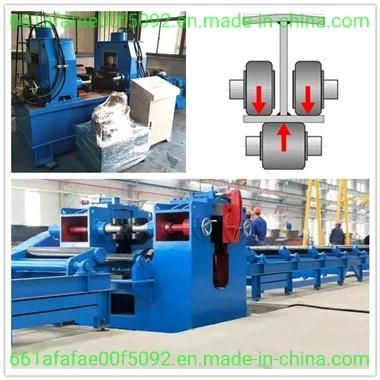

After the H-beam is processed by the CNC plasma flame cutting machine and the gantry-type submerged arc welding machine, the wing plate of the H-beam will be deformed, and a hydraulic or mechanical straightening machine is required to straighten the deformed H-beam.
The flange plate straightening machine specially used for straightening and welding H-beam deformation is divided into mechanical type and hydraulic type.
The hydraulic straightening capacity is large and the degree of automation is high, and it is suitable for flanges with a thickness of more than 40mm.

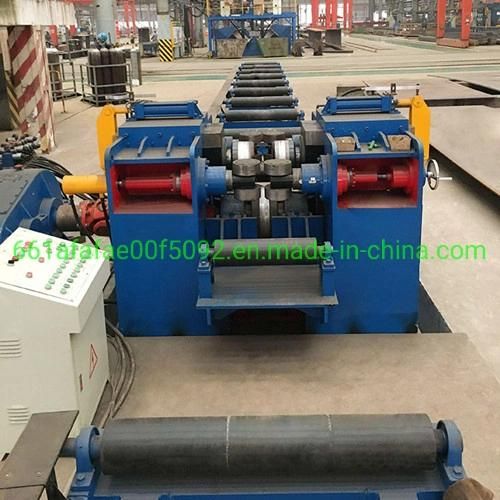

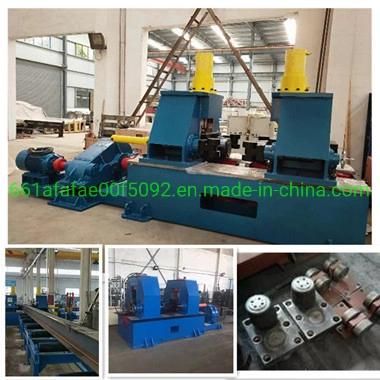

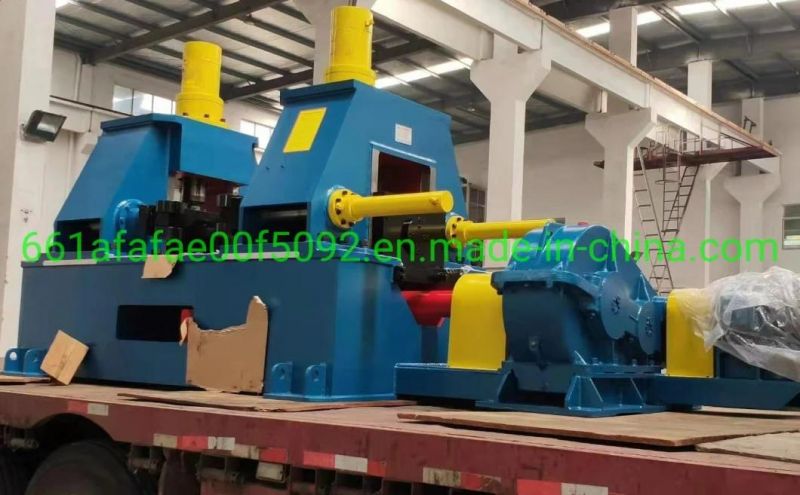

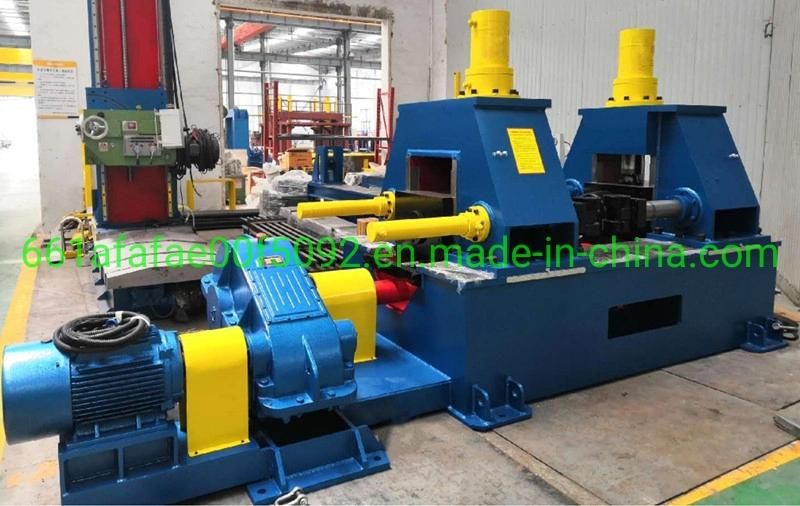

The JZJ-60 H beam flange straightening machine is suitable for straightening H-beam and T-beam with the thickness of the flange plate below 60mm.
Specification:
Main Features
The standard model of our I beam hydraulic H-beam flange straightening machine has the following characteristics:
1. Sturdy all-steel manufacturing, stable structure, good rigidity, long-term use without deformation; straightening rollers and main drive rollers are made of high-quality alloy steel, heat-treated, and have a long service life
2. All straightening rollers are made of high-quality alloy steel (35CrMo) and undergo advanced heat treatment;

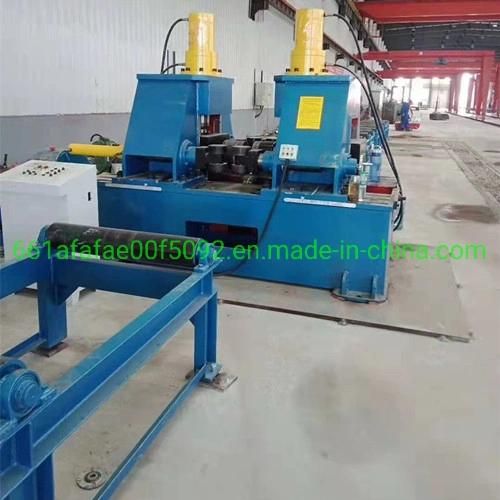

3. Input and output 9m power conveyors (lifting type optional);
4. The H-shaped steel flange plate straightening machine is close to the electric control operation box, which is easy to operate;
5. After welding, the main welding parts are heat treated; before painting, the main welding parts of the T-beam straightening machine are sandblasted;
6. All moving parts have lubrication system;
7. The main electrical components of H beam I beam flange straightener are ABB/Siemens/Japanese brands
FAQ:
1. How to choose hydraulic type and mechanical type for H-beam flange plate straightening machine?
We can customize the H-beam flange plate straightening machine for you according to the size requirements of the H-beam.
Generally, the mechanical H-beam T-beam straightening machine is suitable for the thickness of the flange plate <=40mm, and the hydraulic steel structure straightening machine is suitable for the thickness of the flange plate 40mm~80mm.
2. In addition to the flange plate straightening machine, what other equipment is required for the production of H-beam and box-beam production lines?
The type of equipment and the quantity purchased need to be based on the layout of your company's on-site factory. Before purchasing the machine, we recommend that the customer send us the factory layout plan for design.

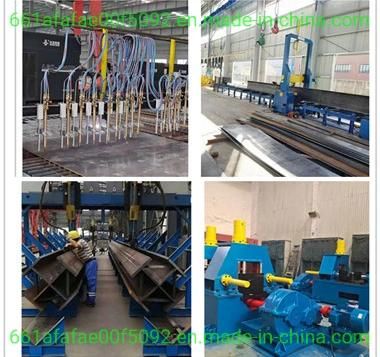

A complete H-beam box beam production line includes:
CNC Plasma Flame cutting machine-Automatic assembly machine with gas shield welder-Gantry type Submerged arc or gas shield welding machine-H beam flange straightener-End face milling machine.
If for Box beam production need Electroslag welding machine, Box beam assembly machine and spot welding machine, etc.
3. How to provide installation service?
Under normal circumstances, we will arrange engineers to go to your factory for on-site installation guidance. But for now, due to the global virus outbreak, we currently offer installation instruction manuals, as well as online video instructions. These installation manuals have been able to ensure that customers can successfully complete the installation and commissioning of the machine
4. How to visit your company?
We can pick you up from Shanghai Pudong International Airport, Hongqiao International Airport or Wuxi Airport. Or Wuxi Railway Station.
5. What should I do if the machine is broken?
The warranty period for our machines is 12 months. If the damaged parts cannot be repaired, we can send new parts to replace the damaged parts, but you need to pay for the courier yourself. After the warranty period, we can negotiate and provide technical support for the entire life cycle of the equipment.
6. Can you be responsible for shipping?
Yes, please tell us the port of destination or address. We have rich experience in transportation. FOB, CIF or EXW will do price calculation according to your needs.
7. Do you provide OEM service?
Of course, we can design equipment based on the structural section data you provide. We are a professional designer and manufacturer of H-beam production line equipment and automatic pipe welding equipment.
